Intake Air Temperature Sensor Connector End View

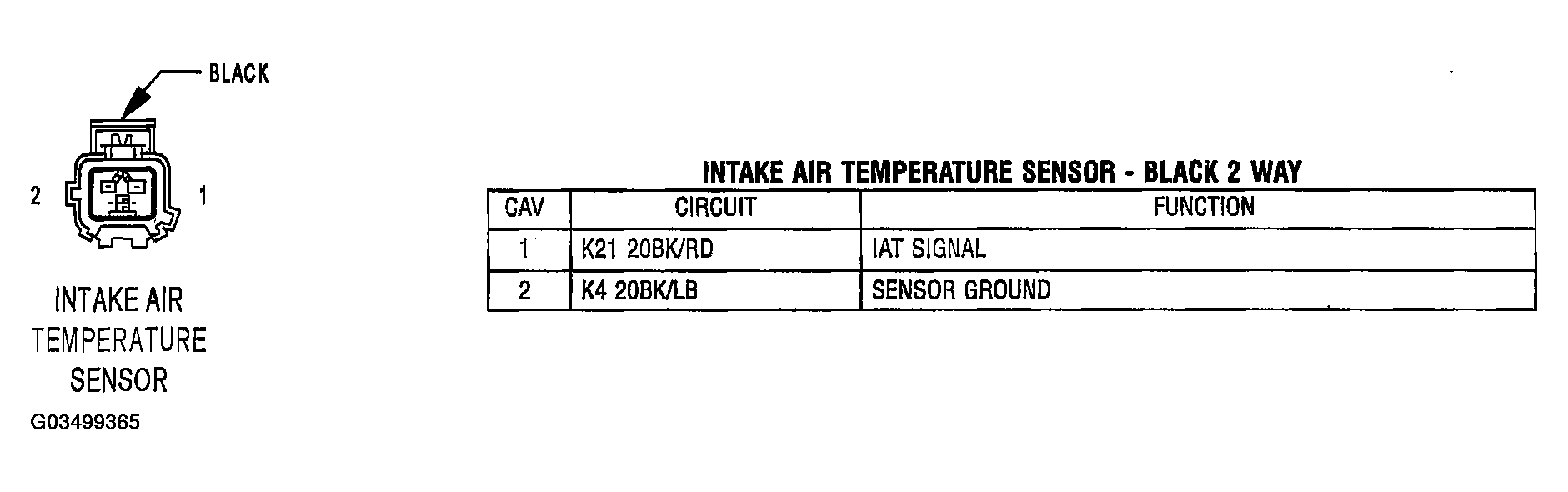

Fig 1: Intake Air Temperature Sensor Connector End View

G03499365

Courtesy of CHRYSLER GROUP, LLC
