Driver Power Mirror (Memory) Connector End View

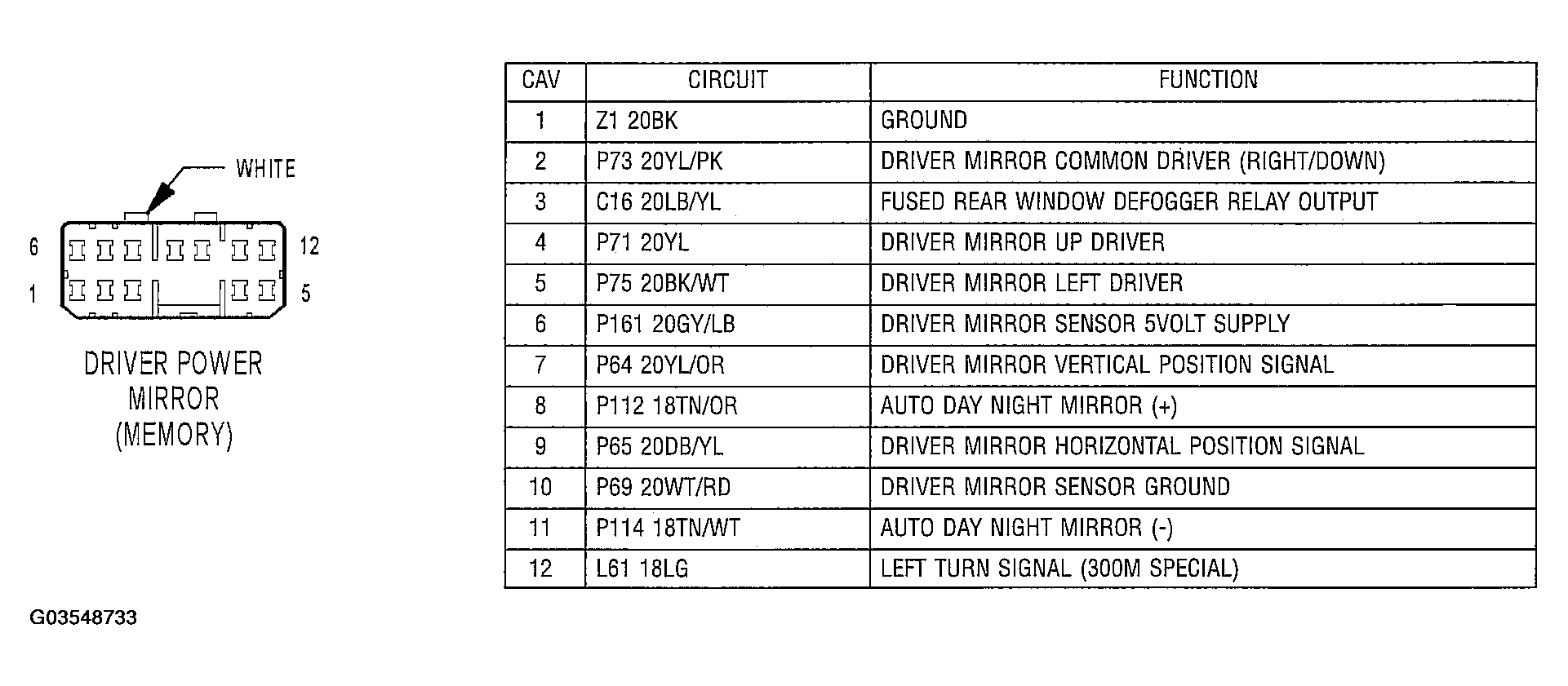

Fig 1: Driver Power Mirror (Memory)

G03548733

Courtesy of CHRYSLER GROUP, LLC
