Brake Lamp Switch Sensor Connector End View
Brake Lamp Switch Sensor Connector End View

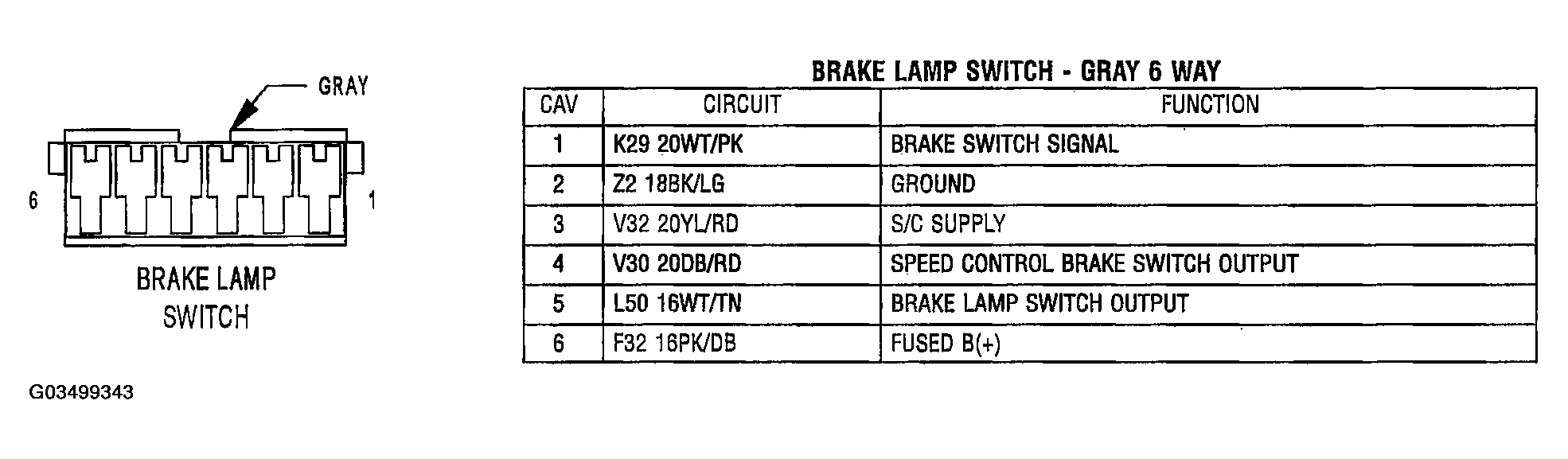

Fig 1: Brake Lamp Switch Sensor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
