Body Control Module C4 Connector End View

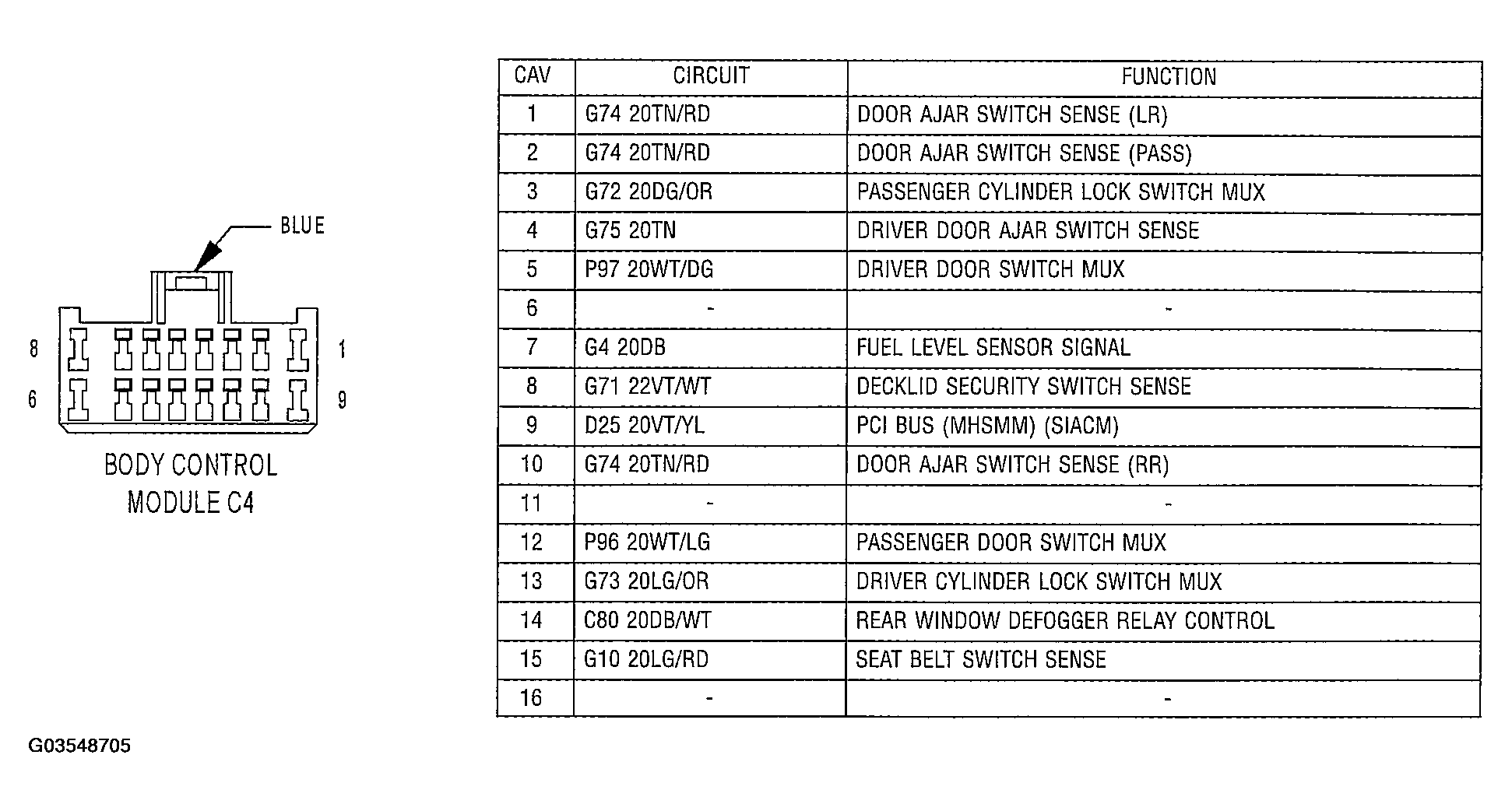

Fig 1: Body Control Module C4

G03548705

Courtesy of CHRYSLER GROUP, LLC
