Blower Motor Power Module (ATC) Connector End View

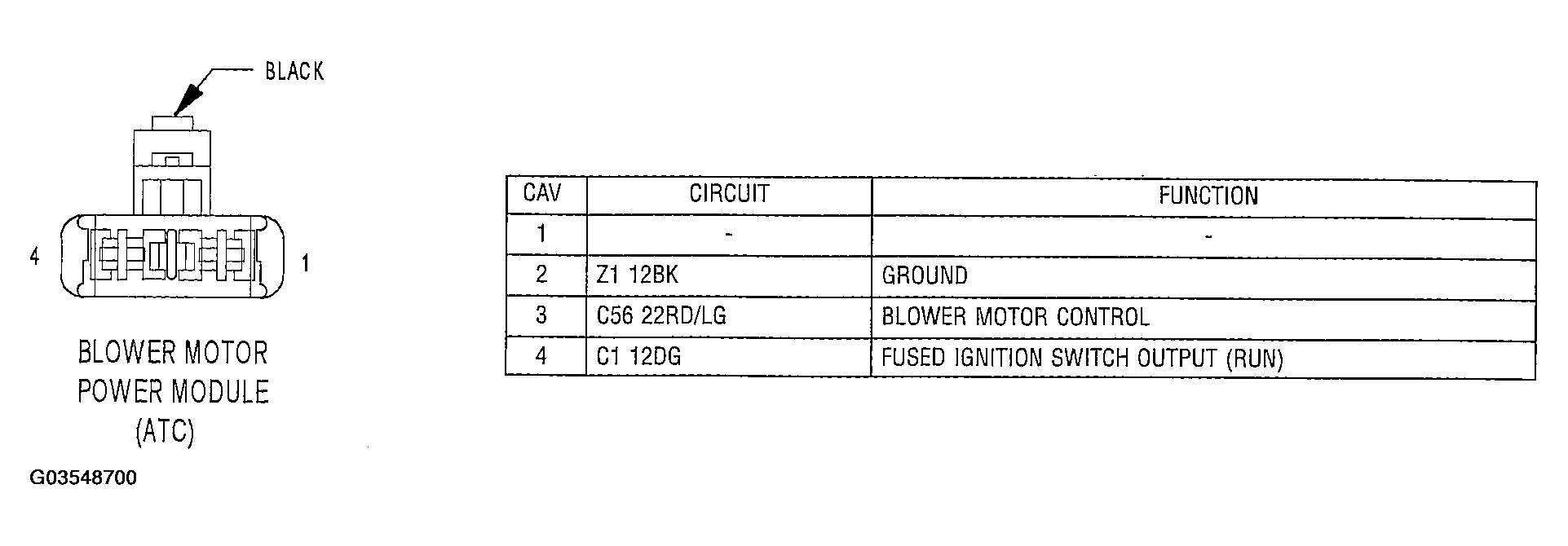

Fig 1: Blower Motor Power Module (ATC)

G03548700

Courtesy of CHRYSLER GROUP, LLC
