Automatic Temperature Control Head Connector End View

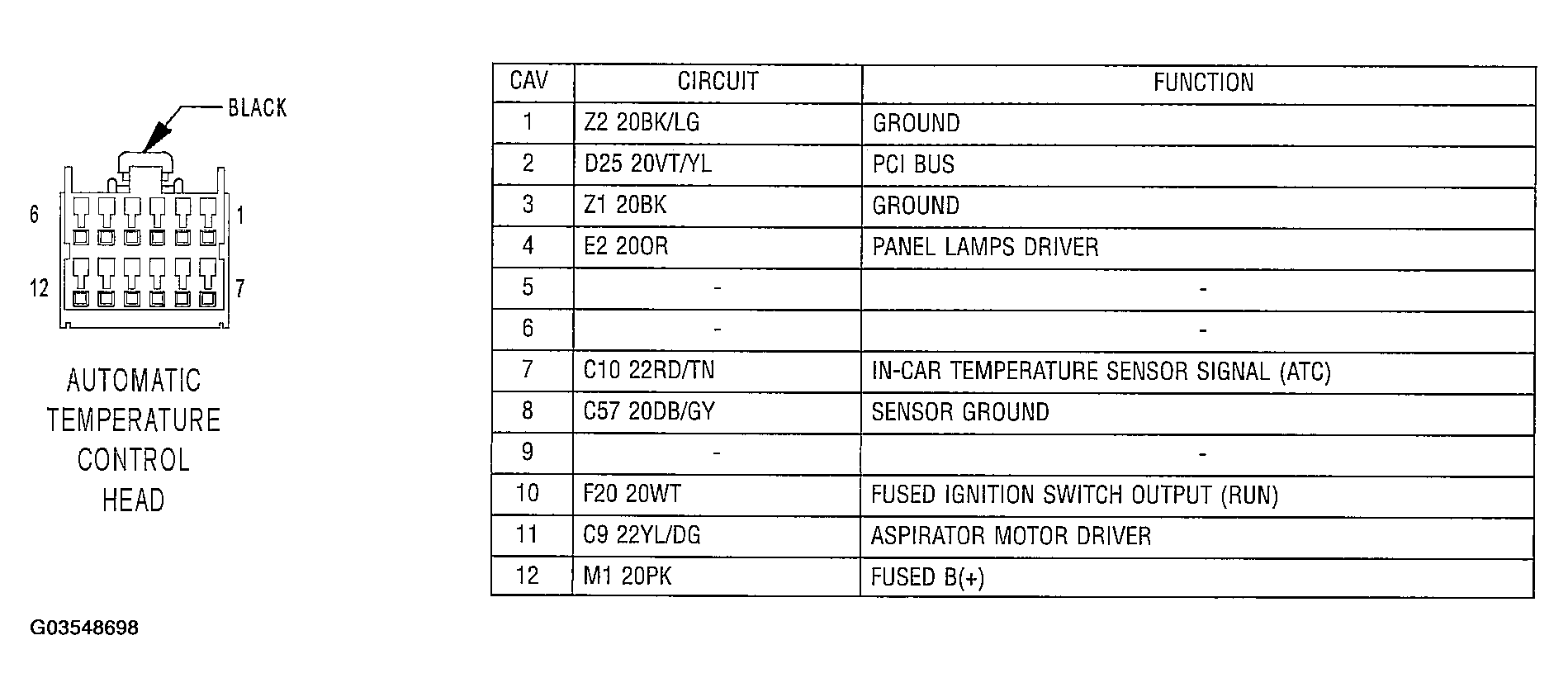

Fig 1: Automatic Temperature Control Head

G03548698

Courtesy of CHRYSLER GROUP, LLC
