Antilock Brake Controller Connector End View

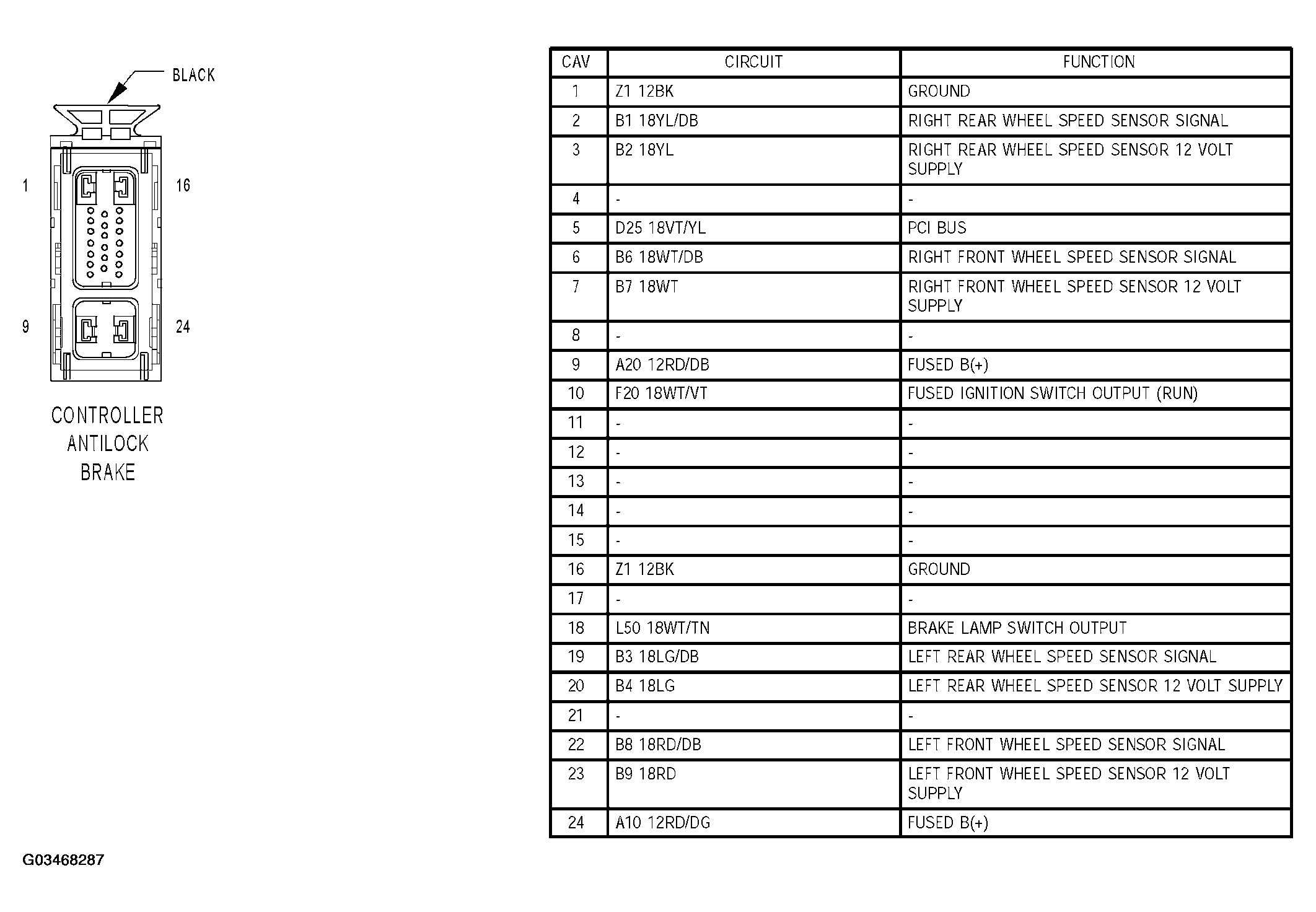

Fig 1: Antilock Brake Controller Connector End View

G03468287

Courtesy of CHRYSLER GROUP, LLC
