Battery System & Charging System: Charging: Specifications: Generator

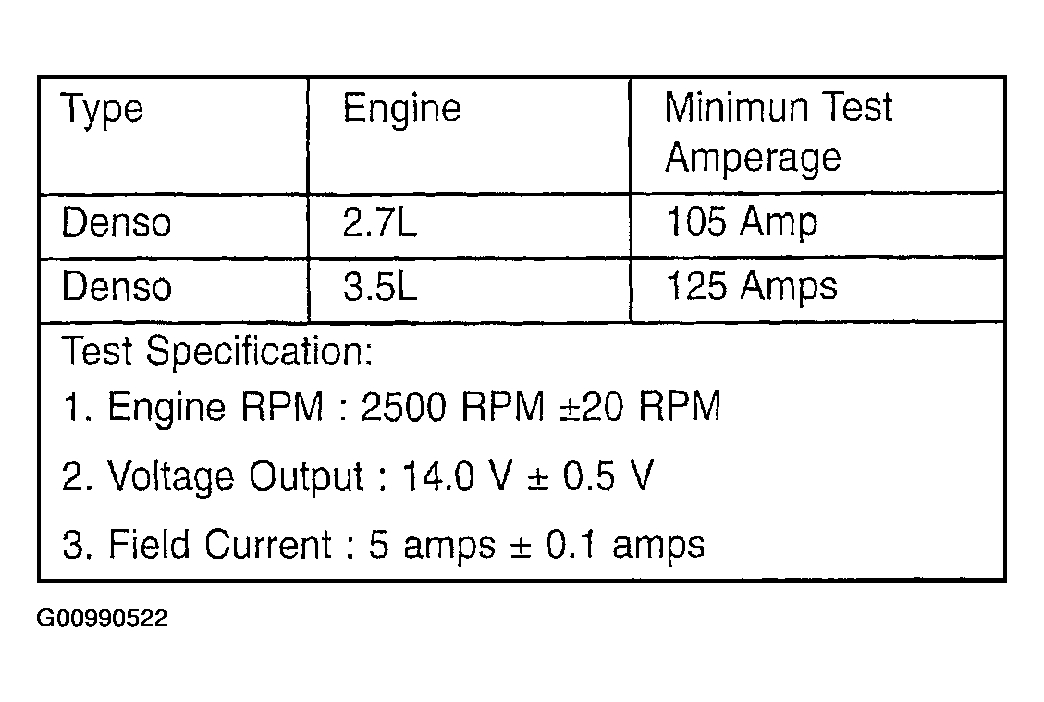

Fig 1: Identifying Generator Specifications

G00990522

Courtesy of DAIMLERCHRYSLER CORP.
