Removal & Installation

  1. Using trim stick, disengage clips holding rear edge of top cover to instrument panel. See Fig 1. Disconnect harness connector from message center. Pull top cover rearward to disengage hooks holding front of top cover to instrument panel. Remove cover.
  2. Remove screws securing Remote Keyless Entry (RKE) module. Disconnect harness connector and remove module. See Figure. To install, reverse removal procedure.

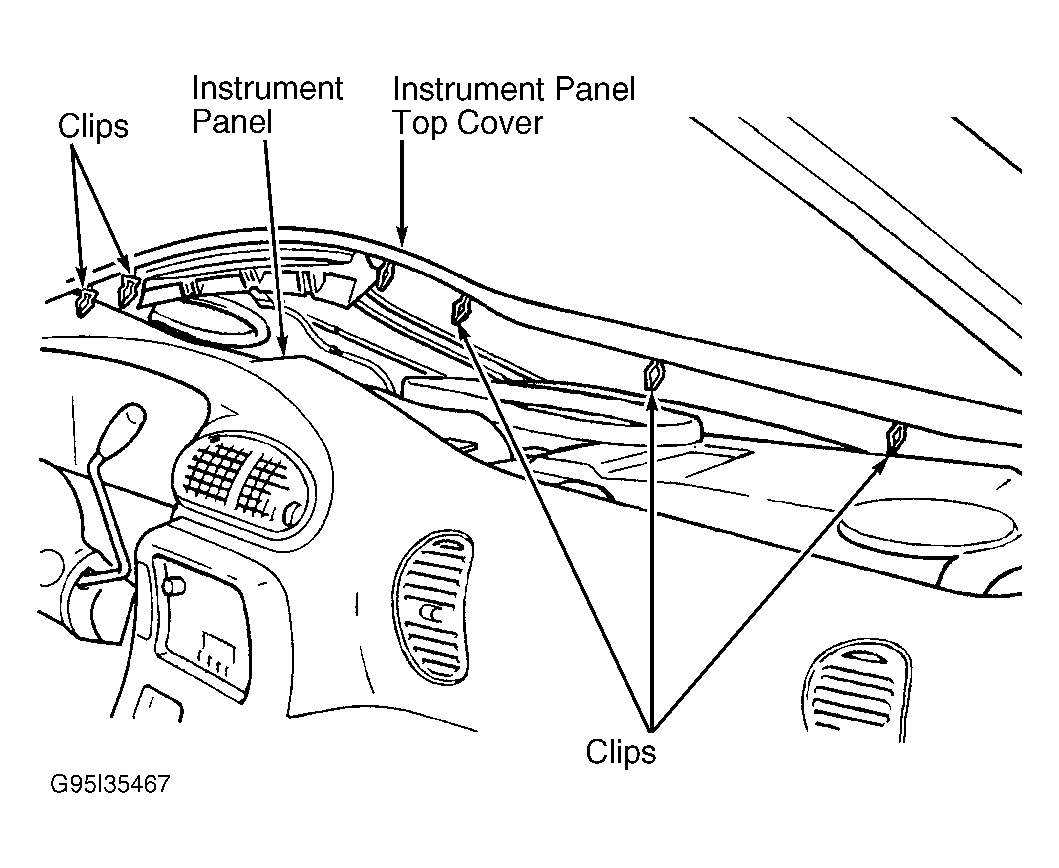

Fig 1: Removing Instrument Panel Top Cover
G95I35467Courtesy of DAIMLERCHRYSLER CORP.
