Front Suspension: Description

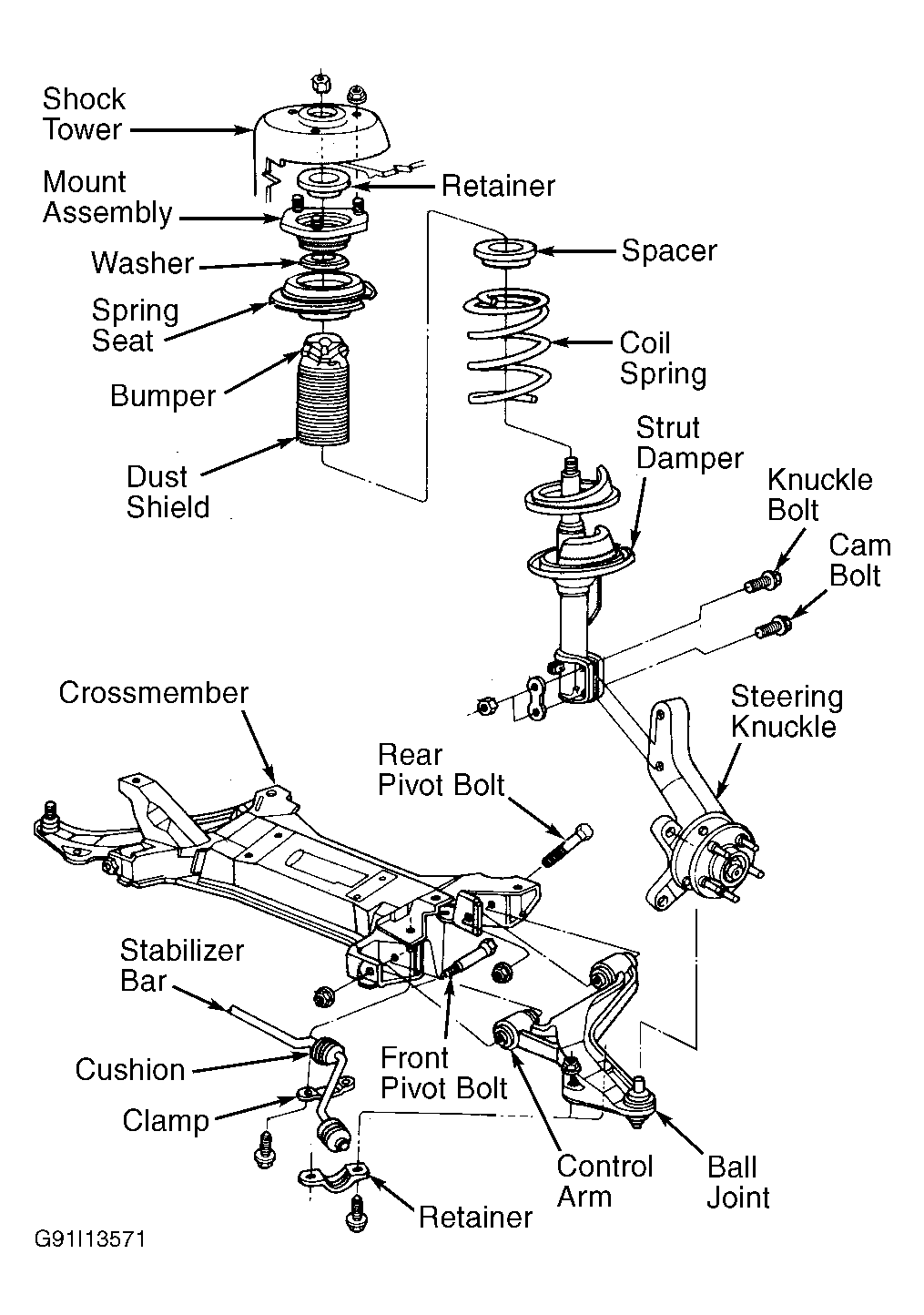

The front suspension is an independent MacPherson strut type. Struts are attached to upper fender reinforcements and steering knuckles. Lower control arms are attached to crossmember through bushings, and to steering knuckles through ball joints. Working through a pivot bearing in upper retainer, upper strut and steering knuckle turn as an assembly during steering maneuvers. See Fig 1 .
