A/C Compressor Failure (24-003-01)

Publication date: 2001-02-16
Reference number: 24-003-01

A/C COMPRESSOR FAILURE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 24-003-01, Date of Issue: February 16, 2001

CHRYSLER:	2001 (RS) Town & Country/Voyager; 2001 (RG) Chrysler Voyager (International Markets)
DODGE:	2001 (RS) Caravan
GROUP:	A/C & Heater

A/C Compressor Failure

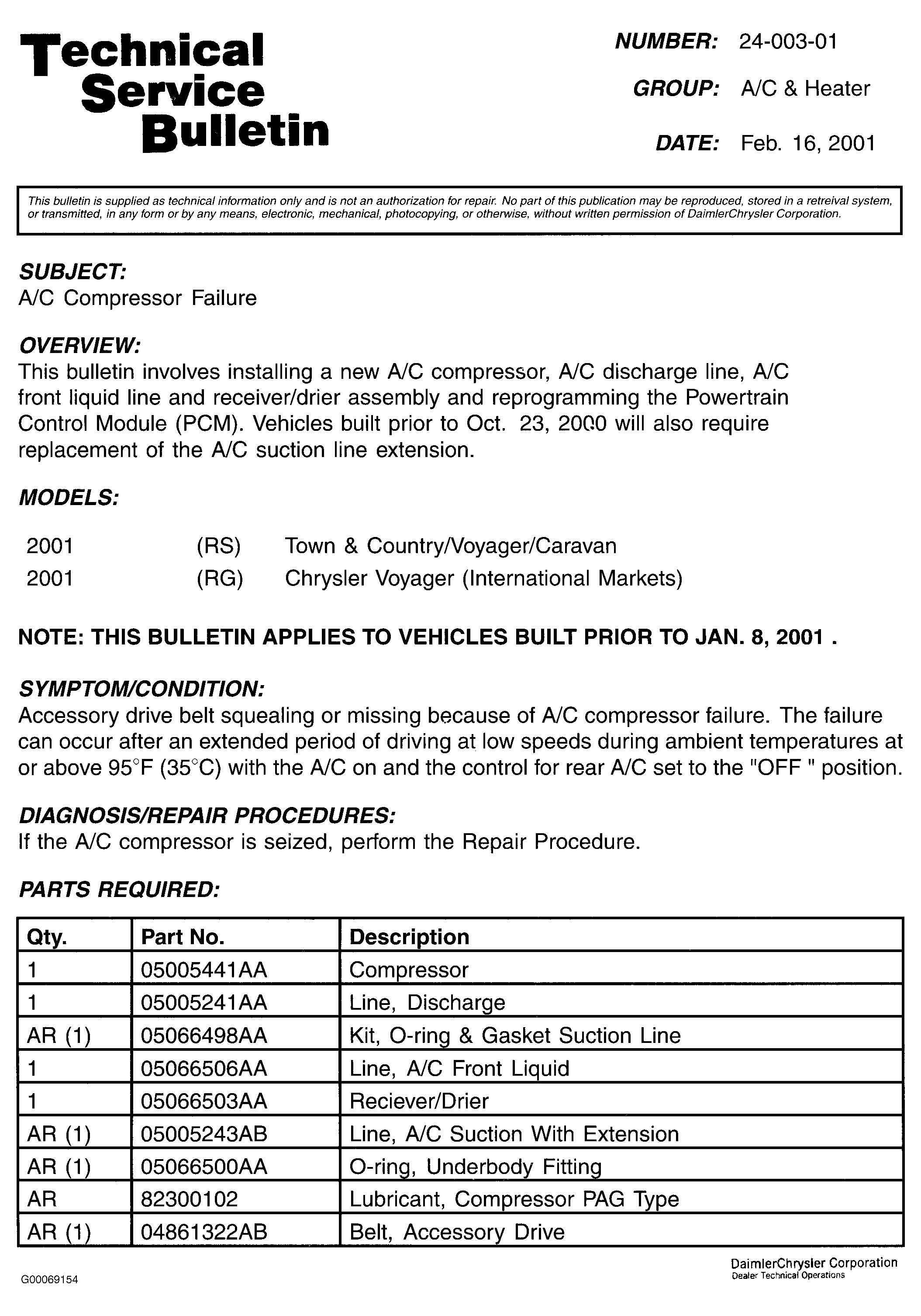

Fig 1: Page 1

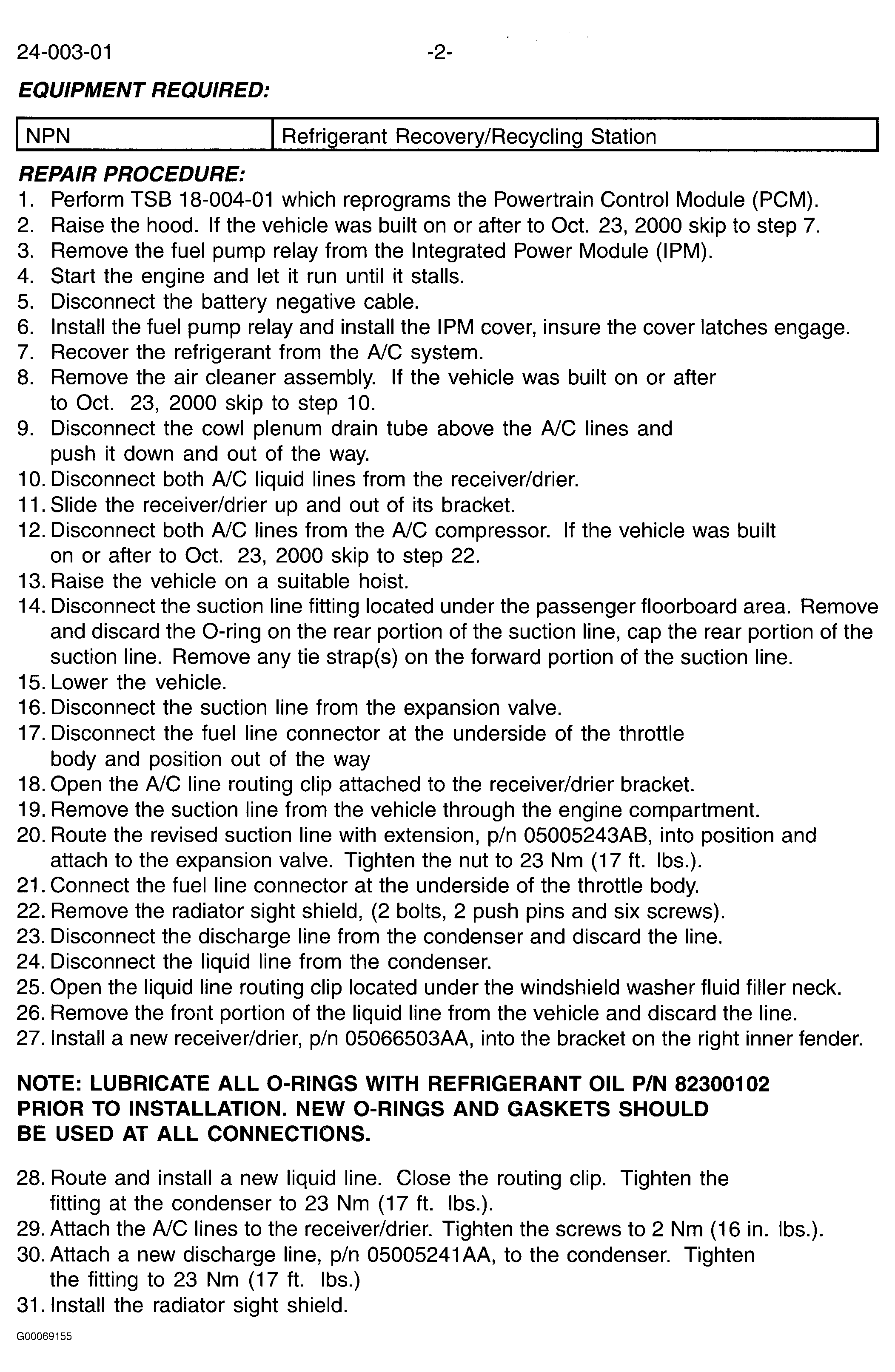

Fig 2: Page 2

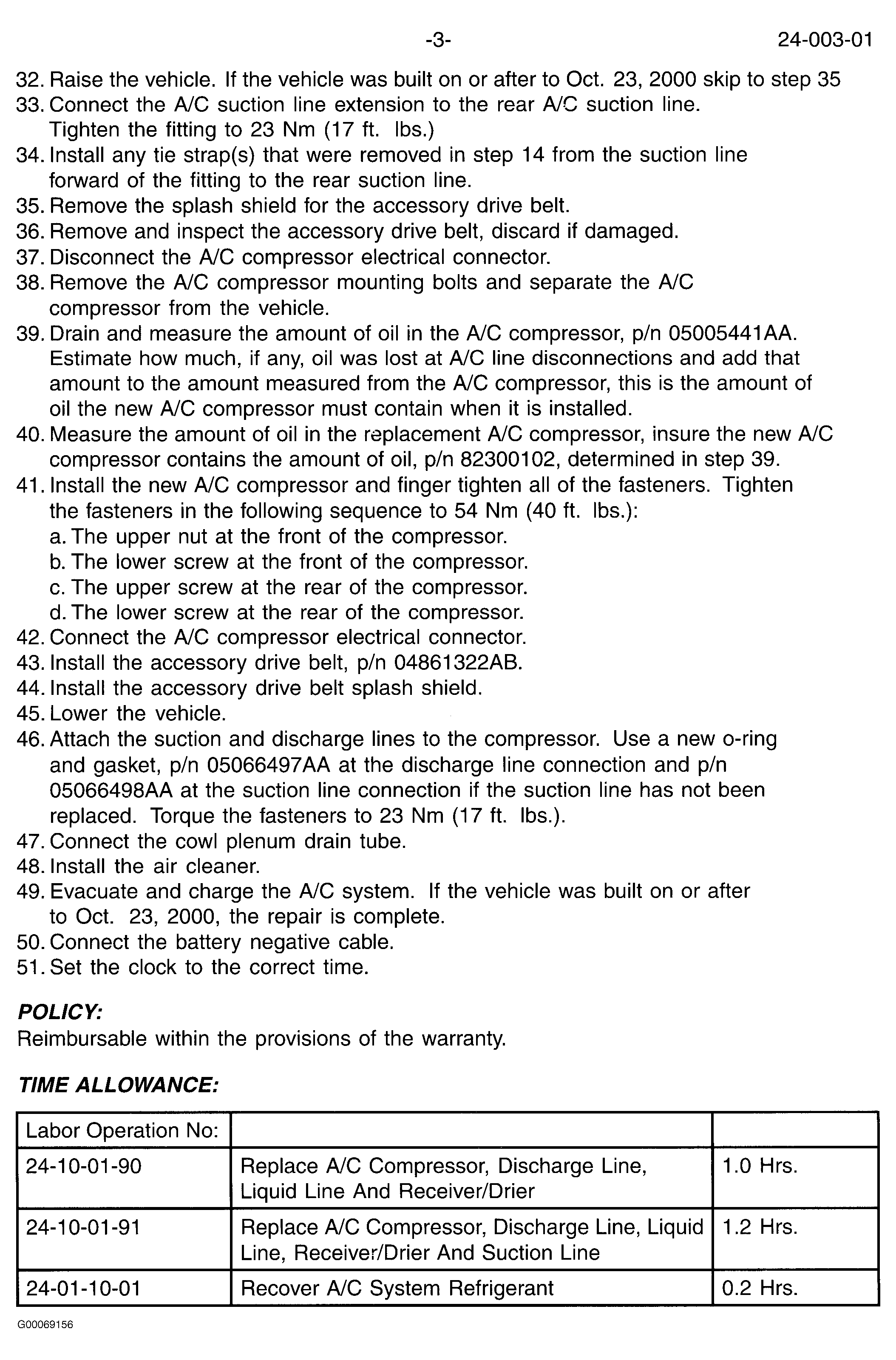

Fig 3: Page 3

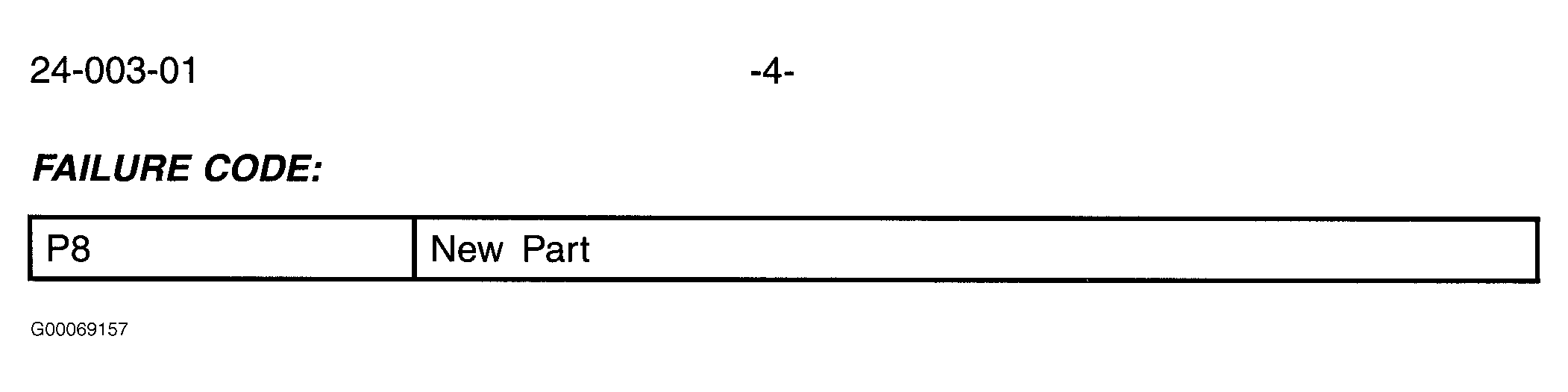

Fig 4: Page 4
