Wiper Module

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2000 Plymouth Voyager, 2000 Plymouth Grand Voyager, 2000 Dodge Grand Caravan, 2000 Dodge Caravan, and 2000 Chrysler Voyager. However, it is still accessible from the selected car via links, so may be relevant.

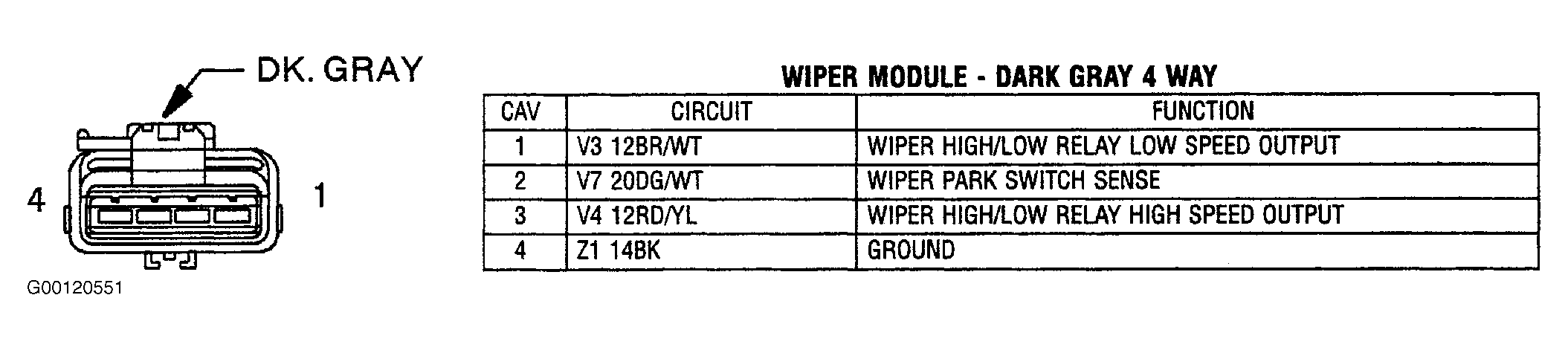

Fig 1: Identifying Wiper Module Terminals & Circuits
G00120551Courtesy of CHRYSLER CORP.
