Multi-Function Switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2000 Plymouth Voyager, 2000 Plymouth Grand Voyager, 2000 Dodge Grand Caravan, 2000 Dodge Caravan, and 2000 Chrysler Voyager. However, it is still accessible from the selected car via links, so may be relevant.
  1. To test the windshield wiper and washer portion of the multi-function switch, remove the multi-function switch. See MULTI-FUNCTION SWITCH  .
  2. Using an ohmmeter, check continuity between switch terminals as shown. See Fig 1 and Fig 2 .

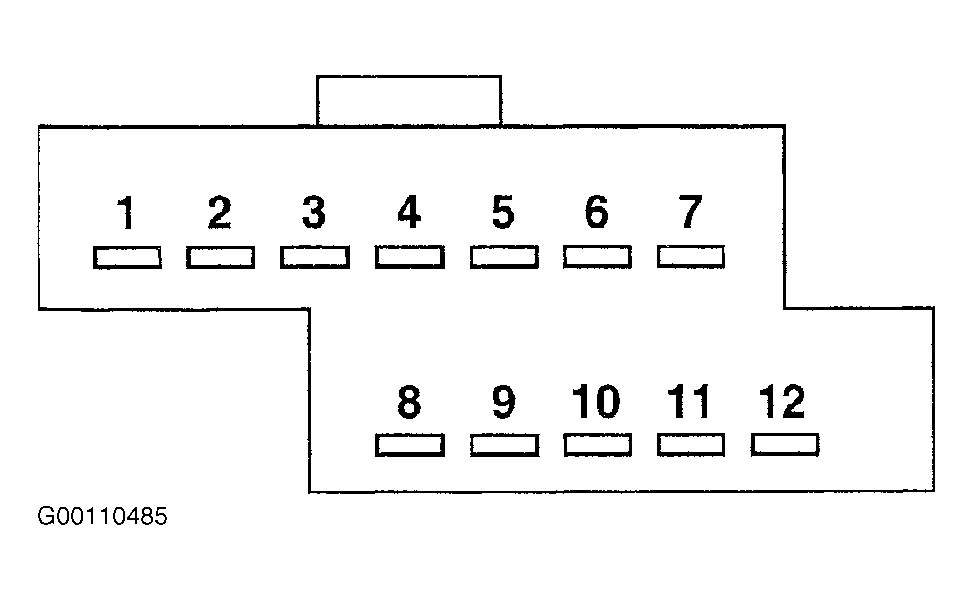

Fig 1: Identifying Windshield Wiper & Washer/Multi-Function Switch Terminals
G00110485Courtesy of CHRYSLER CORP.

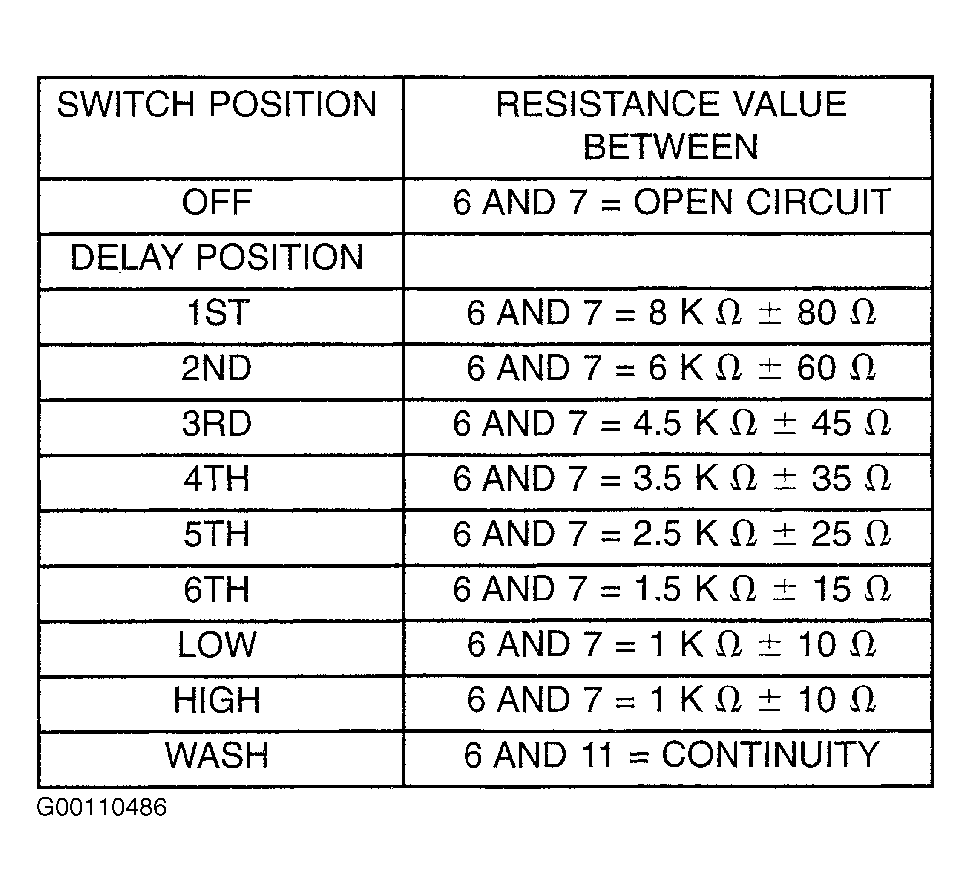

Fig 2: Windshield Wiper & Washer/Multi-Function Switch Resistance Test
G00110486Courtesy of CHRYSLER CORP.
