COMPONENT LOCATIONS

Component	Location
Body Control Module (BCM)	On Junction Block, Behind Left Side Of Dash. See Fig 1 .
Data Link Connector (DLC)	Under Lower Left Edge Of Dash, Near Parking Brake Pedal.
Front Washer Motor	Bottom Of Washer Fluid Bottle.
Front Wiper Switch	On Turn Signal Switch, Left Of Steering Column
Junction Block	Behind Left Side Of Dash. See Fig 1 .
Low Washer Fluid Level Switch	At Bottom Of Washer Fluid Reservoir. See Fig 2 .
Power Distribution Center	In Engine Compartment, Next To Battery. See Fig 3 .
Rear Washer Motor	Bottom Of Washer Fluid Bottle.
Rear Wiper Motor	Center Of Lift Gate. See Fig 5 .
Rear Wiper Switch	Center Of Instrument Panel, In HVAC Switch Panel
Wiper High/Low Relay	In Power Distribution Center
Wiper Module	Left Rear Of Engine Compartment.
Wiper On Relay	In Power Distribution Center

Fig 1: Locating Body Control Module (BCM) & Junction Block

Courtesy of CHRYSLER CORP.

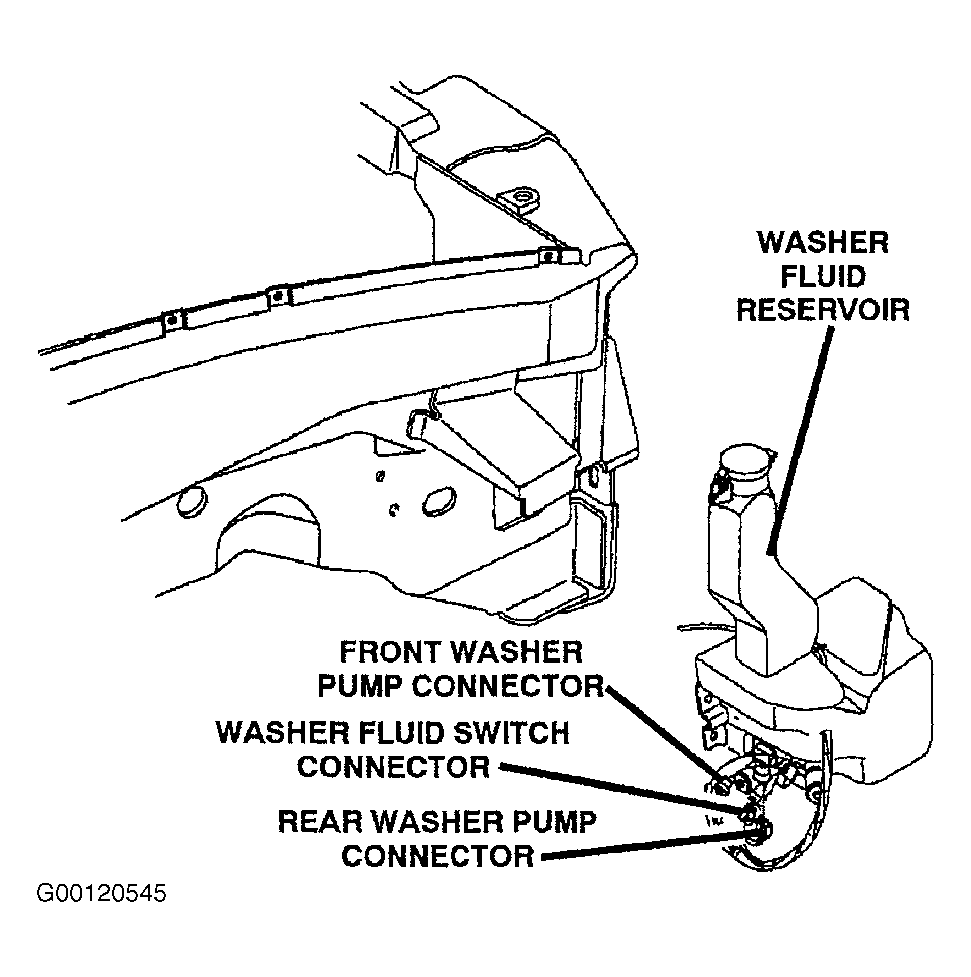

Fig 2: Locating Front Windshield Washer Components

Courtesy of CHRYSLER CORP.

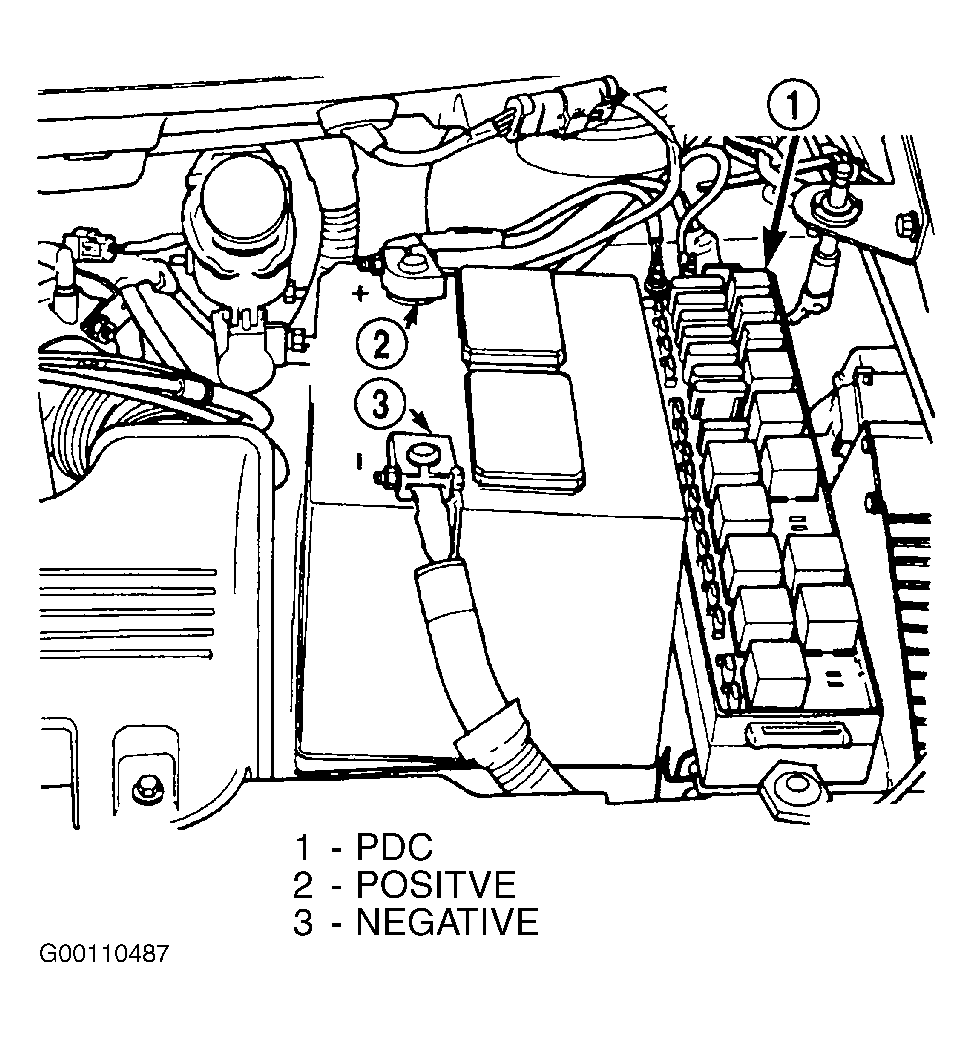

Fig 3: Locating Battery Cables & Power Distribution Center (PDC)

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Power Distribution Center (PDC) Components

Courtesy of DAIMLERCHRYSLER CORP.

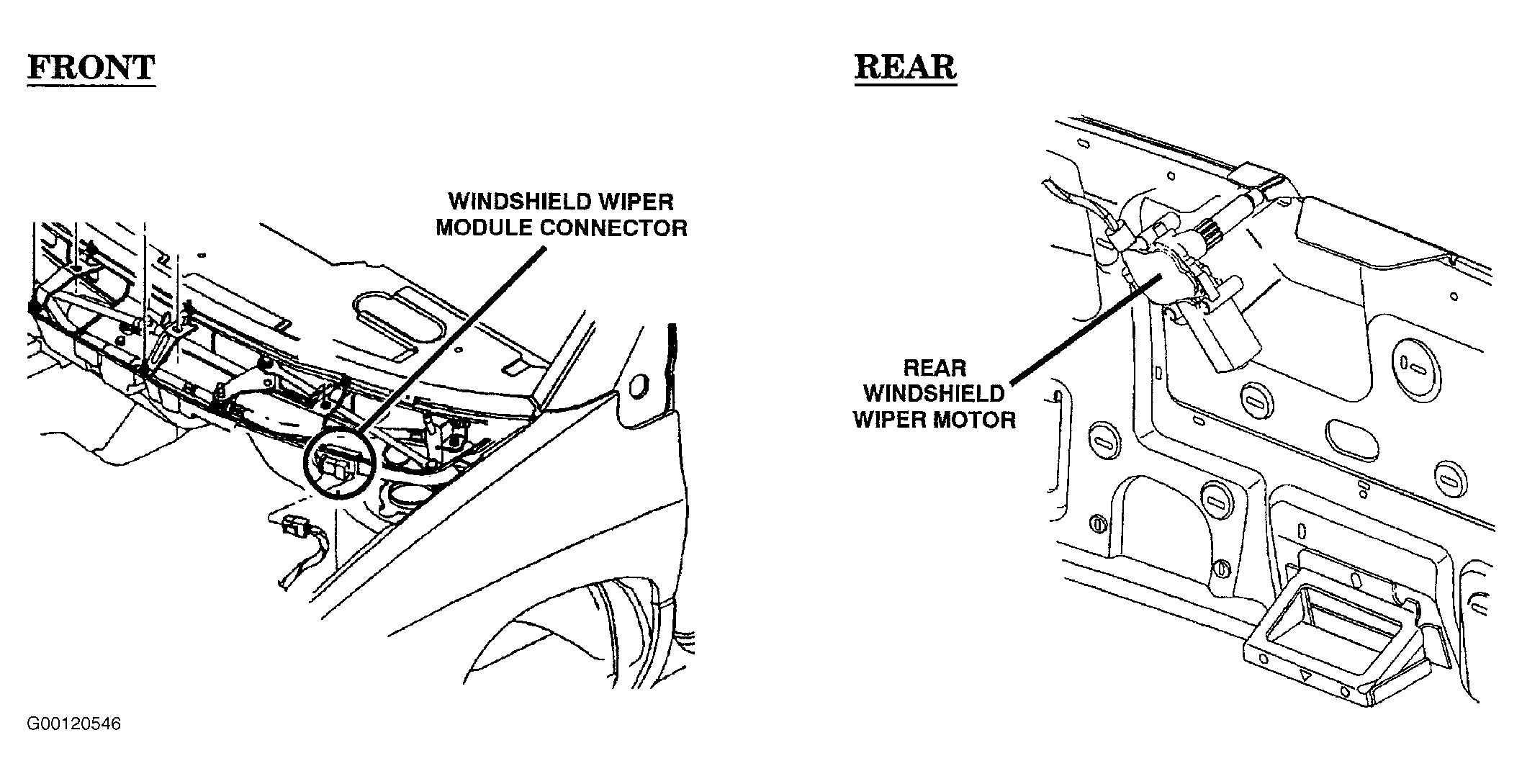

Fig 5: Locating Windshield Wiper Module Connector & Rear Wiper Motor

Courtesy of CHRYSLER CORP.
