Wiper Arm Alignment
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2000 Plymouth Voyager, 2000 Plymouth Grand Voyager, 2000 Dodge Grand Caravan, 2000 Dodge Caravan, and 2000 Chrysler Voyager. However, it is still accessible from the selected car via links, so may be relevant.
- Verify wiper blade element condition and wiper arm spring tension. Run wipers in low speed mode while applying water to the windshield. Observe the wiper blade that is chattering or skipping across the windshield. If the wiper direction reverses, align the wiper arm. The extension bar portion of the wiper arm must be twisted in the proper direction to allow the wiper element to roll over when the direction reverses.
- Place two small adjustable wrenches placed to 50 mm (2") apart on the wiper arm extension rod.

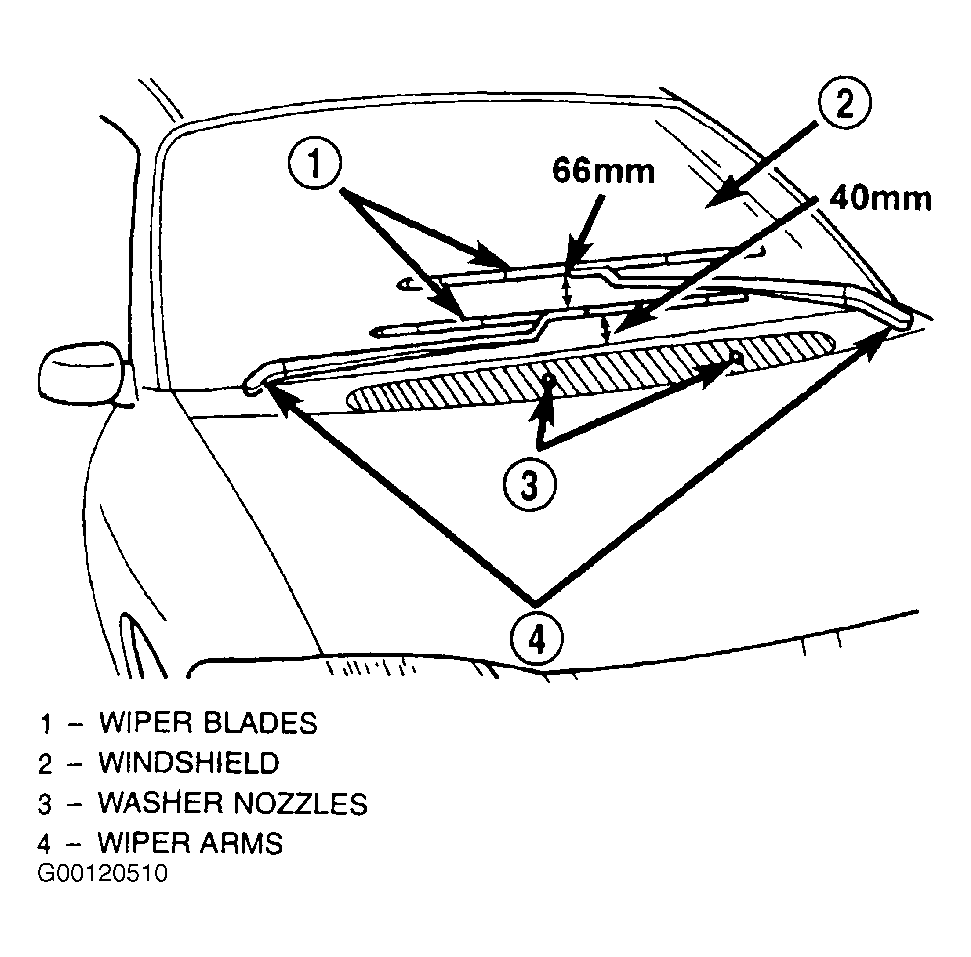

- Twist the extension rod slightly in the opposite direction that the element is laying on the windshield while holding the wrench closest to the pivot stationary. See Fig 1 .
- Repeat Step 1) , and align as necessary until wiper stops chattering and wipes the windshield clear.
