Connector Identification

NOTE: For connector identification, see Fig 1 -Fig 31 .
Fig 1: Identifying Body Control Module C2 & C4 Connector Terminals
G00021044Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 2: Identifying Body Control Module C1 & C3 Connector Terminals
G00021045Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 3: Identifying Compass/Mini-Trip Computer Connector Terminals
G00021048Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 4: Identifying Controller Anti-Lock Brake Connector Terminals
G00021047Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 5: Identifying Data Link Connector Terminals
G95H14289Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 6: Identifying Door Lock Motor/Ajar Switch Connector Terminals
G98B00100Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 7: Identifying Fuel Pump Module Connector Terminals
G00021049Courtesy of DAIMLERCHRYSLER CORPORATION

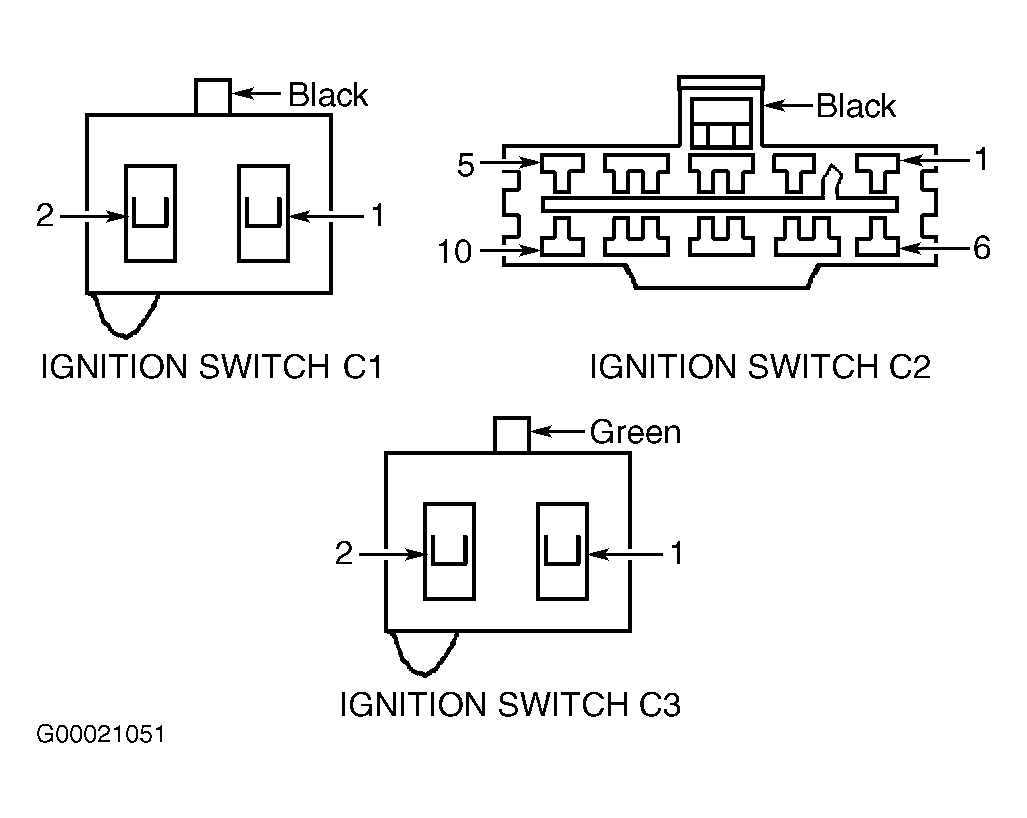

Fig 8: Identifying Ignition Switch Connector Terminals
G00021051Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 9: Identifying Instrument Cluster Connector Terminals
G00021050Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 10: Identifying Junction Block
G00012062Courtesy of DAIMLERCHRYSLER CORPORATION

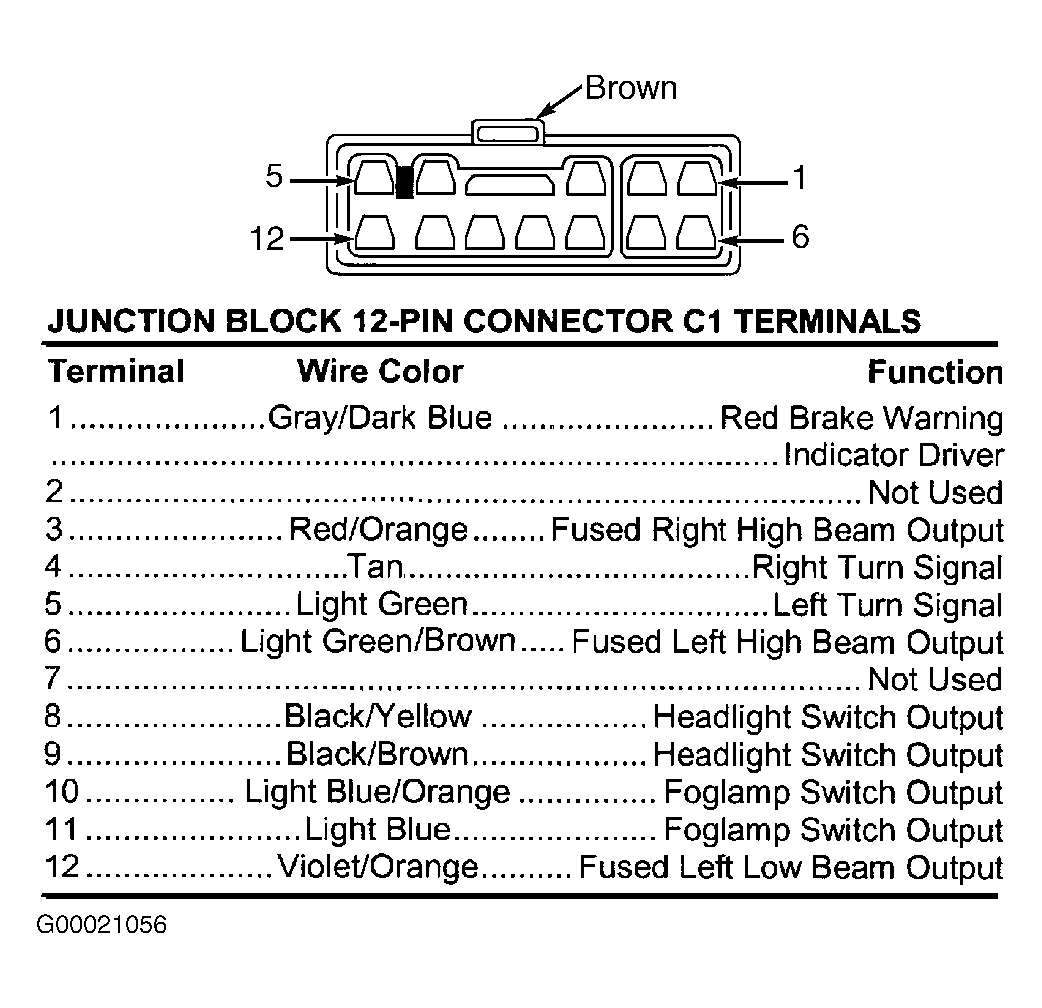

Fig 11: Identifying Junction Block C1 Connector Terminals
G00021056Courtesy of DAIMLERCHRYSLER CORPORATION

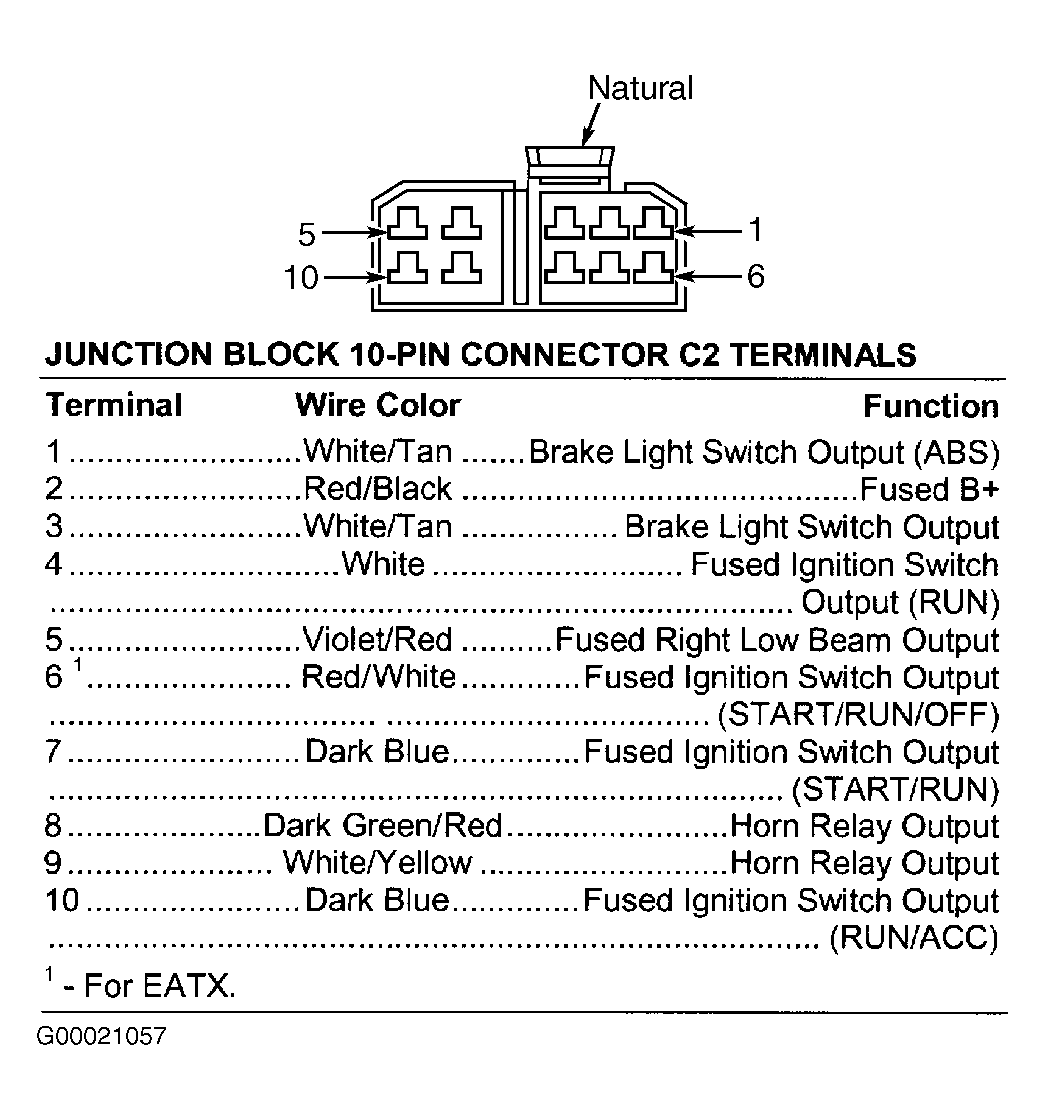

Fig 12: Identifying Junction Block C2 Connector Terminals
G00021057Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 13: Identifying Junction Block C3 Connector Terminals
G00007368Courtesy of DAIMLERCHRYSLER CORPORATION

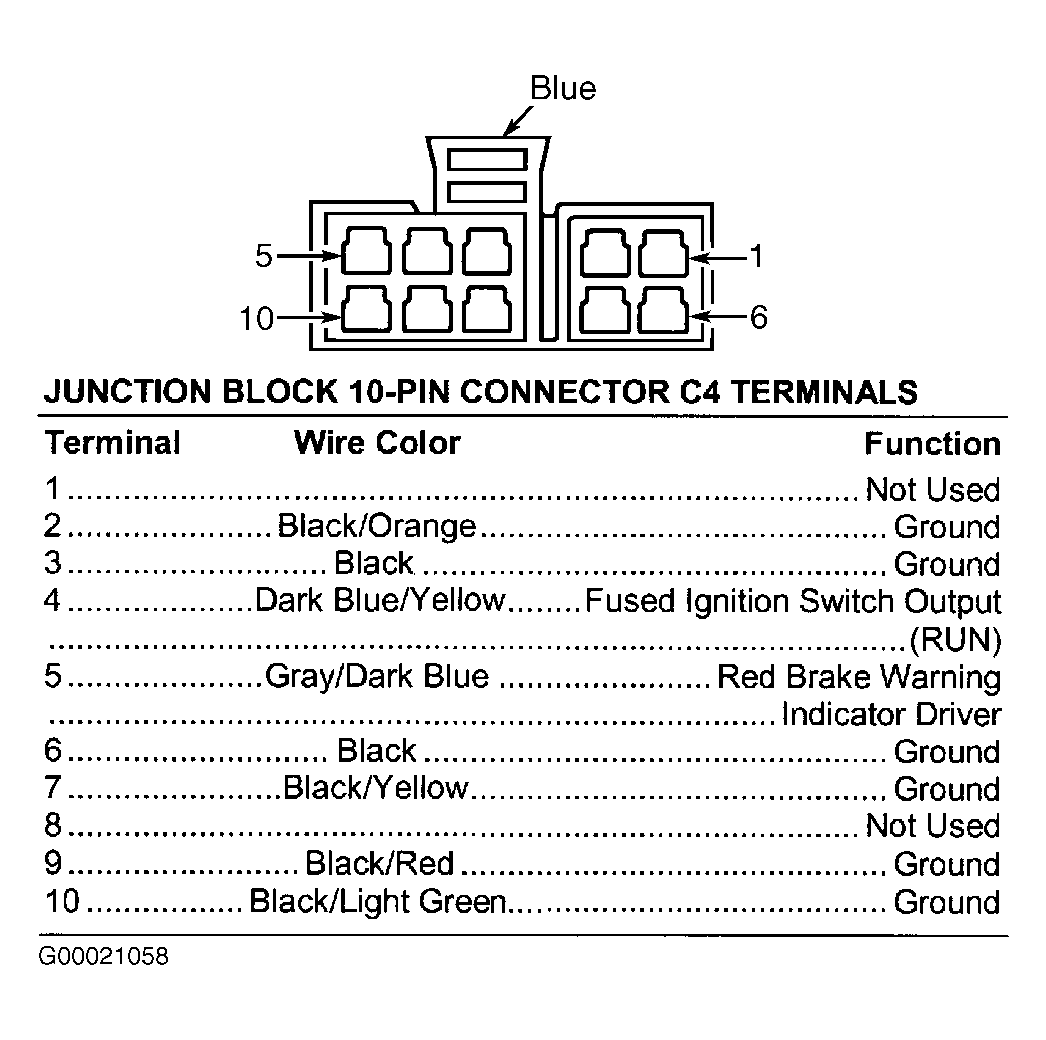

Fig 14: Identifying Junction Block C4 Connector Terminals
G00021058Courtesy of DAIMLERCHRYSLER CORPORATION

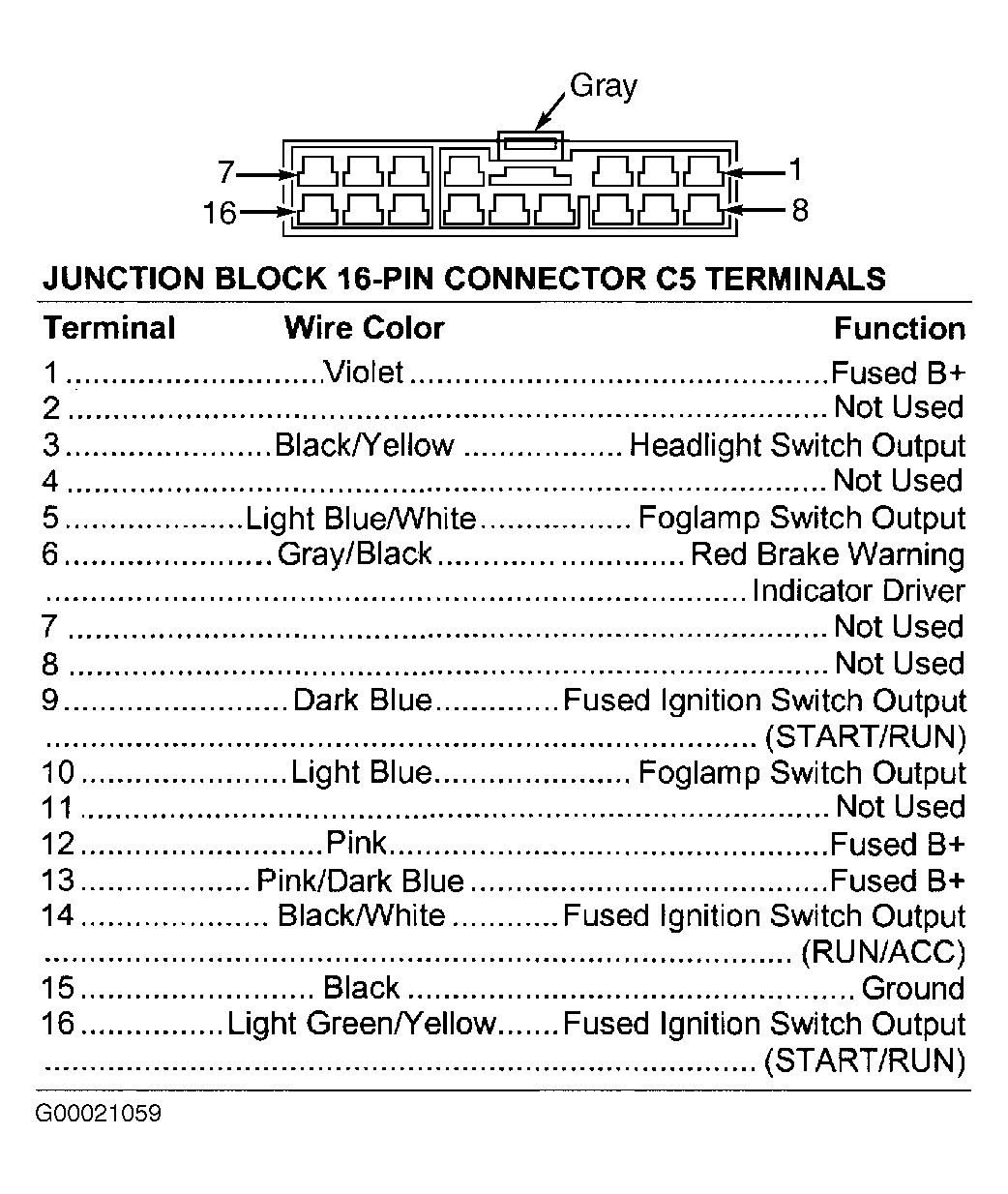

Fig 15: Identifying Junction Block C5 Connector Terminals
G00021059Courtesy of DAIMLERCHRYSLER CORPORATION

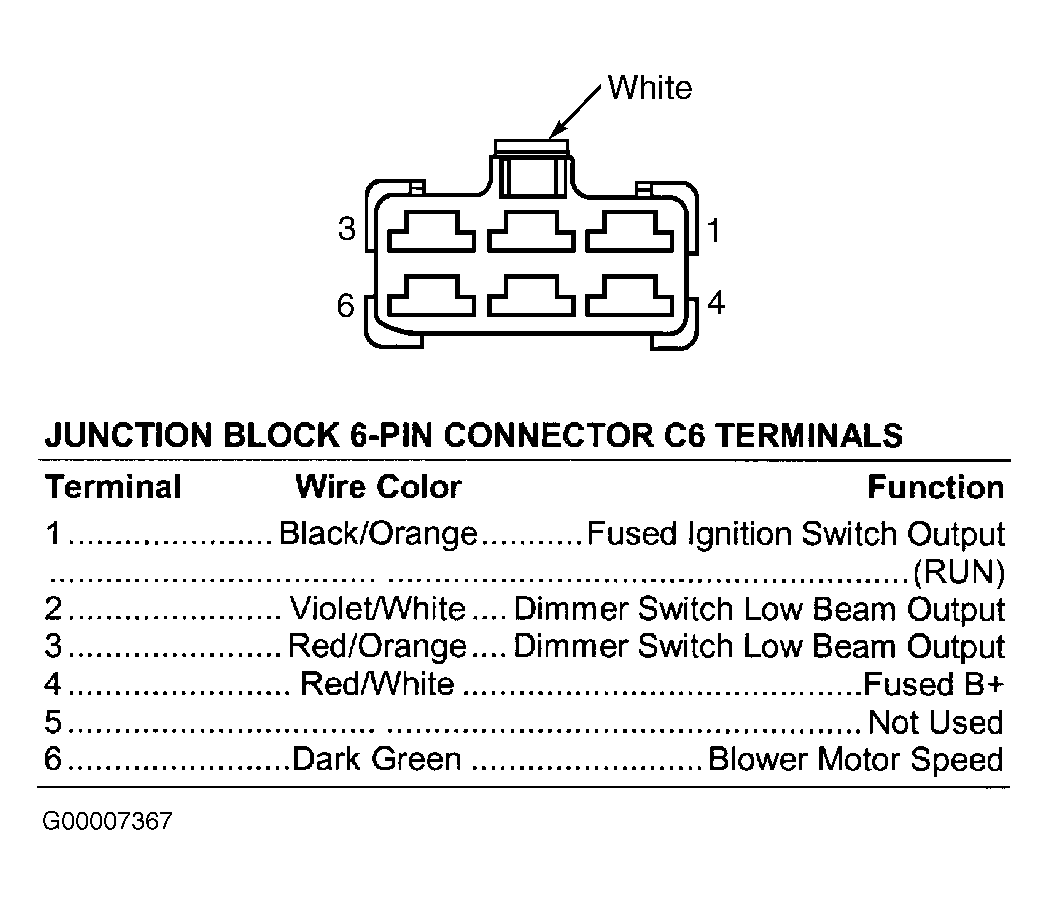

Fig 16: Identifying Junction Block C6 Connector Terminals
G00007367Courtesy of DAIMLERCHRYSLER CORPORATION

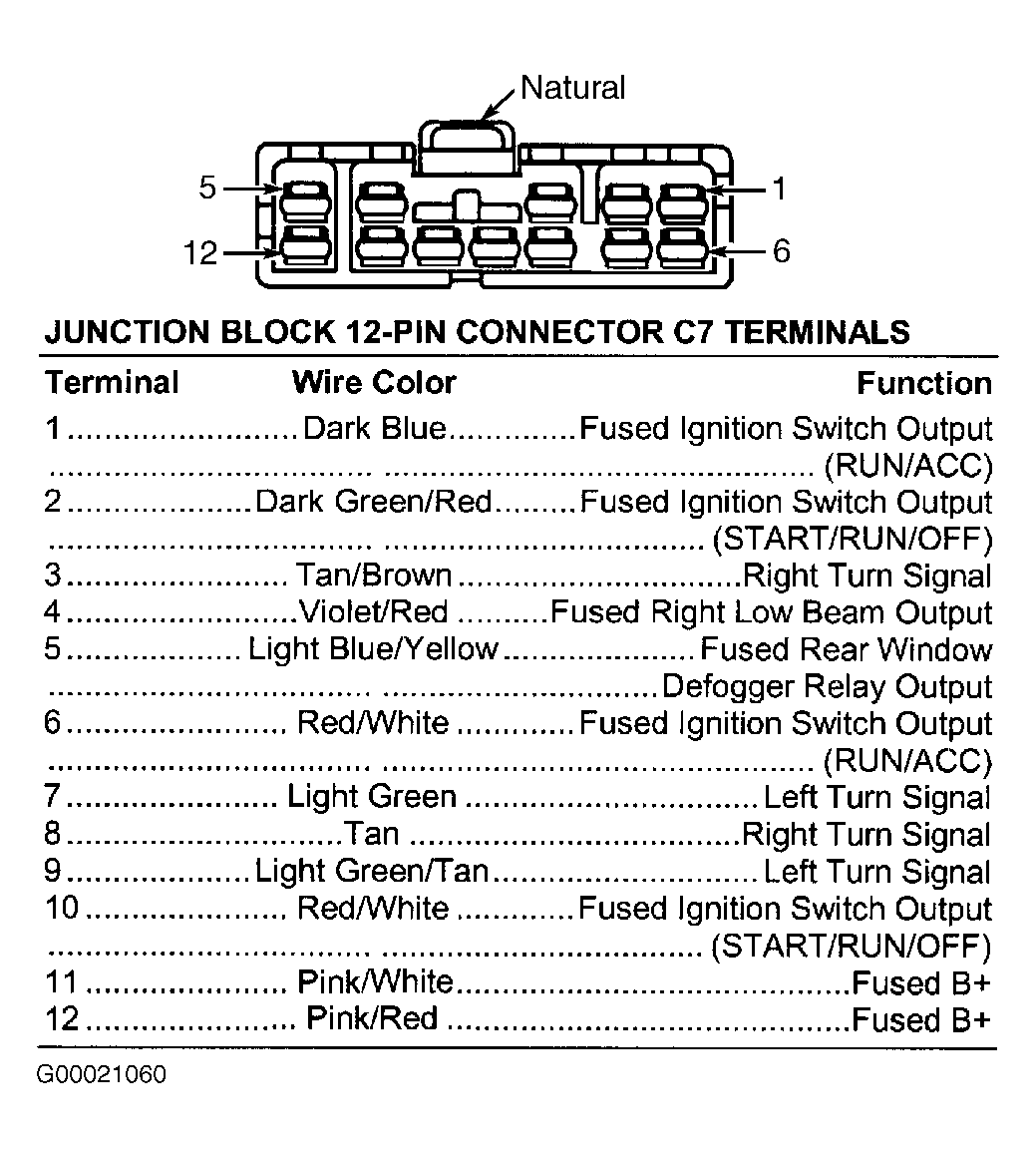

Fig 17: Identifying Junction Block C7 Connector Terminals
G00021060Courtesy of DAIMLERCHRYSLER CORPORATION

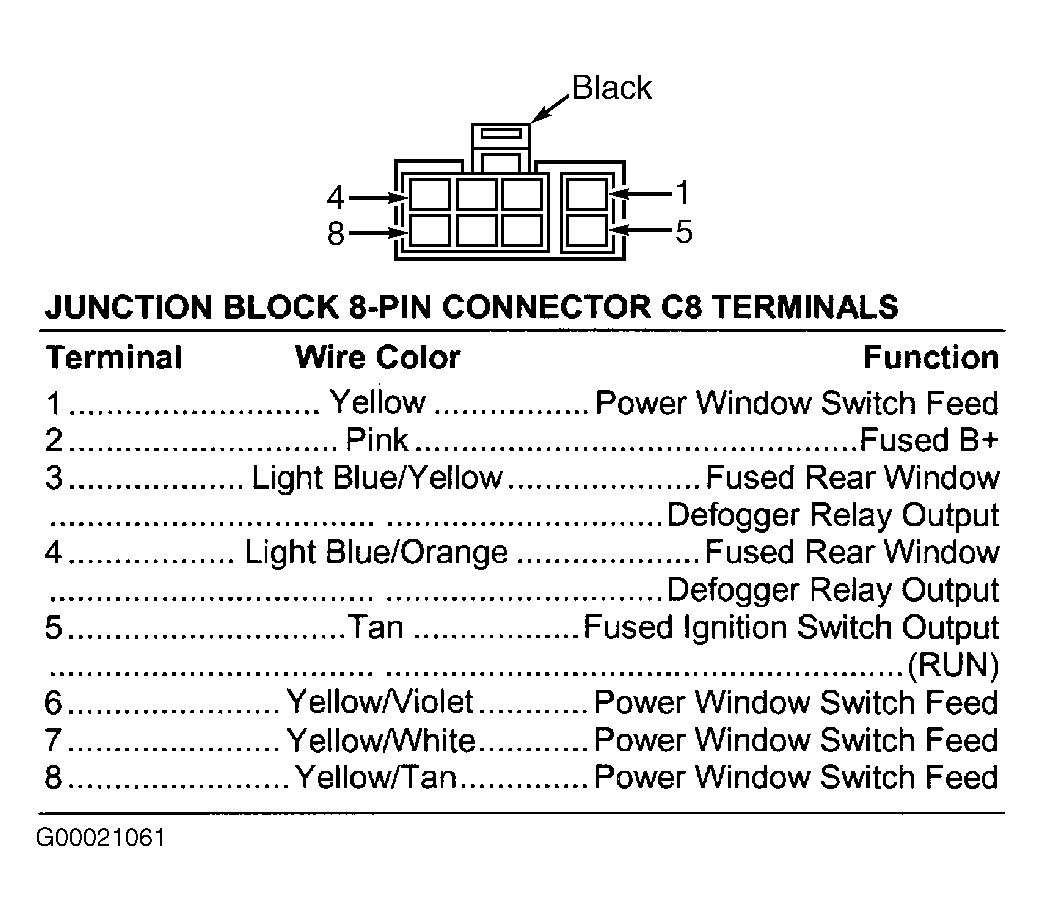

Fig 18: Identifying Junction Block C8 Connector Terminals
G00021061Courtesy of DAIMLERCHRYSLER CORPORATION

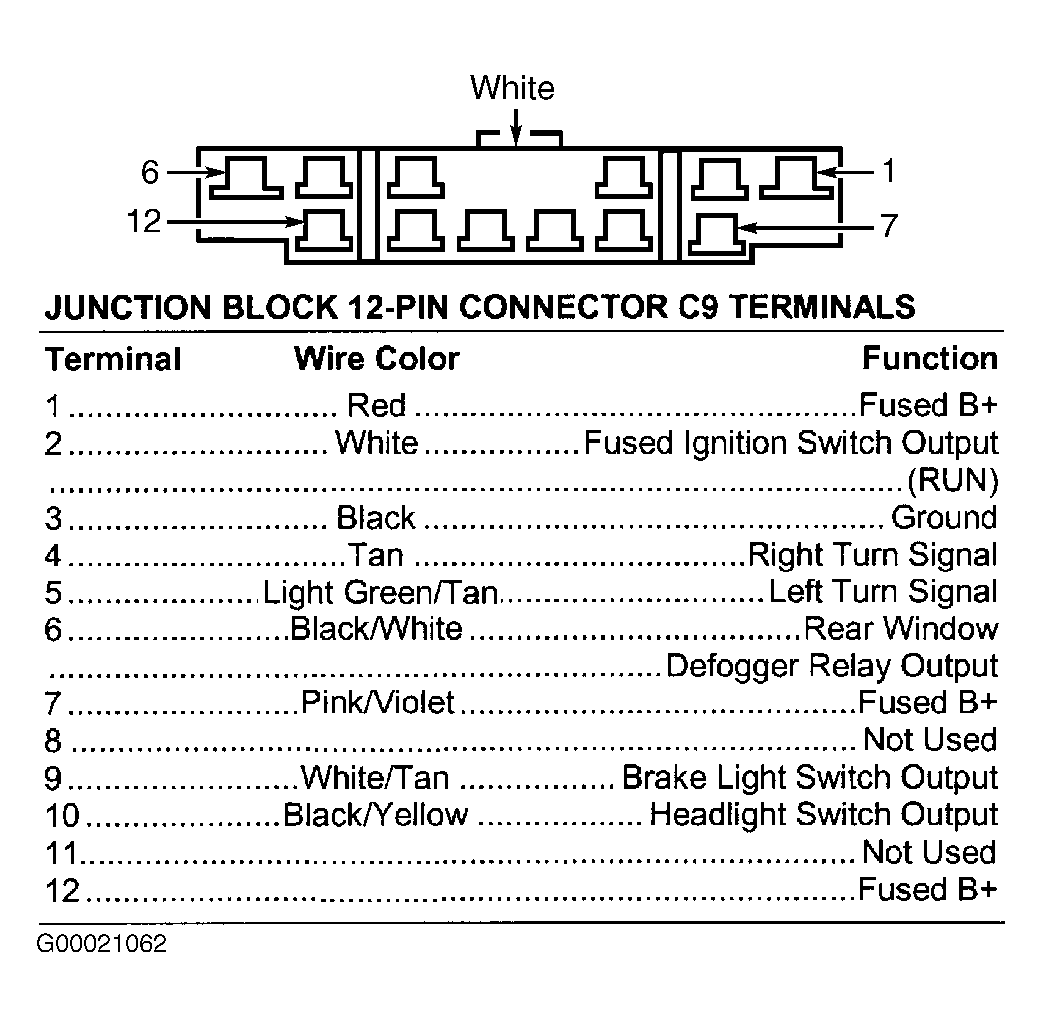

Fig 19: Identifying Junction Block C9 Connector Terminals
G00021062Courtesy of DAIMLERCHRYSLER CORPORATION

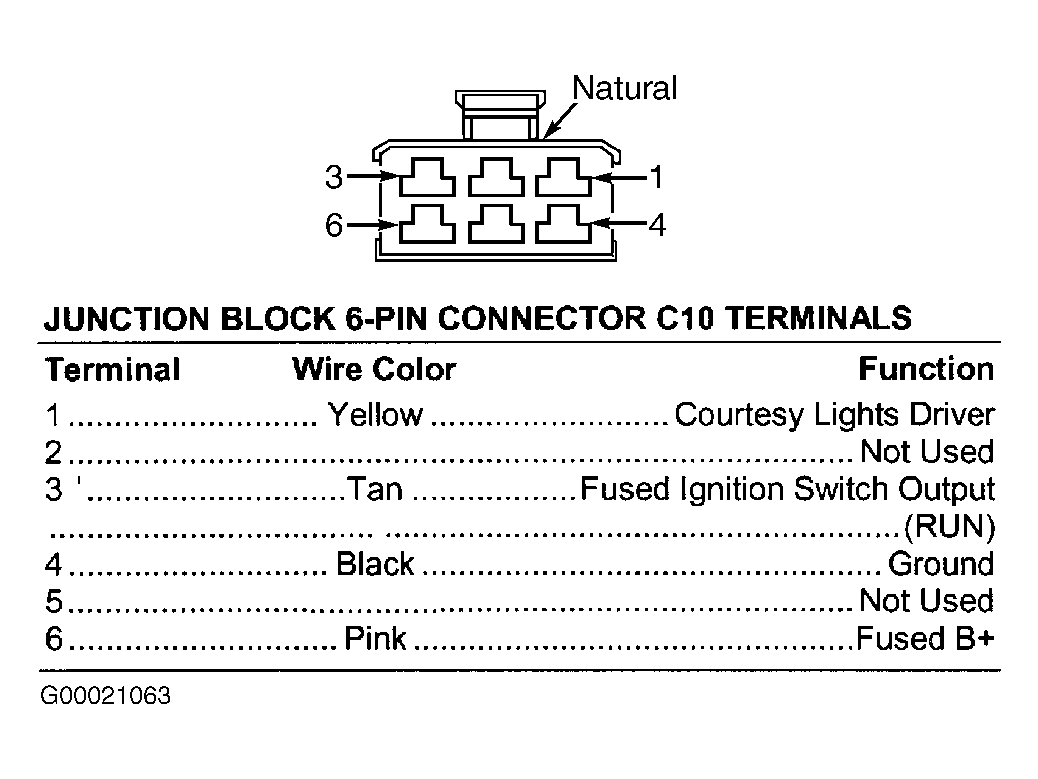

Fig 20: Identifying Junction Block C10 Connector Terminals
G00021063Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 21: Identifying Multifunction Switch C1 Connector Terminals
G00021053Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 22: Identifying Multifunction Switch C2 Connector Terminals
G00021054Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 23: Identifying Occupant Restraint Controller Connector Terminals
G98F00093Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 24: Identifying Power Distribution Center
G00030260Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 25: Identifying Power Top Switch Connector Terminals
G00021052Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 26: Identifying Powertrain Control Module Connector Terminals
G95I12680Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 27: Identifying Sentry Key Immobilizer Module Connector Terminals
G00021055Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 28: Identifying Side Impact Air Bag Control Module Connector Terminals
G00012747Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 29: Identifying Transmission Control Module Connector Terminals
G92I05780Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 30: Identifying Typical Relay
G98J00090Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 31: Locating Instrument Panel Connectors
G00007353Courtesy of DAIMLERCHRYSLER CORPORATION
