Power Steering Pressure Switch: Description

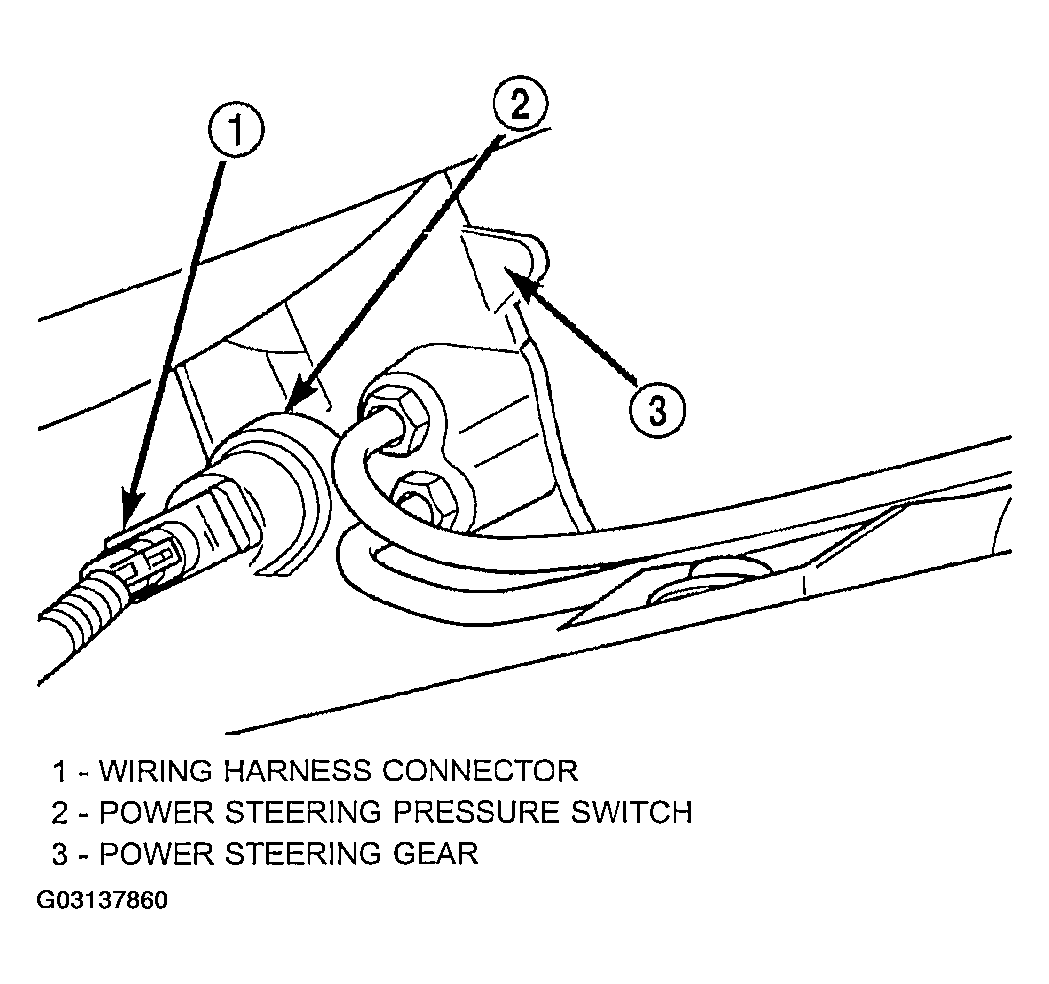

On vehicles equipped with a four cylinder engine, a power steering pressure switch (See Fig 1) is used to improve the vehicle's idle quality when required. When a demand for power assist is put on the power steering system at idle, pump pressure puts additional load on the engine, thus decreasing engine idle speed. The pressure switch improves vehicle idle quality by maintaining the required engine idle speed when the pressure rises in the power steering system.
The power steering pressure switch is mounted directly to the power steering gear (See Fig 1).
