Intermediate Shaft: Description

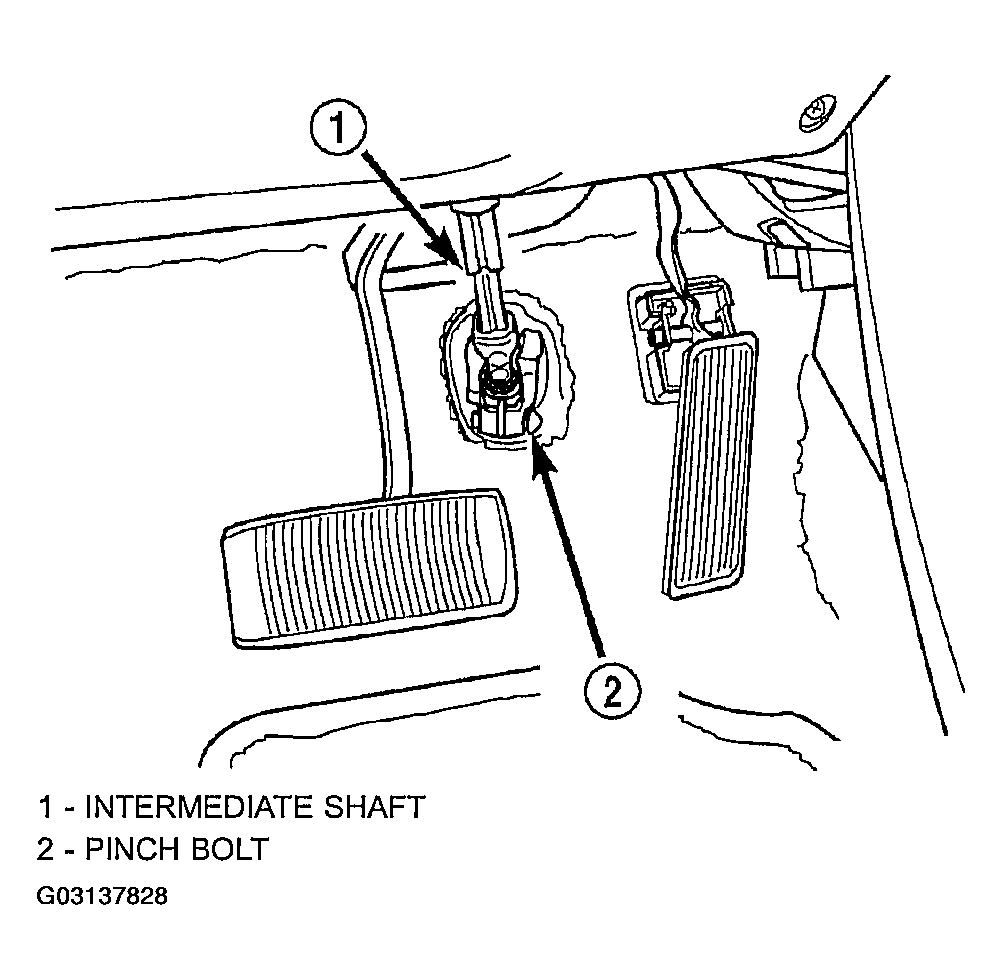

The steering column intermediate shaft is located between the steering column and the power steering gear. It has a universal joint at each end. It has a slider-stage in the center portion of the shaft (See Fig 1).
The steering column intermediate shaft fastens to the steering column's splined shaft using a roll pin. It uses a pinch bolt to secure the shafts to one another at the steering gear.
