Power Steering System - Except Coupe: Gear: Disassembly

  1. Using a screwdriver, pry the sleeve out of the mounting bolt isolator (See Fig 1).

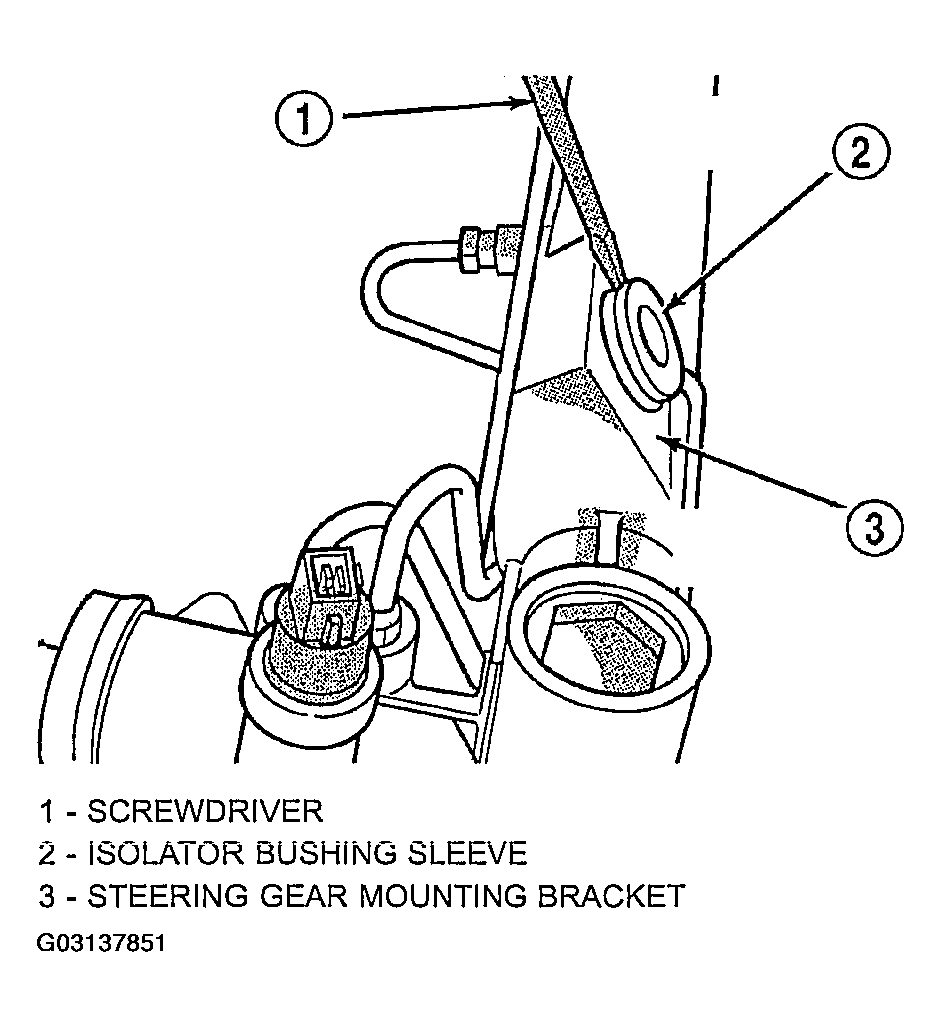

    Fig 1: Mounting Bolt Isolator Sleeve Removal
    G03137851
  2. Pry the mounting bolt isolator bushing from the steering gear mounting bracket.
