Electrical Component Locator - Convertible: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| G100 | At left strut tower. See Figure . |
| G103 | Near left strut tower. See Figure . |

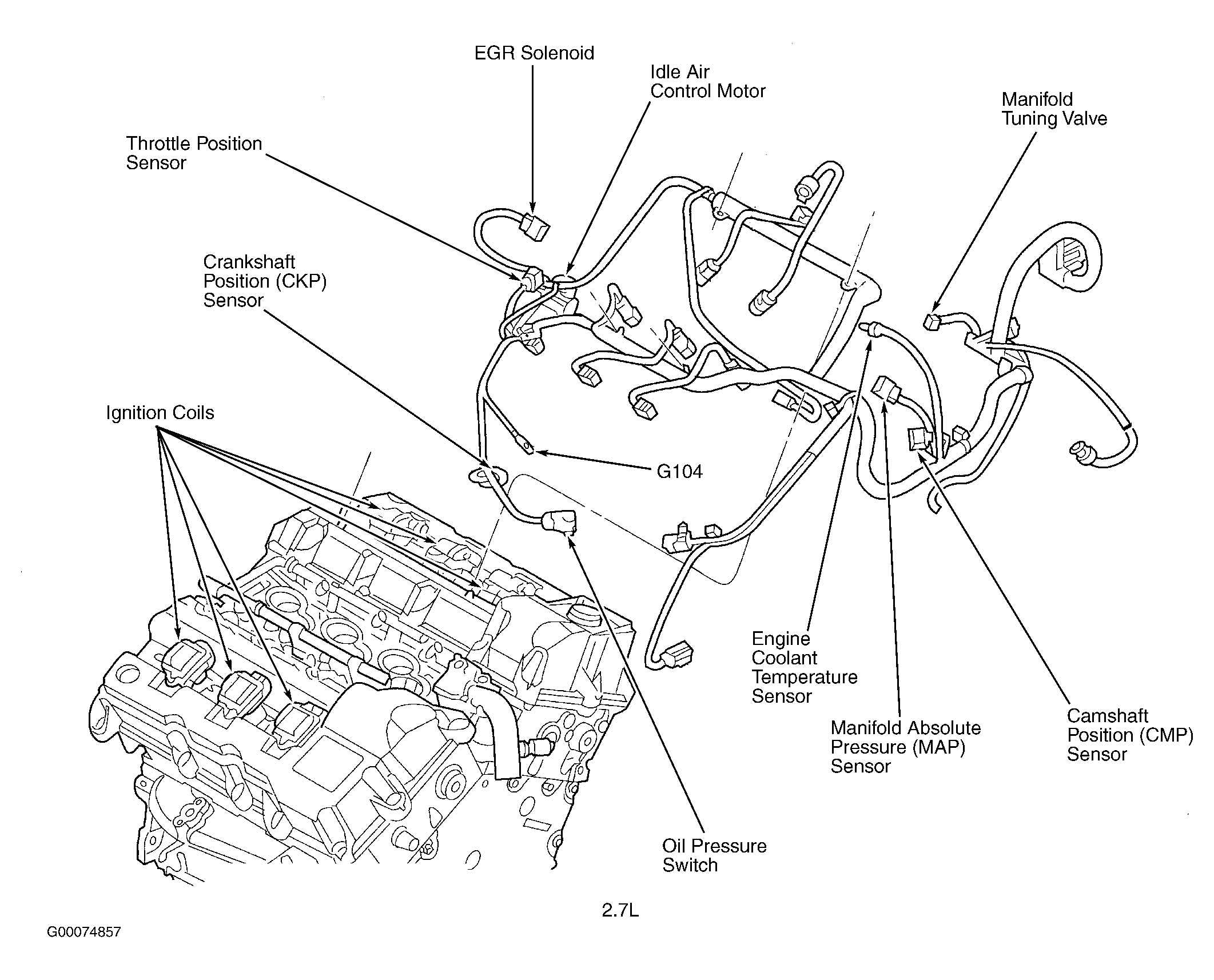

| G104 | Near EGR solenoid. See Figure . |
| G106 | Behind right headlight. |
| G108 | Behind left headlight. |
| G113 | Behind left headlight. |
| G201 | Under center console. |
| G202 | Behind lower left side of dash. |
| G203 | Behind left side of dash. |
| G300 | At rear center of trunk, below latch. |
| G301 | Behind left kick panel. |
| G302 | At left front side of trunk. |
| G303 | At right front side of trunk. |
| G310 | At rear center of deck lid. |
