Test O: Body Verification Test VER-1

For body verification test VER-1 diagnostic procedures, see Fig 1. For component locations, see COMPONENT LOCATIONS . For connector terminal identification, see CONNECTOR IDENTIFICATION . For circuit and wiring diagrams, see WIRING DIAGRAMS .

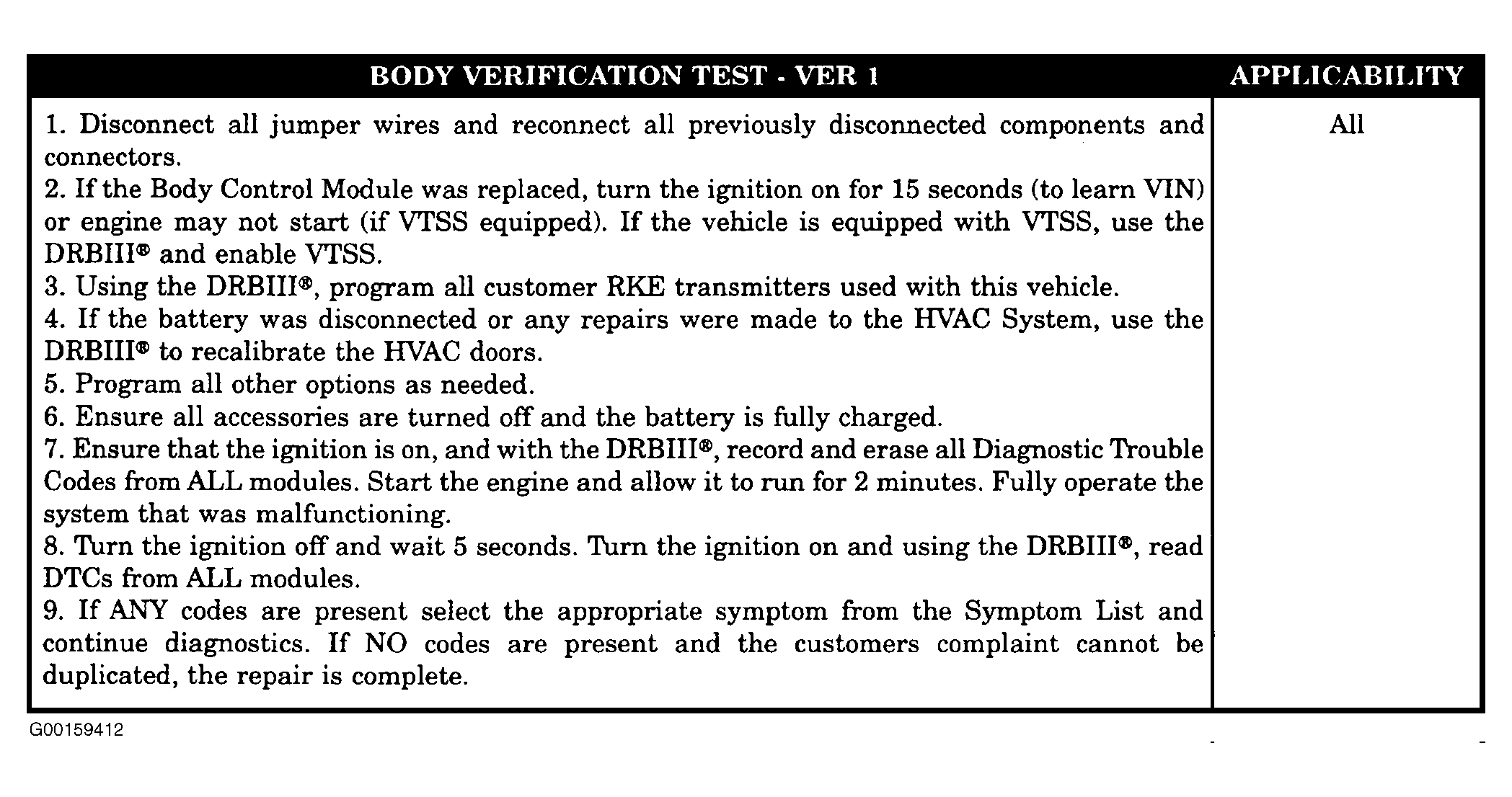

Fig 1: Test O: Body Verification Test Ver-1

Courtesy of CHRYSLER CORP.
