Test N: Remote Keyless Entry Inoperative: Notes

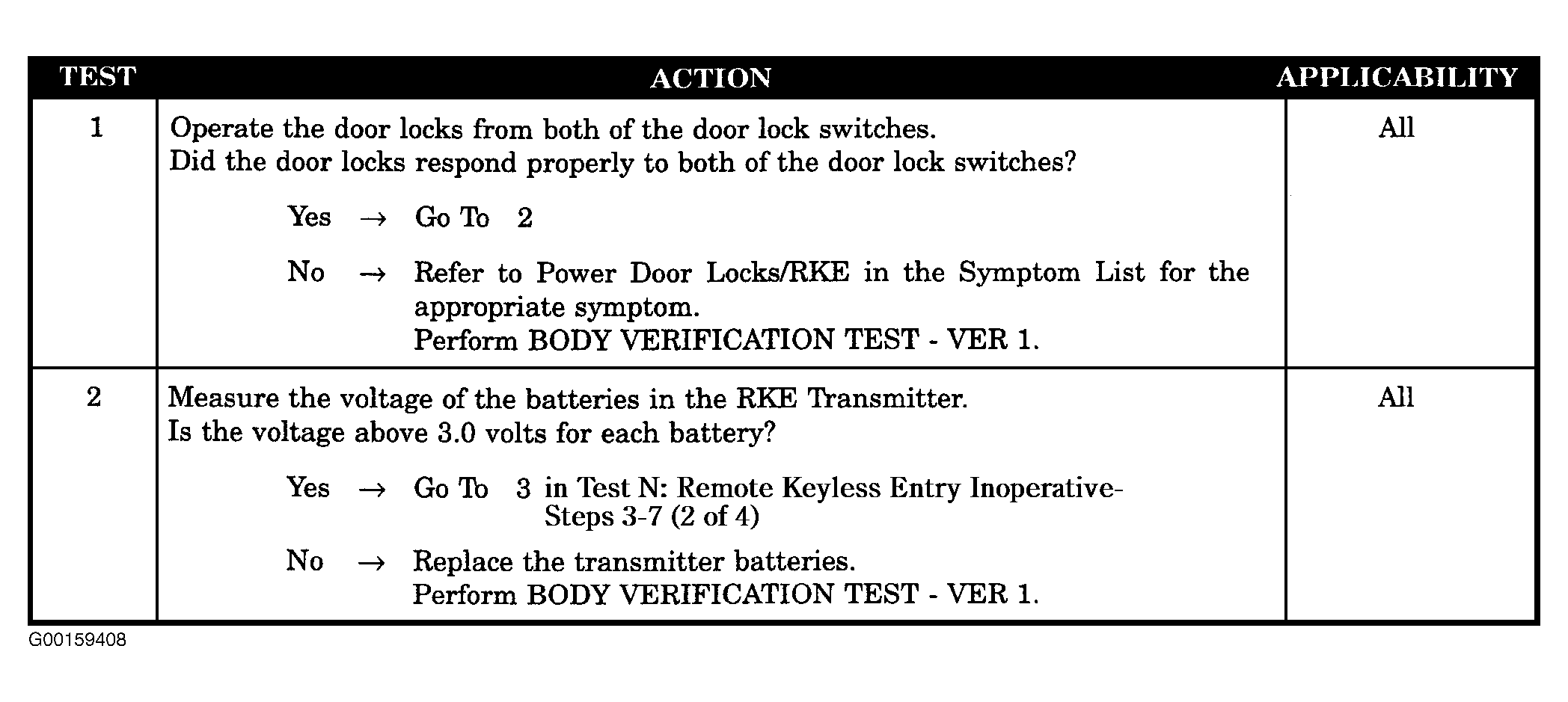

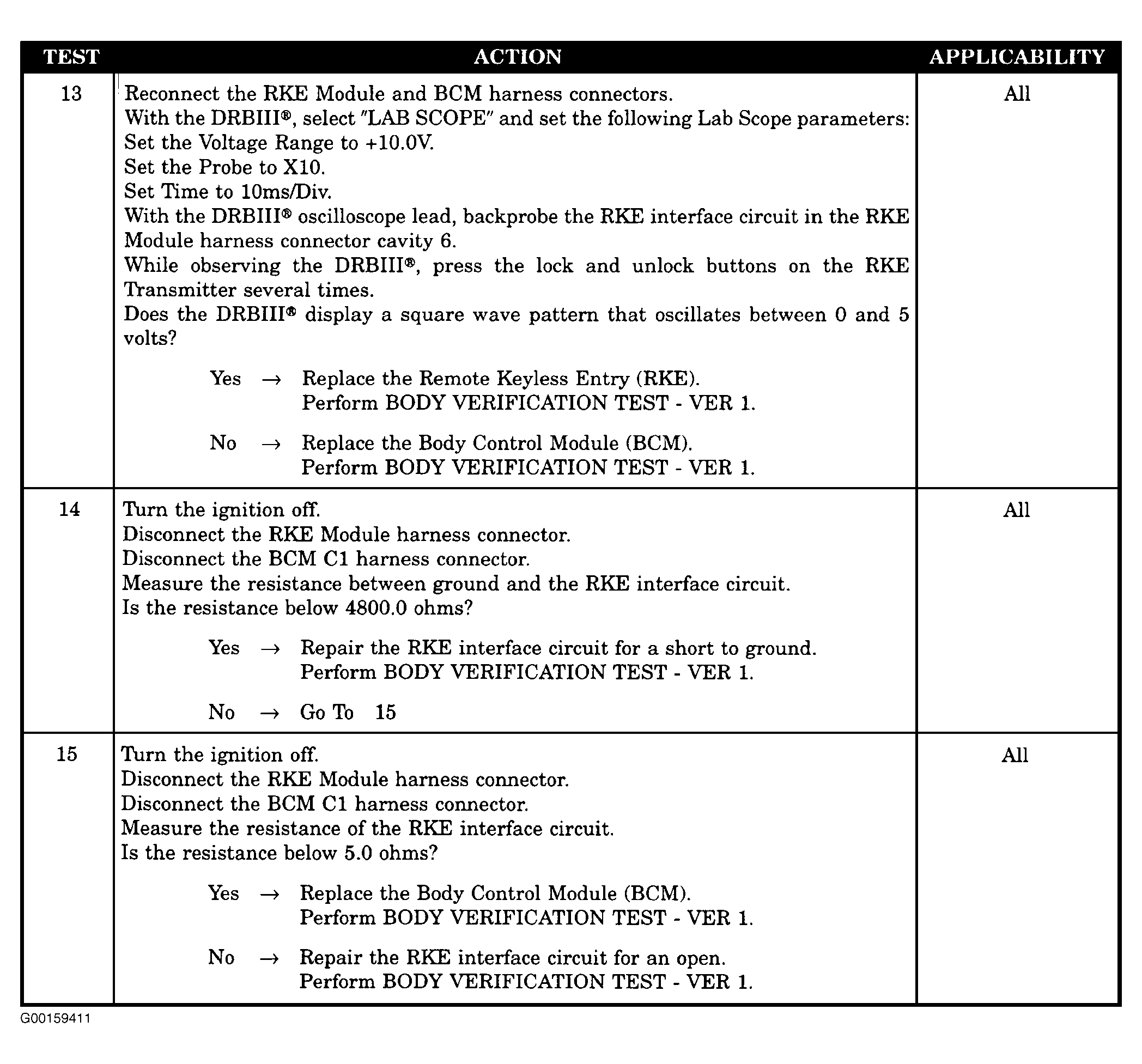

For remote keyless entry inoperative diagnostic procedures, see Figure-Figure . For component locations, see COMPONENT LOCATIONS . For connector terminal identification, see CONNECTOR IDENTIFICATION . For circuit and wiring diagrams, see WIRING DIAGRAMS .
