Test E: DECKLID Release Inoperative: Notes

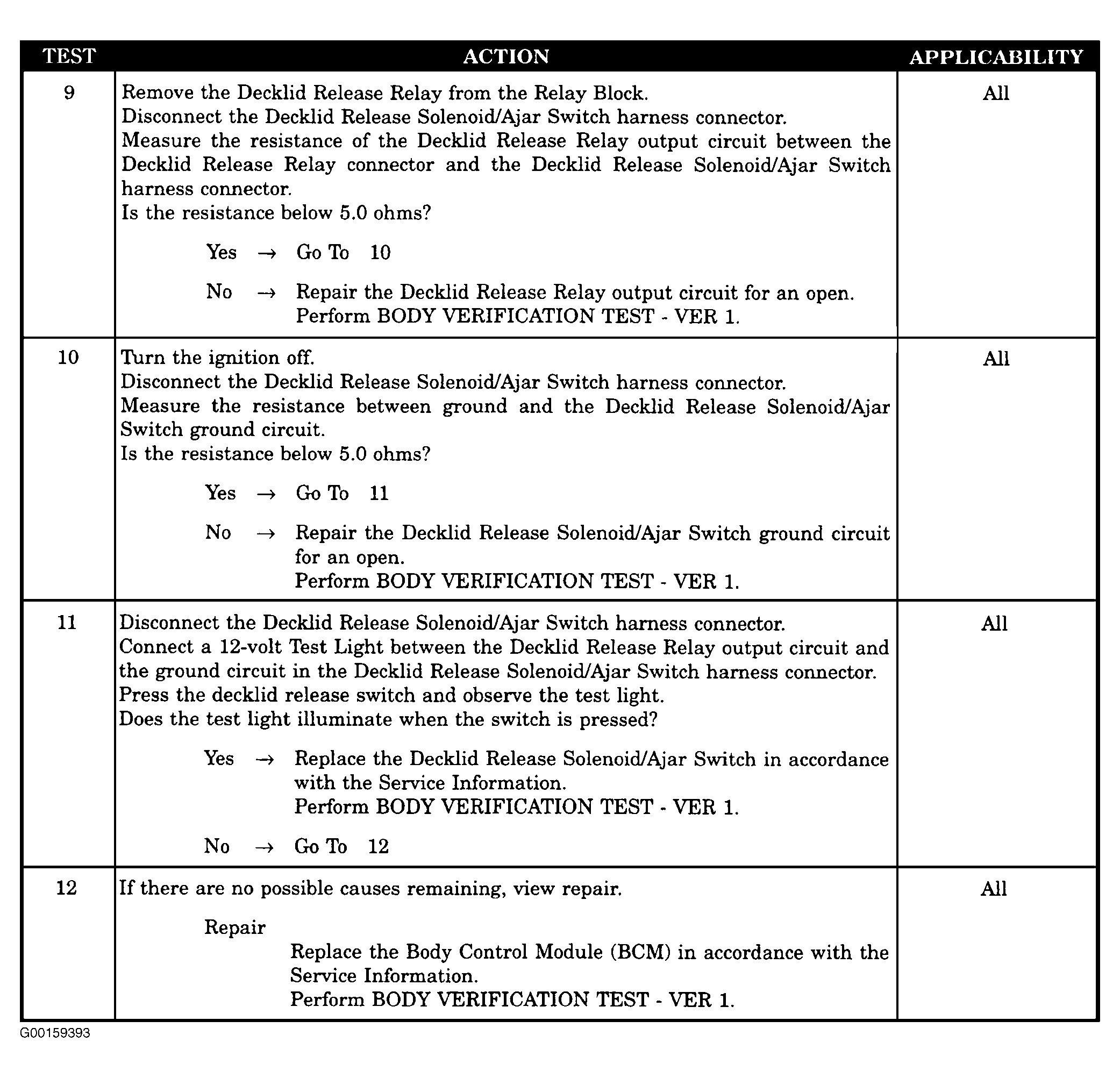

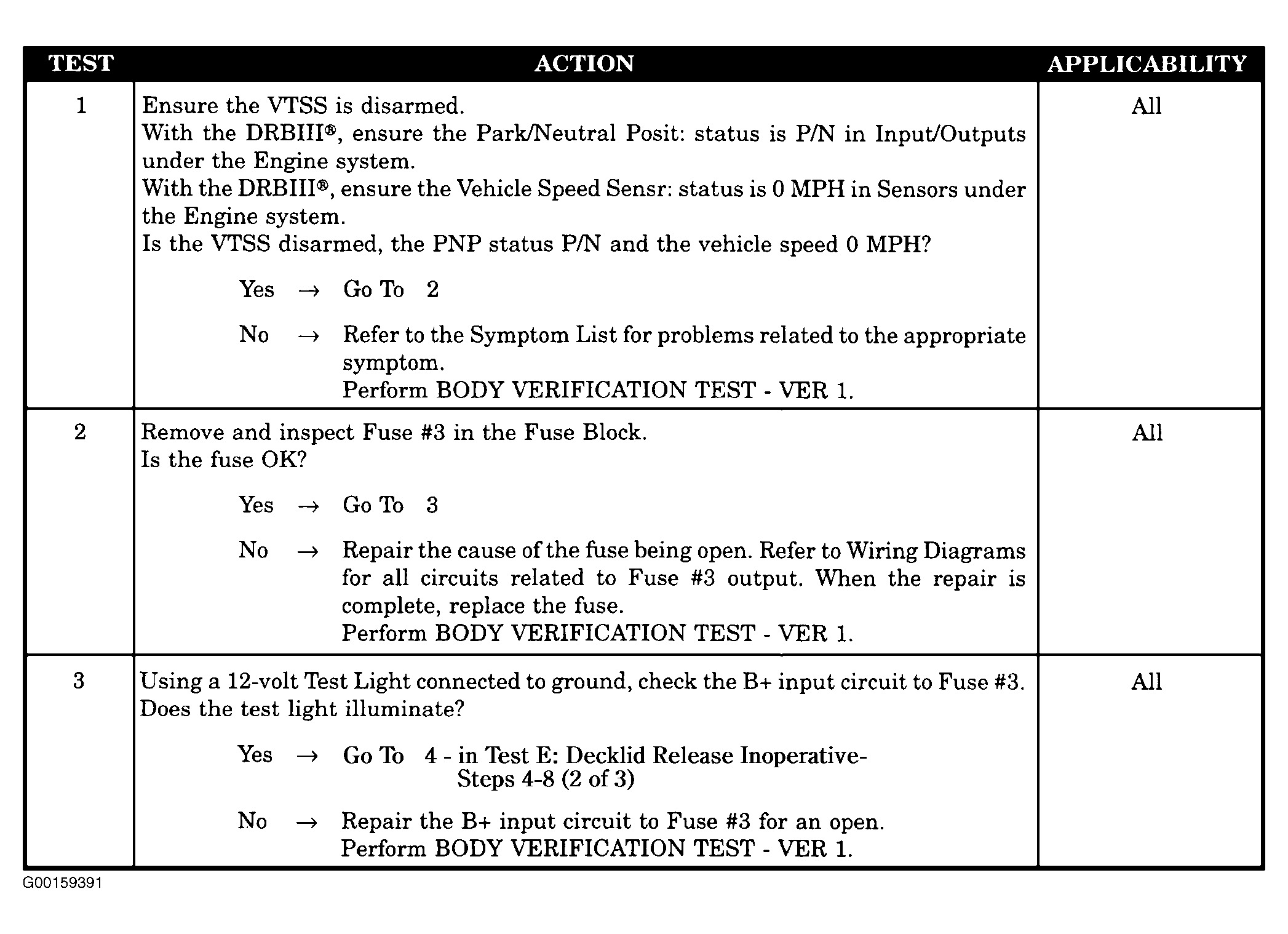

For decklid release inoperative diagnostic procedures, see Figure-Figure . For component locations, see COMPONENT LOCATIONS . For connector terminal identification, see CONNECTOR IDENTIFICATION . For circuit and wiring diagrams, see WIRING DIAGRAMS .
