Component Locations

NOTE: To view component locations, see Fig 1 -Fig 4 .

COMPONENT LOCATIONS

Component		Location
Airbag Control Module (ACM)		Below The Center Of The Instrument panel, Mounted on the tunnel floor pan.
Body Control Module (BCM)		On Driver's Left Kick Panel, Under Dash.
Data Link Connector (DLC)		Under Left Side Of Dash, Connected To The BCM.
Powertrain Control Module (PCM)		Underhood, Next To Air Cleaner.
Transmission Control Module (TCM)		In Right Side Of Trunk Compartment.

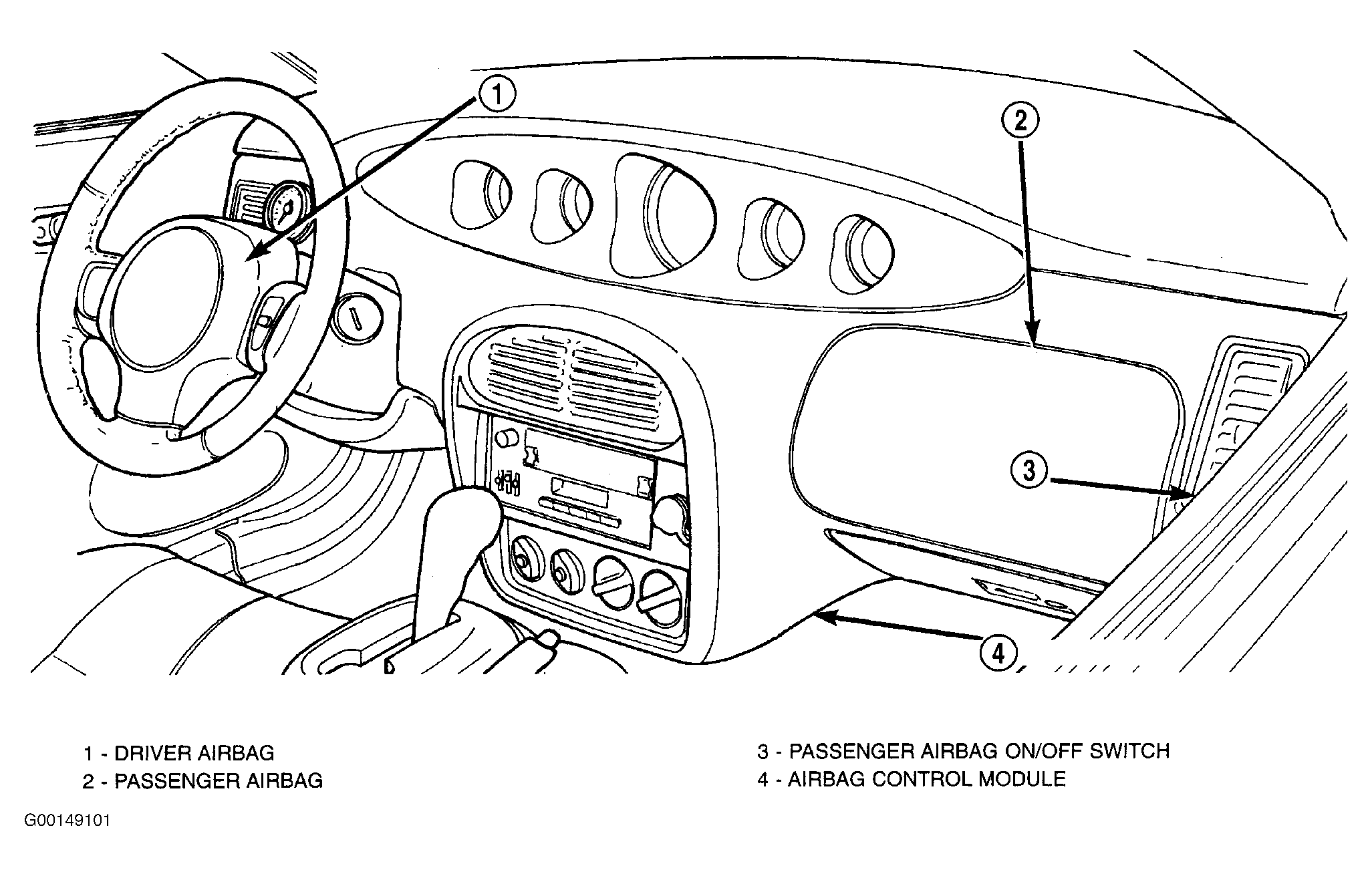

Fig 1: Locating Airbag Control Module (ACM)

Courtesy of CHRYSLER CORP.

Fig 2: Locating Body Control Module (BCM)

Courtesy of CHRYSLER CORP.

Fig 3: Locating Powertrain Control Module (PCM)

Courtesy of CHRYSLER CORP.

Fig 4: Locating Transmission Control Module (TCM)

Courtesy of CHRYSLER CORP.
