Alignment Specifications

WARNING: This page is about a different car, the 2002 Chrysler Prowler, 2001 Plymouth Prowler, 2000 Plymouth Prowler, 1999 Plymouth Prowler, and 1997 Plymouth Prowler. However, it is still accessible from the selected car via links, so may be relevant.

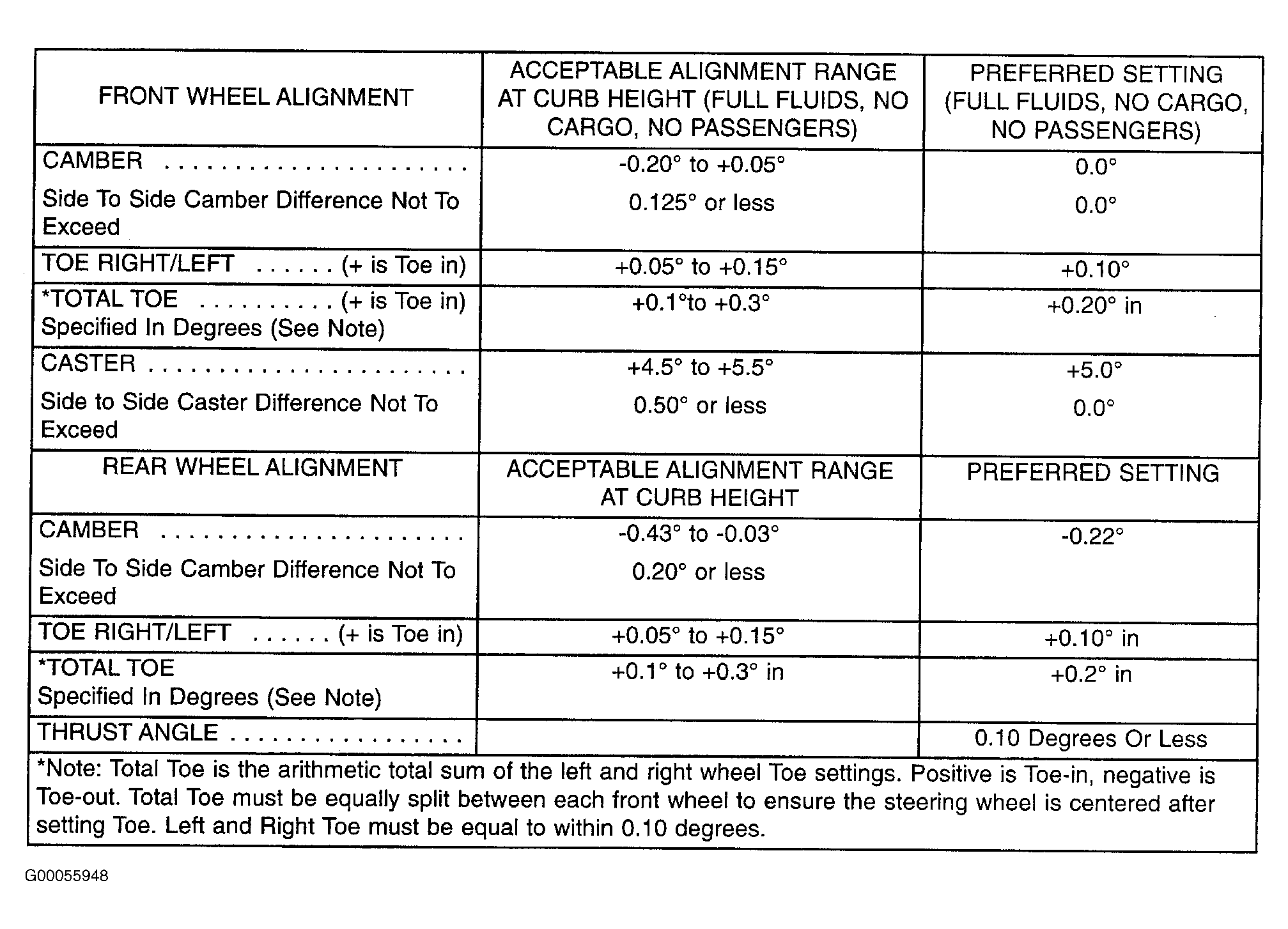

Fig 1: Alignment Specifications 1997 & 99
G00055948Courtesy of CHRYSLER CORP.

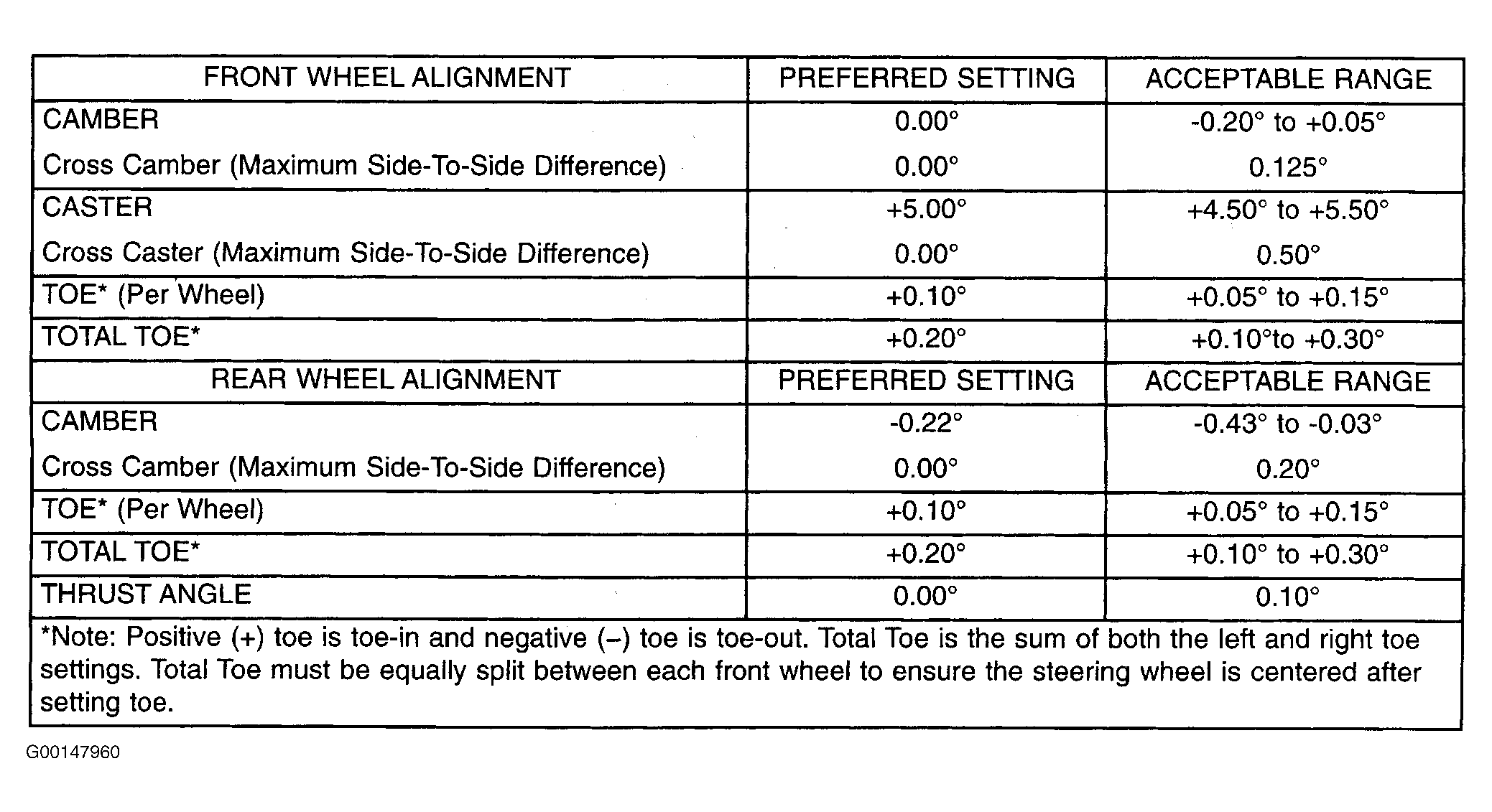

Fig 2: Alignment Specifications 2000-02
G00147960Courtesy of CHRYSLER CORP.
