Power Seat Switch

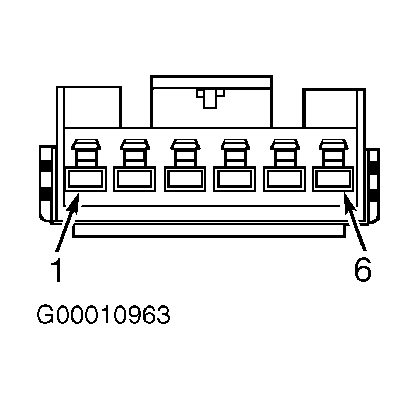

Remove switch from mounting position. See POWER SEAT SWITCH under REMOVAL & INSTALLATION. Using ohmmeter, check continuity between specified terminals at power seat switch, as switch is operated. See POWER SEAT SWITCH CONTINUITY TEST table. See Figure . If continuity does not exist between specified terminals, replace switch.
POWER SEAT SWITCH CONTINUITY TEST
| Switch Position | Seat Switch Terminal No. |
|---|---|
| Off | None |
| Riser Up | 4 & 6; 3 & 5 |
| Riser Down | 2 & 4; 3 & 6 |
