Rear Suspension: Description

The rear suspension design on the PT Cruiser uses coil springs mounted above a twist beam axle assembly. Major suspension components include, axle, coil springs, shock absorbers, spindles, stabilizer bar, and watts link assembly. See Fig 1 and Fig 2 .

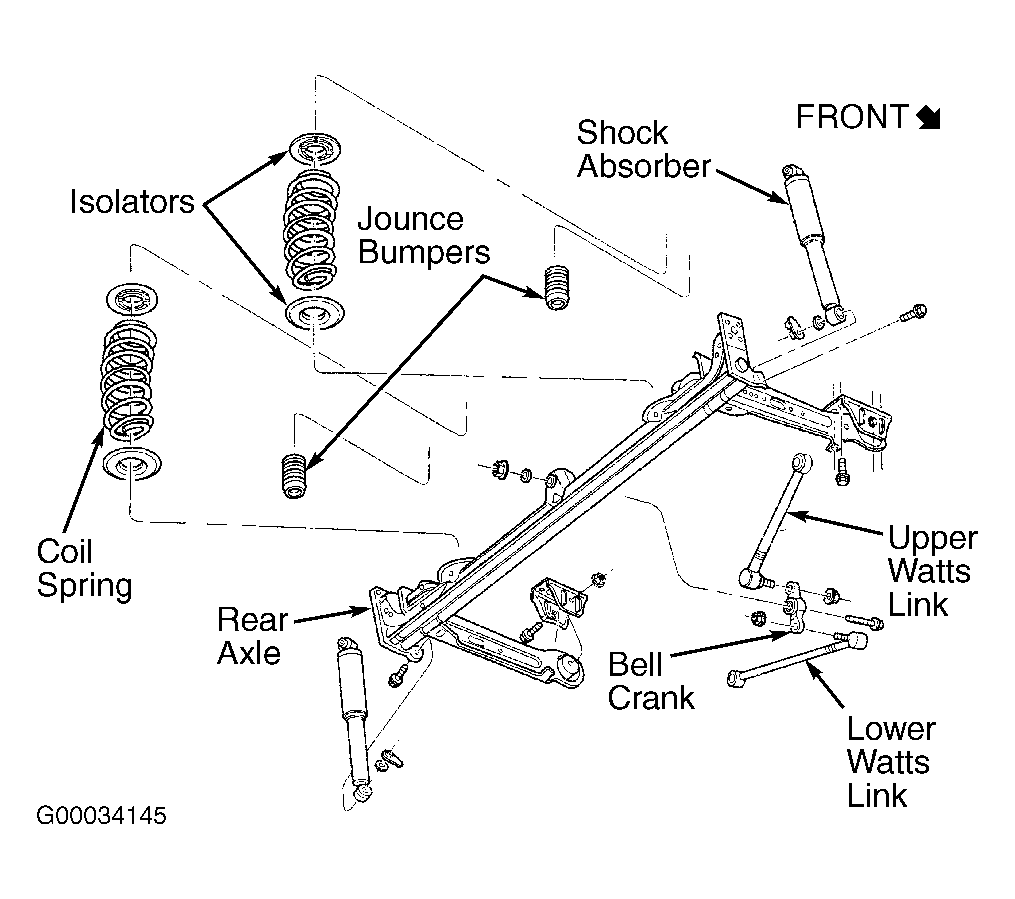

Fig 1: Exploded View Of Rear Suspension

Courtesy of DAIMLERCHRYSLER CORP.

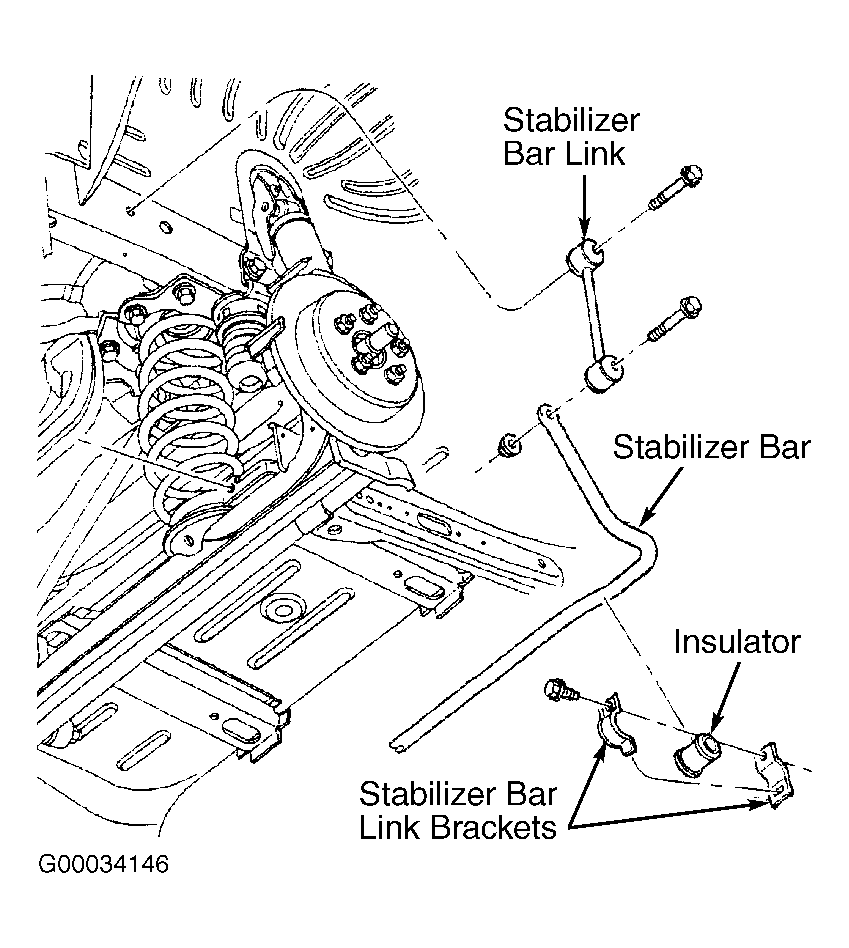

Fig 2: Identifying Stabilizer Components

Courtesy of DAIMLERCHRYSLER CORP.
