Connector Inspection Service Points
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

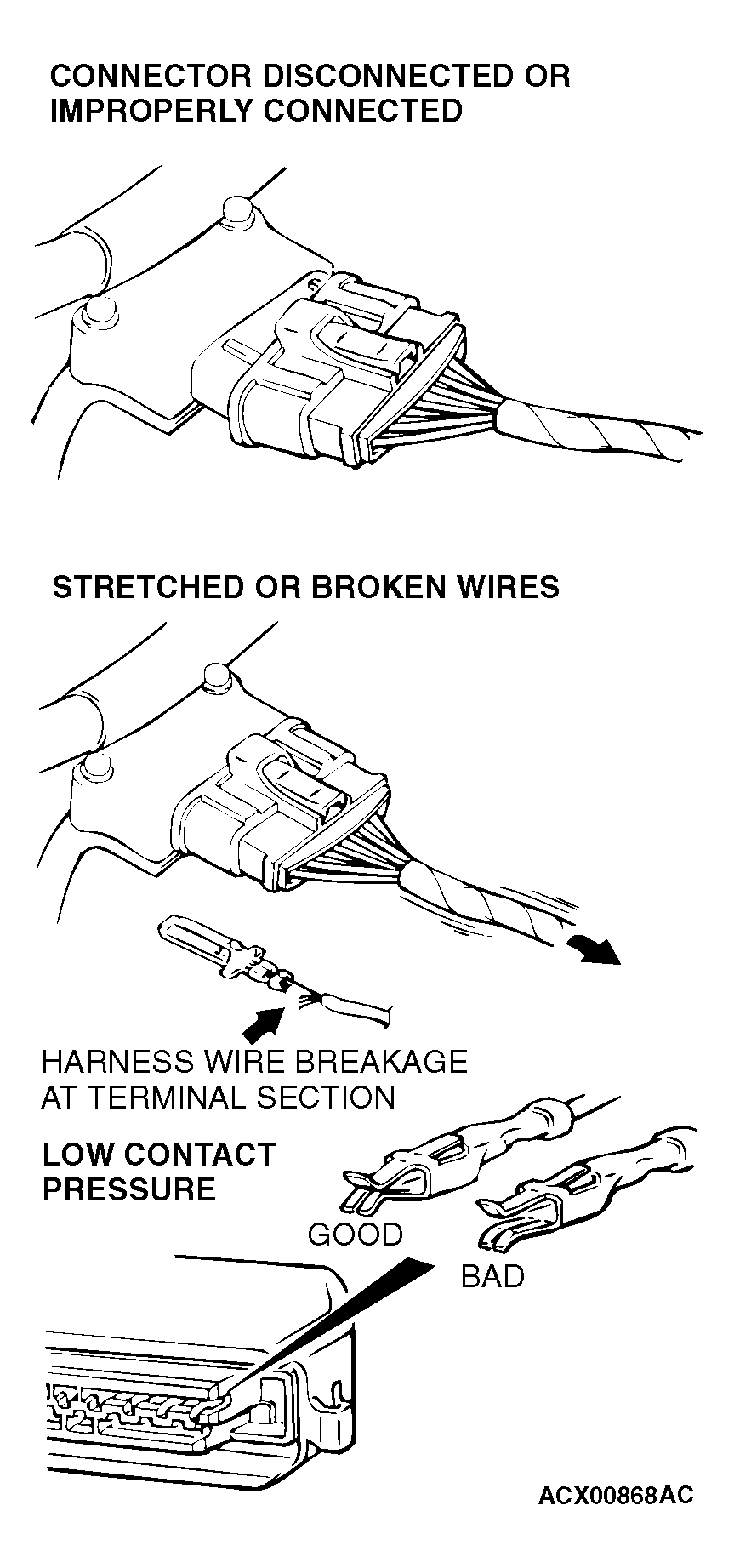

VISUAL INSPECTION
- Connector is disconnected or improperly connected
- Connector pins are pulled out
- Stretched and broken wires at terminal section
- Low contact pressure between male and female terminals
- Low connection pressure due to rusted terminals or foreign matter lodged in terminals
