Power Distribution Center
CAUTION:
When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.

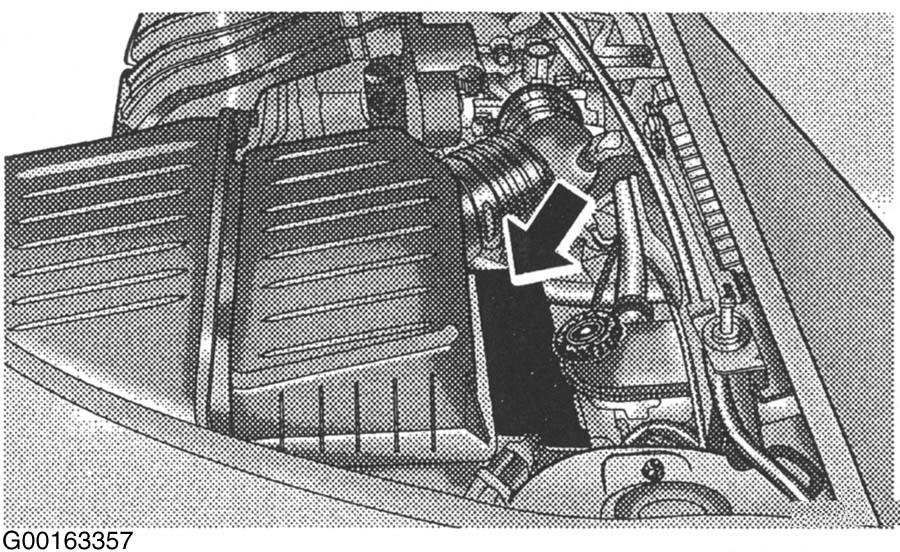

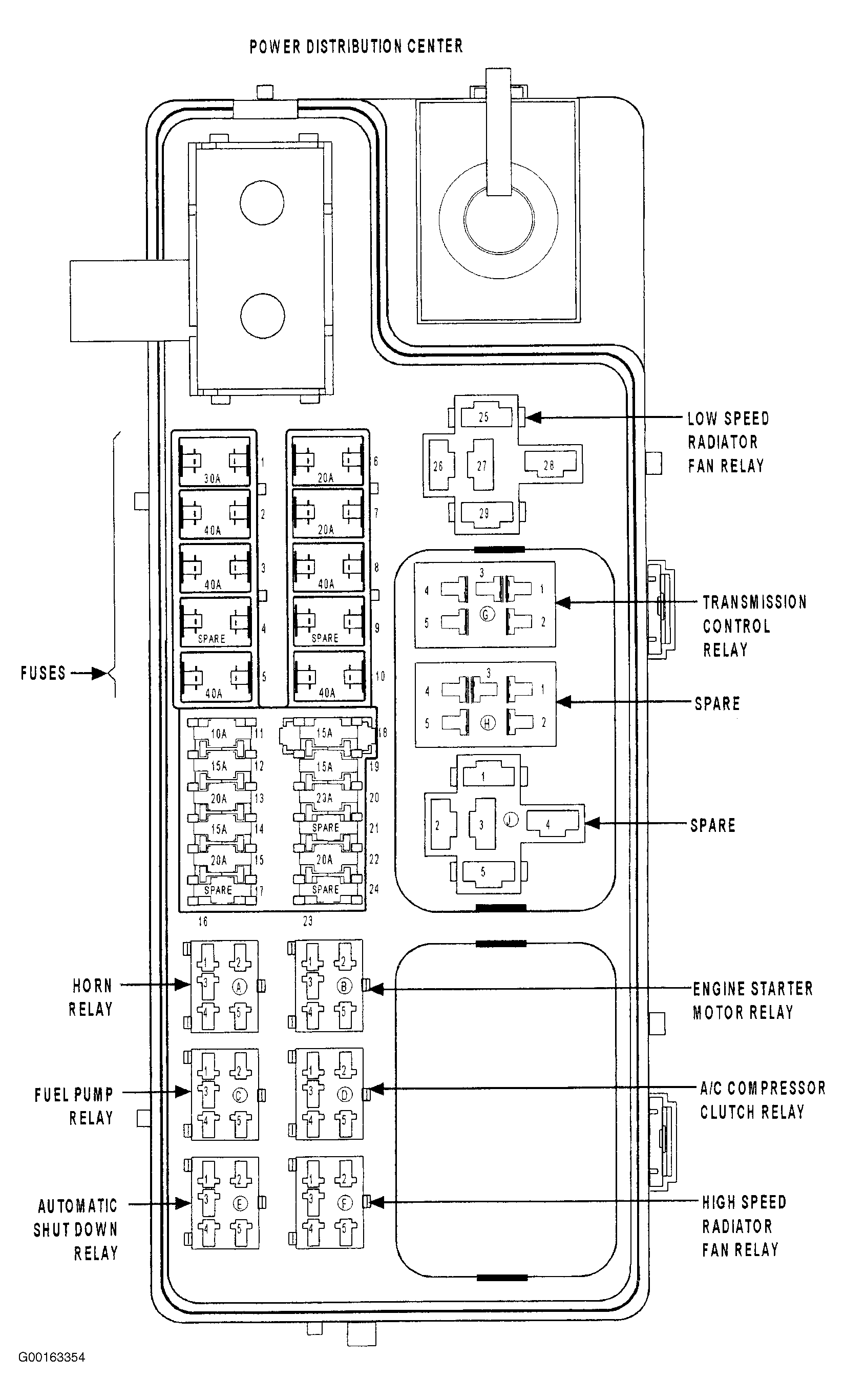

To identify fuse and relay locations in the power distribution center, see POWER DISTRIBUTION CENTER (PDC) table. For location and component identification of the Power Distribution Center, see Fig 1 and Fig 2 .
POWER DISTRIBUTION CENTER (PDC)
| Fuse (Amps) | Application |
|---|---|
| 1 (30) | Engine Starter Motor Relay, Engine Starter Motor & Ignition Switch |
| 2 (40) | Controller Anti-Lock Brake |
| 3 (40) | Ignition Switch |
| 4 | Not Used |
| 5 (40) | High/Low Speed Radiator Fan Relay & Radiator Fan Motor |
| 6 (20) | Power Seat Switch & Power Seat Motor |
| 7 (20) | Controller Anti-Lock Brake |
| 8 (40) | Rear Window Defogger Switch, Rear Window Defogger & Fuse Block |
| 9 | Not Used |
| 10 (40) | Fuse Block |
| 11 (10) | A/C Compressor, Diode & A/C Compressor Clutch |
| 12 (15) | Brake Lamp Switch & Controller Anti-Lock Brake |
| 13 (20) | Powertrain Control Module, Automatic Shut Down Relay, Fuel Pump Relay & Fuel Pump Module |
| 14 (15) | Horn Relay, Low Horn Note & High Horn Note |
| 15 (20) | Transmission Control Relay, Transmission Solenoid/Pressure Switch Assembly & Transmission Control Module |
| 16 | Not Used |
| 17 | Not Used |
| 18 (15) | Power Mirror Switch, Sentry Key Immobilizer Module, Instrument Cluster, Radio, Cargo Lamp, Overhead Console Module, Left Visor/Vanity Lamp, Right Visor/Vanity Lamp & Map/Reading Lamps |
| 19 (15) | Combination Flasher |
| 20 (20) | Ignition Switch & Power Outlet |
| 21 | Not Used |
| 22 (20) | Not Listed |
| 23 | Not Used |
| 24 | Not Used |
