Fuse Block

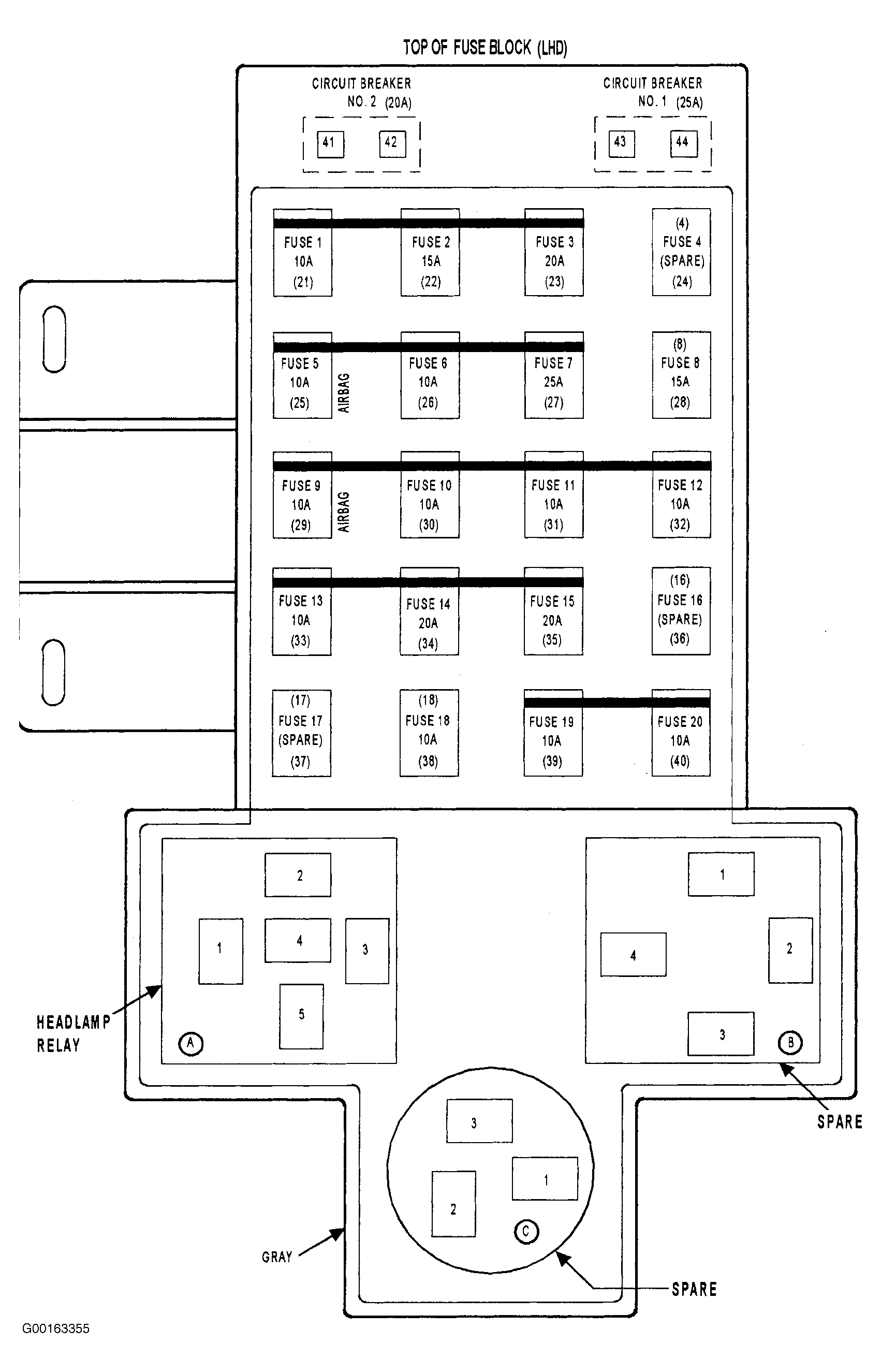

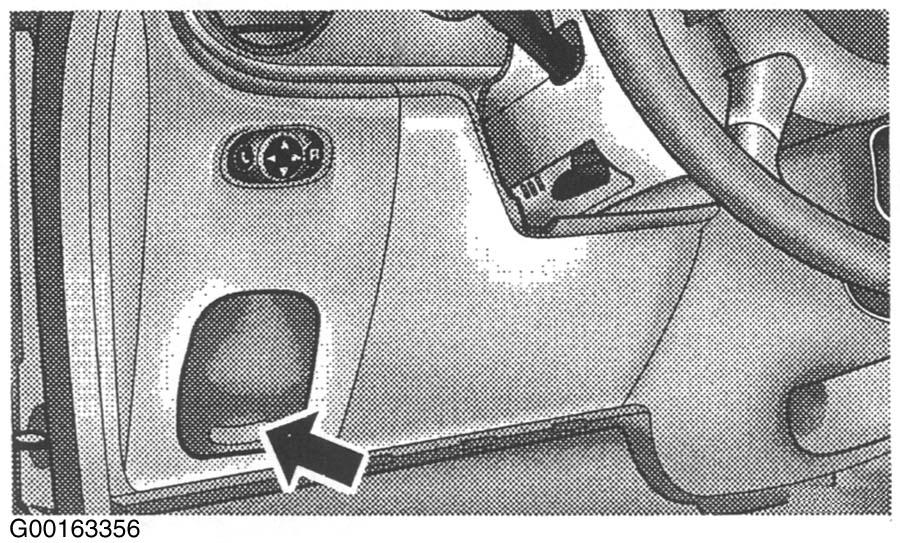

To identify fuse and relay locations in fuse block, see FUSE BLOCK IDENTIFICATION table. To identify fuse block location, see Fig 1 . For an illustration of the fuse block components, see Fig 2 .
FUSE BLOCK IDENTIFICATION
| Fuse (Amps) | Application |
|---|---|
| 1 (10) | Remote Keyless Entry Module |
| 2 (15) | Head Lamp Switch, Power Mirror Switch, Door Lock Switch, Tail Stop Lamp, Radio, Instrument Cluster, Remote Keyless Entry Module & Park/Turn Signal Lamp & Front Power Window Switch |
| 3 (20) | Remote Keyless Entry Module |
| 4 N/A | N/A |
| 5 (10) | Ignition Switch & Occupant Restraint Controller |
| 6 (10) | Circuit Breaker #2, Rear Window Defogger Switch, Transmission Range Sensor & Back-Up Lamp Switch |
| 7 (25) | Ignition Switch & Blower Motor |
| 8 (15) | Headlamp Switch, Instrument Cluster & Headlamp Relay |
| 9 (10) | Ignition Switch, Side Impact Airbag Control Module & Occupant Restraint Control Module |
| 10 (10) | Ignition Switch, Sentry Key Immobilizer Module, Remote Keyless Entry, Instrument Cluster & Instrument Cluster |
| 11 (10) | Ignition Switch, Powertrain Control Module, Fuel Pump Relay & Controller Anti-Lock Brake |
| 12 (10) | Ignition Switch, Brake Shift Interlock Solenoid, Low/High Speed Radiator Fan Relay, A/C Compressor Clutch Relay, Leak Detection Pump, Brake Lamp Switch, Power Control Module & Transmission Control Module |
| 13 (10) | Ignition Switch, Radio |
| 14 (20) | Ignition Switch, Power Sunroof Module & Overhead Console Module |
| 15 (20) | Ignition Switch, Combination Flasher, Wiper/Washer Switch, Rear Wiper Motor, Rear Wiper Switch, Front Wiper Motor & Multifunction Switch |
| 16 N/A | N/A |
| 17 N/A | N/A |
| 18 (10) | Left/Right Power Mirror & Rear Window Defogger |
| 19 (10) | Right High/Low Beam Headlamp |
| 20 (10) | Left High/Low Beam Headlamp |
