Crossover Cable

    NOTE: Only crossover cable is adjustable. Selector cable is not adjustable.
  1. Remove shift console. Loosen crossover cable adjustment screw at shift lever. See Fig 1 . Using a 1/4" drill bit, pin transaxle crossover lever in 3-4 neutral position. Align hole in crossover lever with hole in boss on transaxle case. Ensure drill bit goes at least 1/2" into transaxle case. See Fig 2 .
  2. Allow shifter to rest in Neutral (shifter is spring loaded and self centering). Tighten adjustment screw to 70 INCH lbs. (8 N.m). Remove drill bit. Ensure shift lever shifts into all gears. Install shift console.

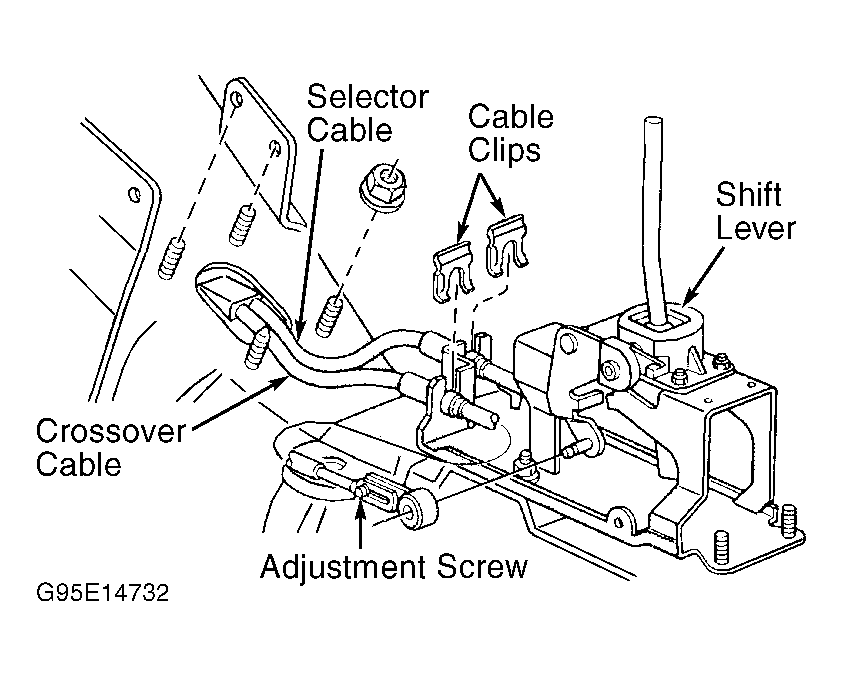

Fig 1: Locating Crossover Cable
G95E14732Courtesy of CHRYSLER CORP.

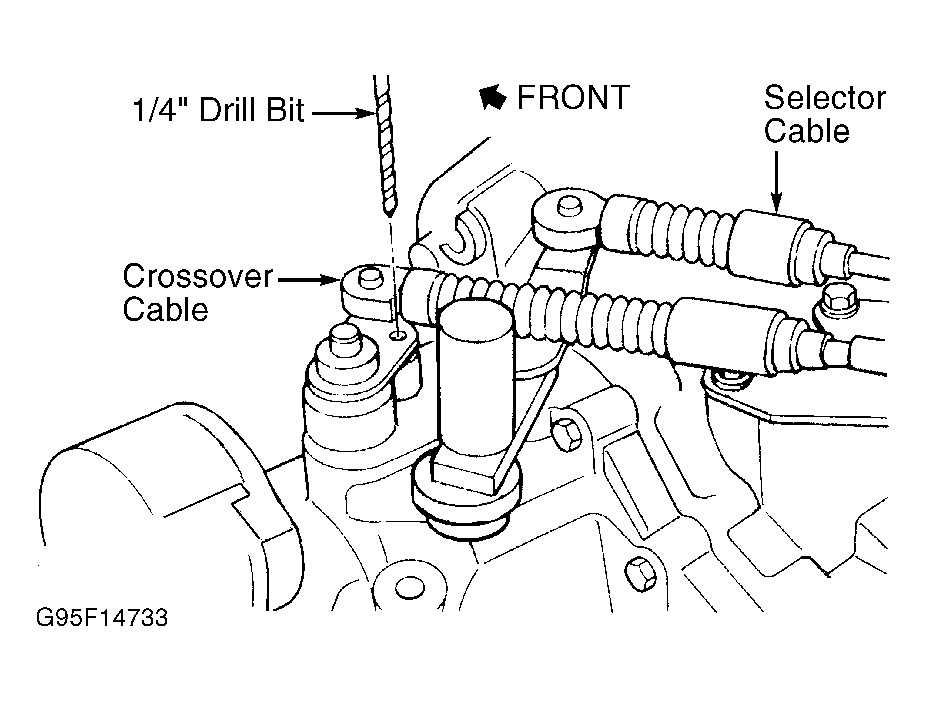

Fig 2: Pinning Crossover Cable In 3-4 Neutral Position
G95F14733Courtesy of CHRYSLER CORP.
