Component Locations

WARNING: This page is about a different car, the 2002 Dodge Neon and 2002 Chrysler Neon. However, it is still accessible from the selected car via links, so may be relevant.
RESTRAINT SYSTEM COMPONENT LOCATIONS

Component (1)Location
Air bag control module Transmission tunnel floor panel between gearshift & parking brake lever
Clockspring Top of steering column, behind steering wheel
Data link connector Under left side of steering column below instrument panel
Driver-side air bag module Front face of steering wheel
Passenger-side air bag module Right side of instrument panel, under top pad
Side impact air bag control module Inside B-pillar behind lower B-pillar trim
Side air bag module Outboard side of front seat back frame
(1) See Fig 1, Fig 2 & Fig 3 .

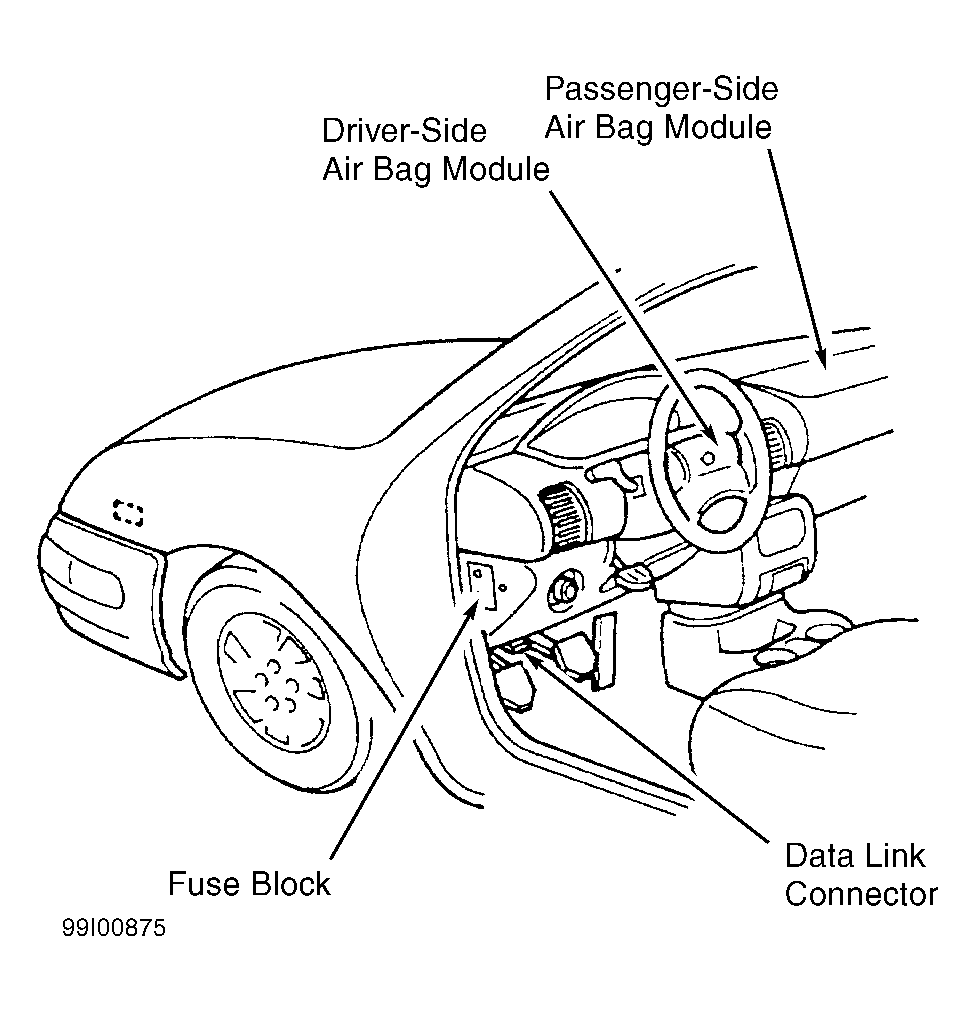

Fig 1: Locating Restraint System Components (1 Of 3)
G99I00875Courtesy of DAIMLERCHRYSLER CORP.

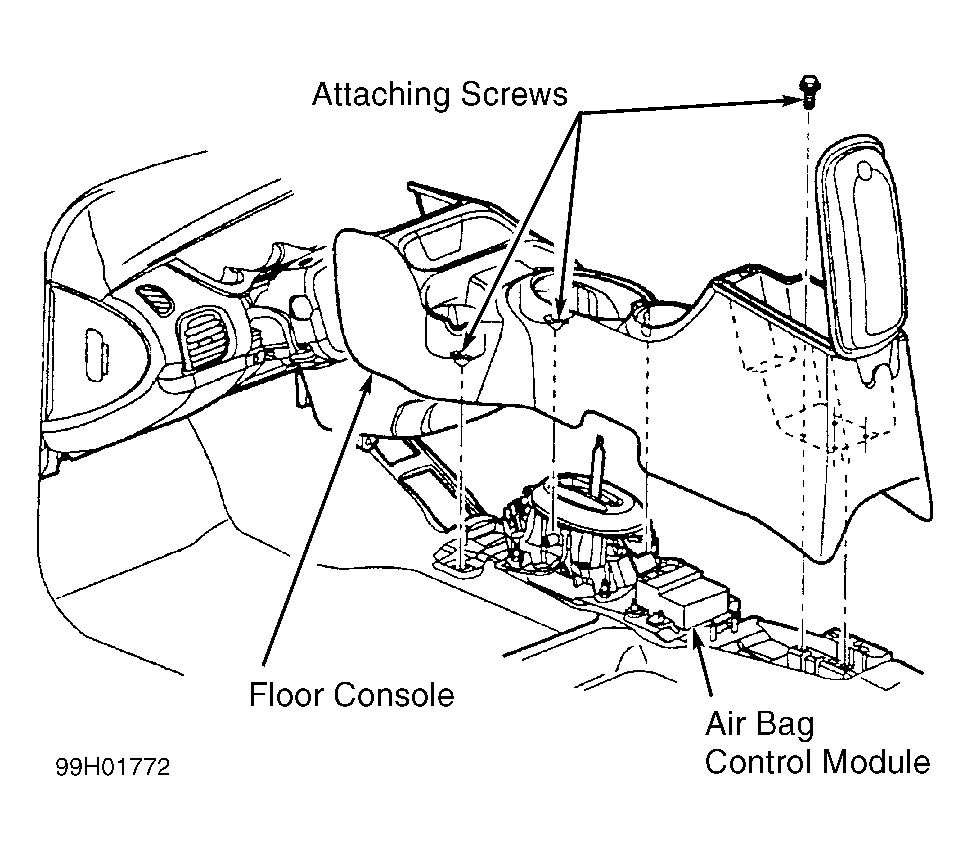

Fig 2: Locating Restraint System Components (2 Of 3)
G99H01772Courtesy of DAIMLERCHRYSLER CORP.

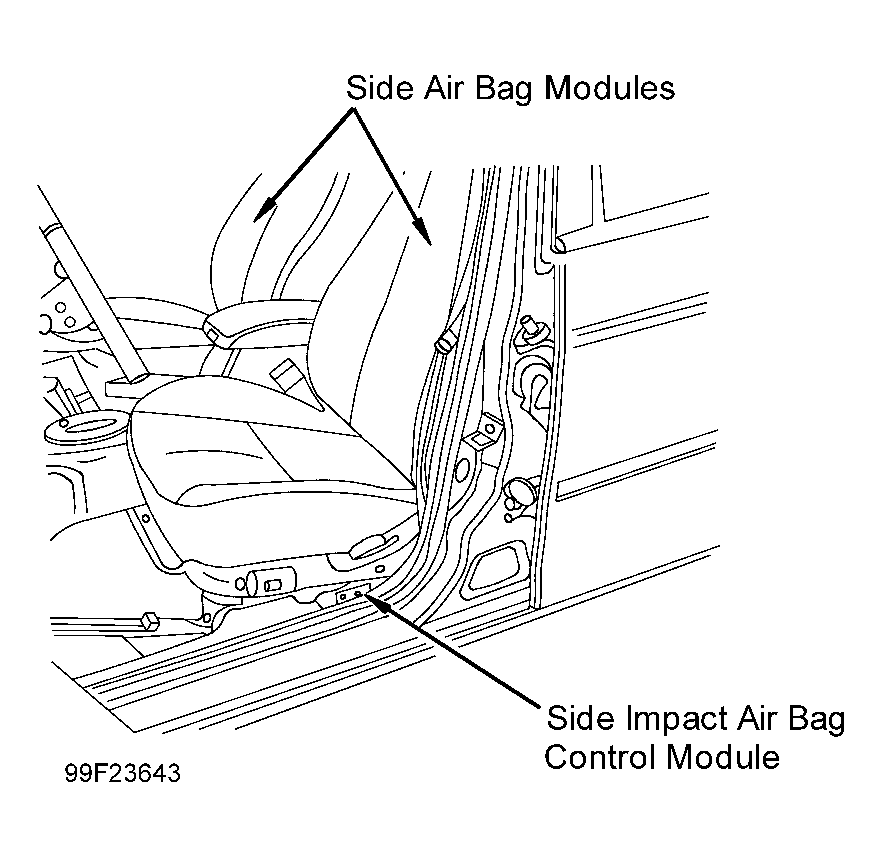

Fig 3: Locating Restraint System Components (3 Of 3)
G99F23643Courtesy of DAIMLERCHRYSLER CORP.
