Removal - Spindle

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise vehicle on jackstands or centered on a frame contact type hoist.
  2. Remove the rear wheel and tire assembly from the vehicle.
  3. Remove the rear caliper assembly from the adapter. Refer to REAR BRAKE CALIPER . After removing caliper assembly store caliper by hanging it from frame of vehicle (Fig 1 ). Do not let weight of rear caliper assembly hang from flexible brake hose. If vehicle is equipped with rear drum brakes, remove the brake flex hose bracket from the support plate and wheel cylinder.
  4. Remove rear braking disc from hub.

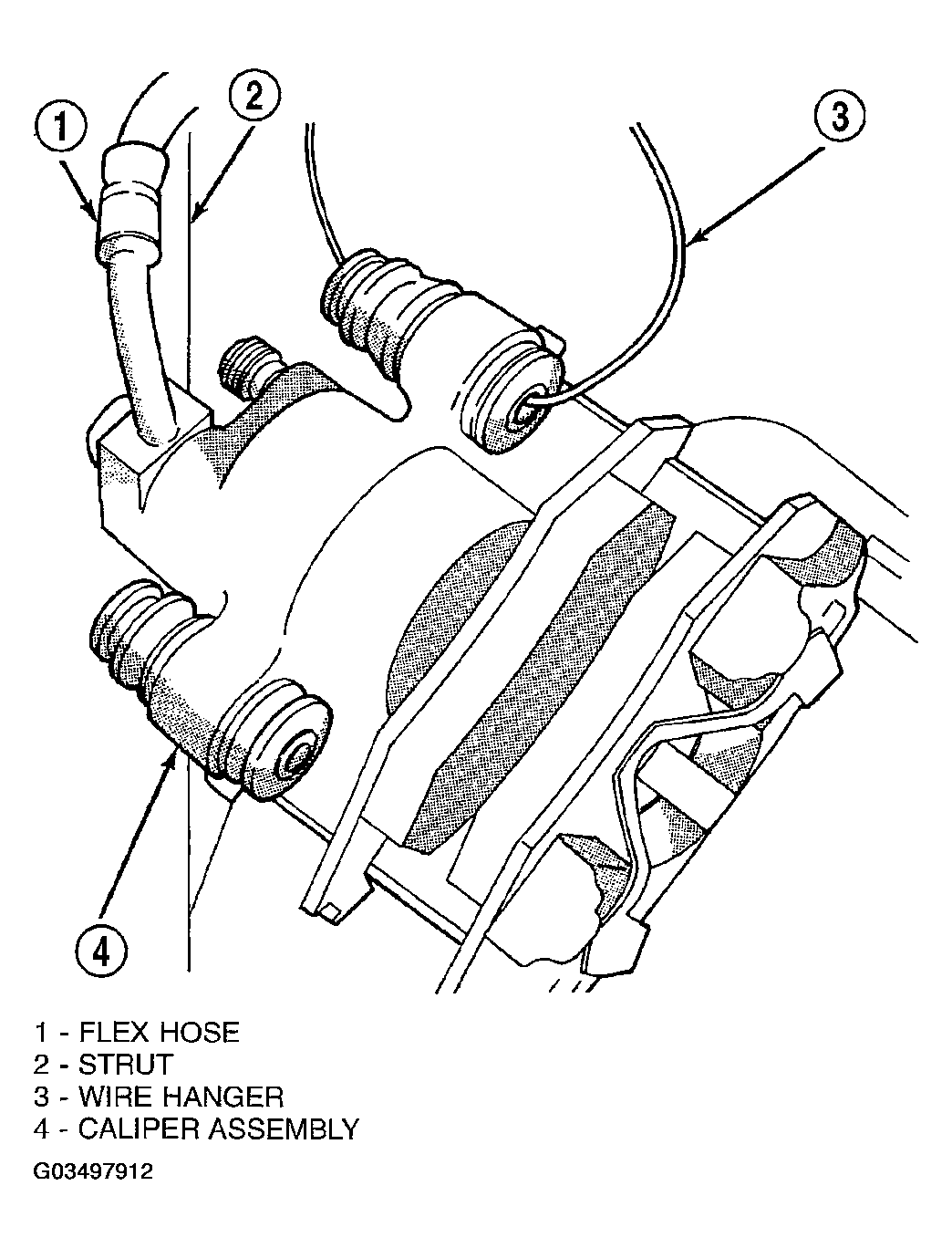

    Fig 1: Hanging Caliper
    G03497912Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove rear hub and bearing assembly cotter pin and nut retainer (Fig 2 ). Remove the hub and bearing retaining nut and washer from the spindle (Fig 2 ). Then remove hub and bearing assembly from spindle.
    Fig 2: Identifying Hub And Bearing Retaining Nut
    G03497913Courtesy of DAIMLERCHRYSLER CORP.
  6. If vehicle is equipped with antilock brakes, remove the speed sensor head from the rear disc brake adapter (Fig 3 ).
    Fig 3: Identifying Speed Sensor Head
    G03497914Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove the 4 bolts attaching the disc brake adapter to the rear spindle (Fig 4 ). Then remove the adapter, disc shield, park brake shoes and park brake cable as an assembly from the spindle.
    Fig 4: Identifying Disc Brake Adapter Mounting Bolts
    G03497915Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove the bolt attaching the trailing arm to the bracket on the bottom of the spindle (Fig 5 ).
  9. Remove the bolt (Fig 6 ) attaching the lateral links to the spindle.
    Fig 5: Identifying Trailing Arm To Bracket Bolt
    G03497916Courtesy of DAIMLERCHRYSLER CORP.
    Fig 6: Identifying Lateral Links To Spindle Attaching Bolt
    G03497917Courtesy of DAIMLERCHRYSLER CORP.
  10. Remove the pinch bolt from the spindle (Fig 7 ).
    CAUTION: When inserting center punch into rear spindle, use care so point of center punch does not puncture strut assembly.
  11. Insert a center punch into the hole on the spindle (Fig 8 ). Center punch must be tapped into the hole in the spindle until jammed into place. This will spread the spindle casting allowing it to be removed from strut assembly.
    Fig 7: Identifying Spindle Pinch Bolt
    G03497918Courtesy of DAIMLERCHRYSLER CORP.

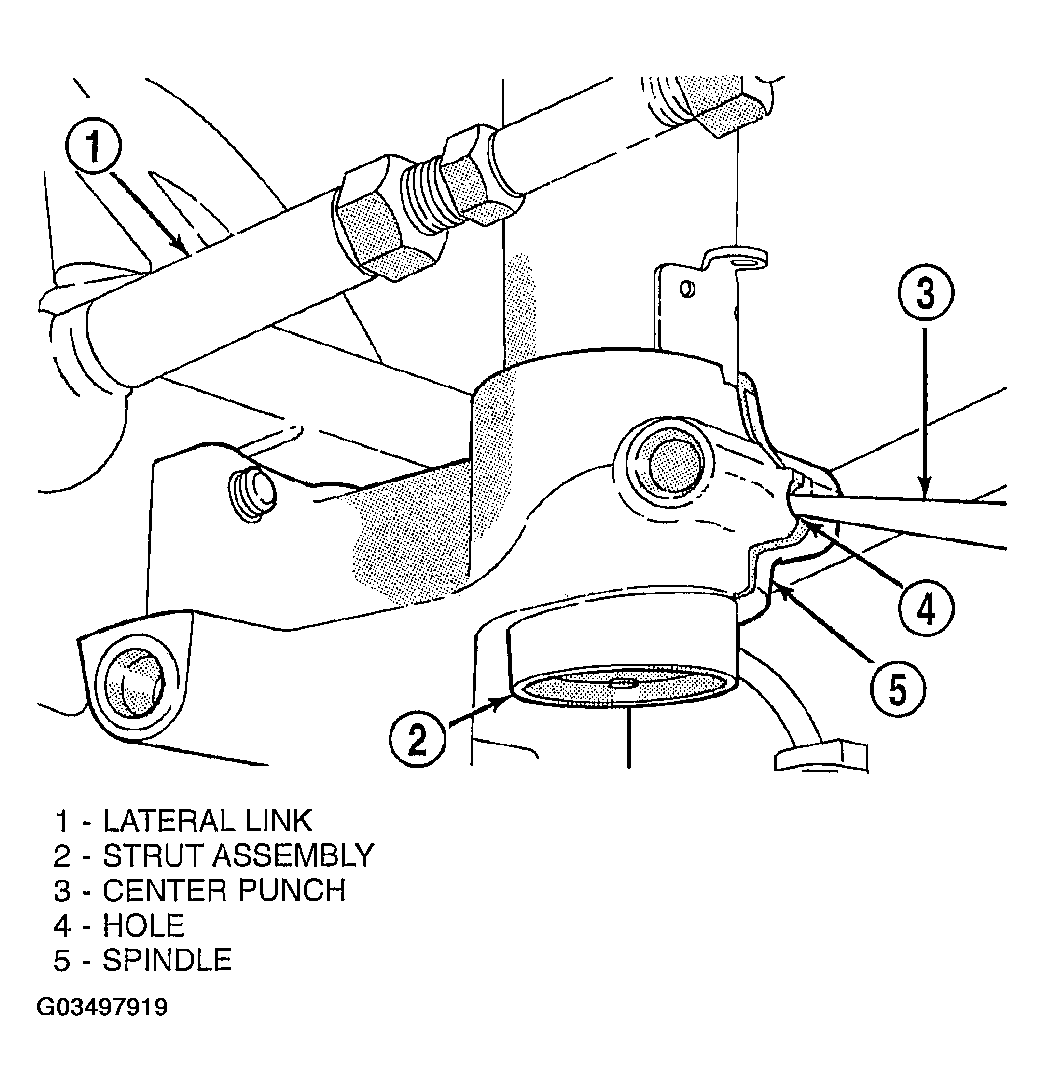

    Fig 8: Spreading Spindle Casting
    G03497919Courtesy of DAIMLERCHRYSLER CORP.
  12. Using a hammer and a brass drift punch, tap on top surface of spindle (Figure ), driving it off the end of the strut assembly.
