Radiator Fan: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove radiator upper crossmember.
  2. Disconnect radiator fan motor electrical connector.
  3. Partially drain cooling system below the level of the upper radiator hose.
  4. Disconnect upper radiator hose from radiator.
  5. Remove radiator fan attaching fasteners and upper clip (Fig 1 ).
  6. Remove radiator fan by lifting upward to clear radiator.

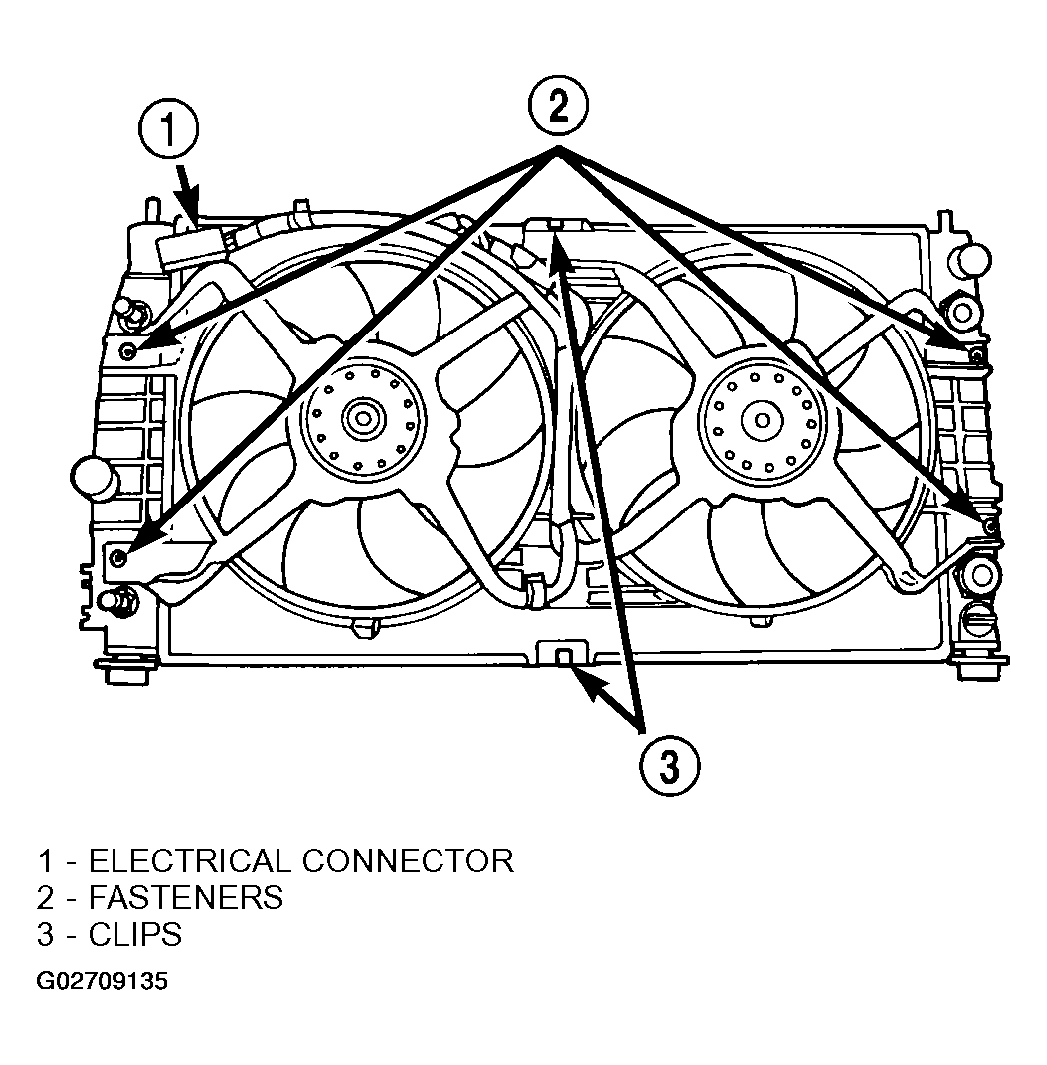

    Fig 1: Identifying Components Of Radiator Fan
    G02709135Courtesy of DAIMLERCHRYSLER CORP.
