A/C Compressor Clutch Relay: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the cover from the Power Distribution Center (PDC) (Fig 1 ).

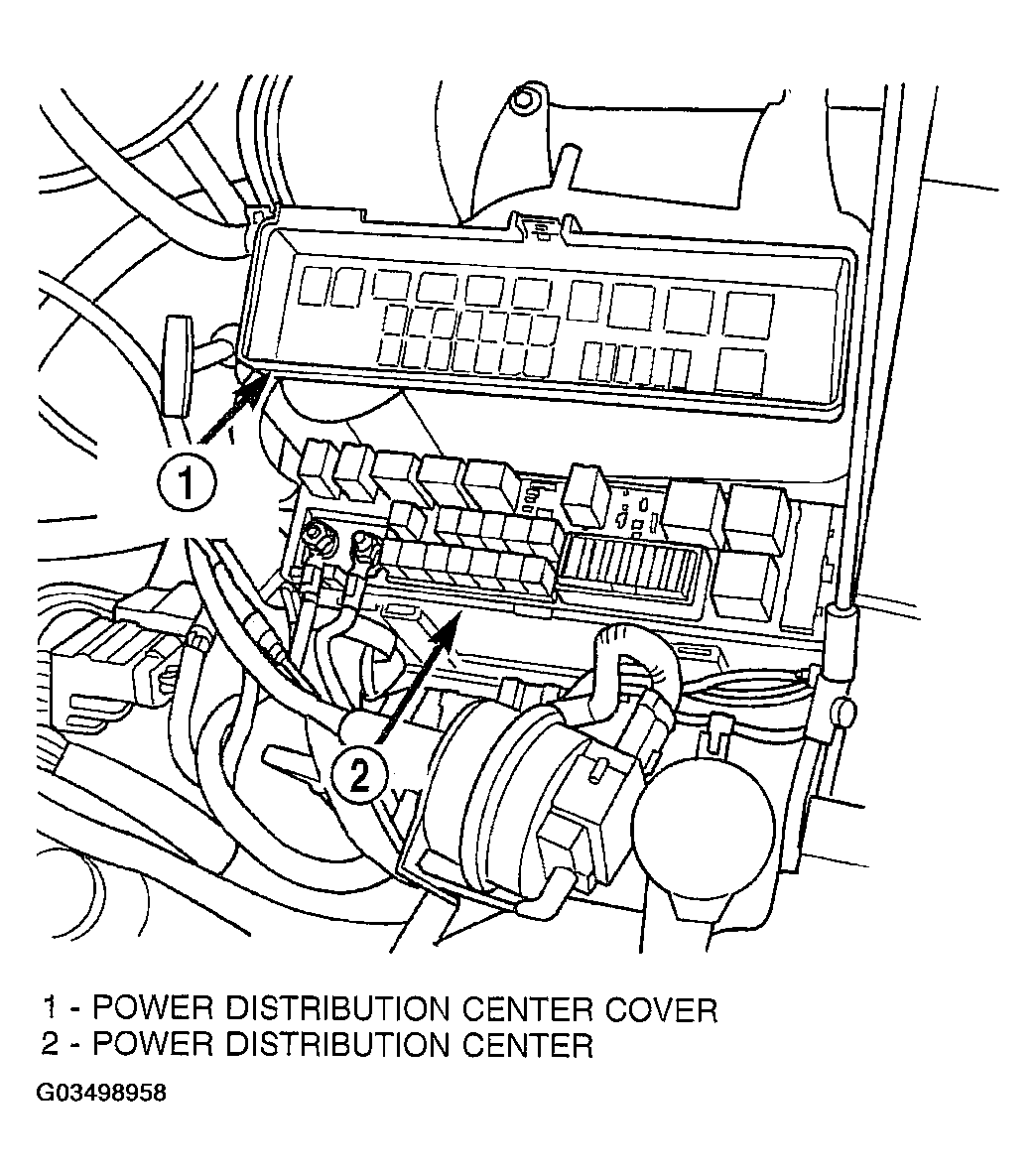

    Fig 1: Power Distribution Center (PDC)
    G03498958Courtesy of DAIMLERCHRYSLER CORP.
  3. Refer to the label on the PDC for compressor clutch relay identification and location .
  4. Unplug the compressor clutch relay from the PDC.
