Trim Panel: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not pry on door trim panel, damage to trim panel will result.
  1. Open trim plug from the pull cup and remote bezel by inserting a small flat blade tool into the notch and lifting up.
  2. Remove screw in the pull cup.
  3. Remove screw in remote bezel.
  4. Remove three screws from the bottom edge of door (Fig 1 ).
    NOTE: Clips are reusable up to three times.

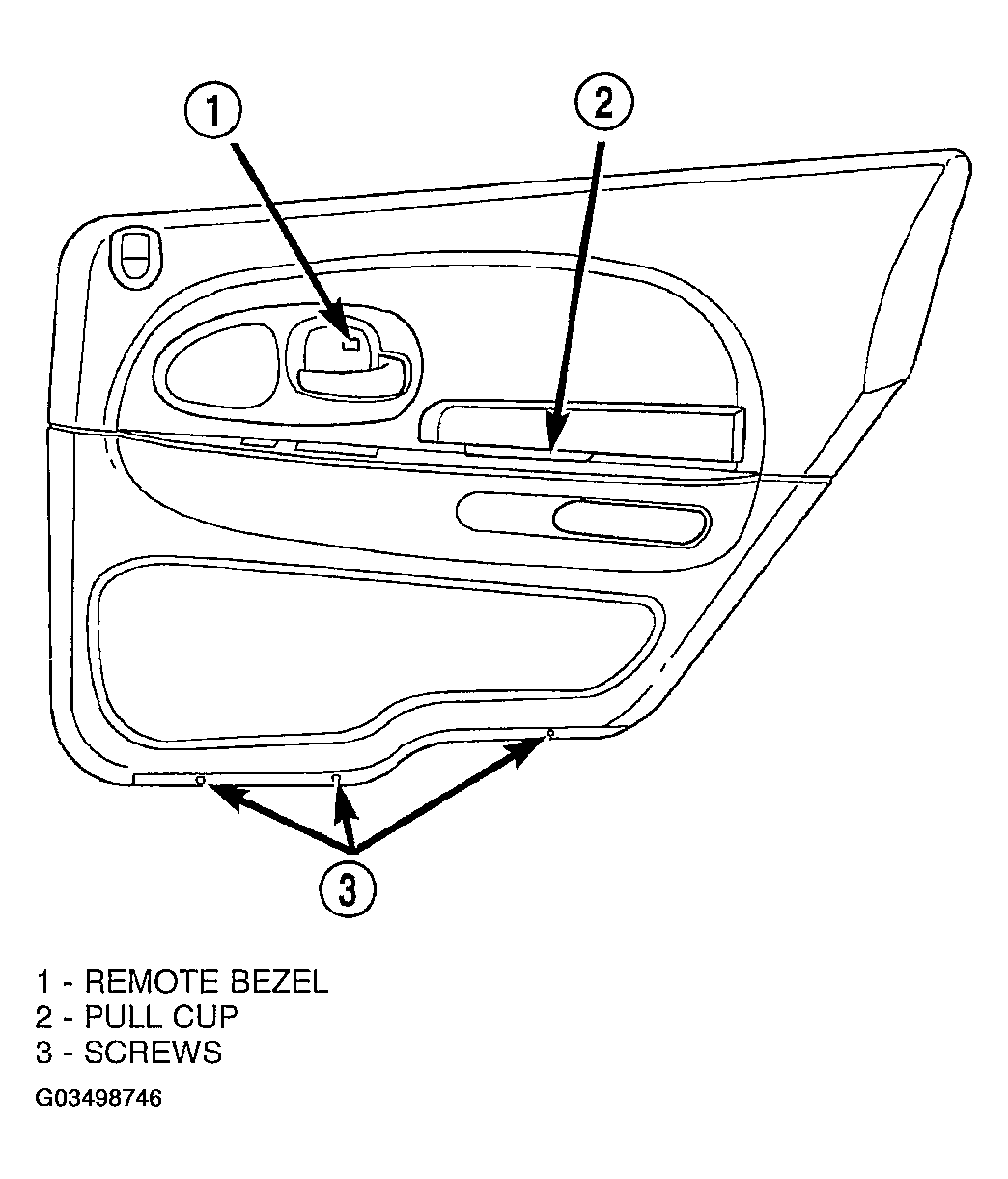

    Fig 1: Rear Door Trim Panel - Typical
    G03498746Courtesy of DAIMLERCHRYSLER CORP.
  5. Using a trim tool, disengage the retaining clips from the door trim panel to the sheet metal inner panel, two clips at the rear of panel and one at the front of the panel (Fig 2 ).

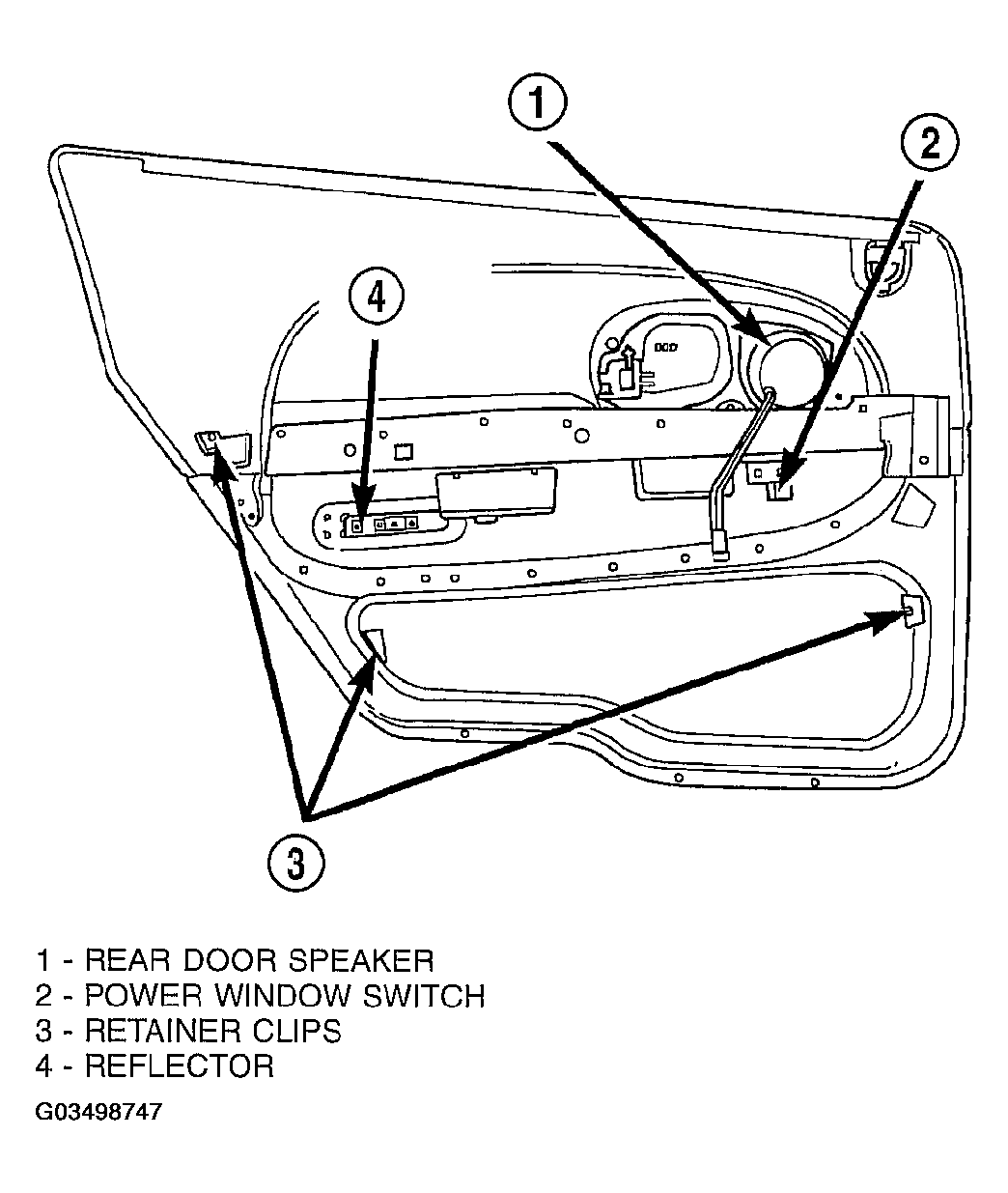

    Fig 2: Rear Door Inner Trim Panel - Typical
    G03498747Courtesy of DAIMLERCHRYSLER CORP.
  6. Raise trim panel up over the door flange and being careful to hold the panel securely.
    CAUTION: Failure to hold the door trim panel before disengagement of the linkage will result in remote handle damage.
  7. Disconnect the remote linkage from the door remote handle.
  8. Remove the wire connect from the rear door speaker, if equipped.
  9. Disconnect power window switch wire connector.
  10. Disconnect wiring harness clips from the trim panel.
  11. Remove trim panel from door.
