Section 112 (Door System - Rear): Hinge: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark outline of hinge on B-pillar and door end frame.
  2. Remove nut and bolt attaching hinge to B-pillar. Refer to DOOR  .
  3. Remove nut and bolt attaching hinge to door end frame (Fig 1 ).

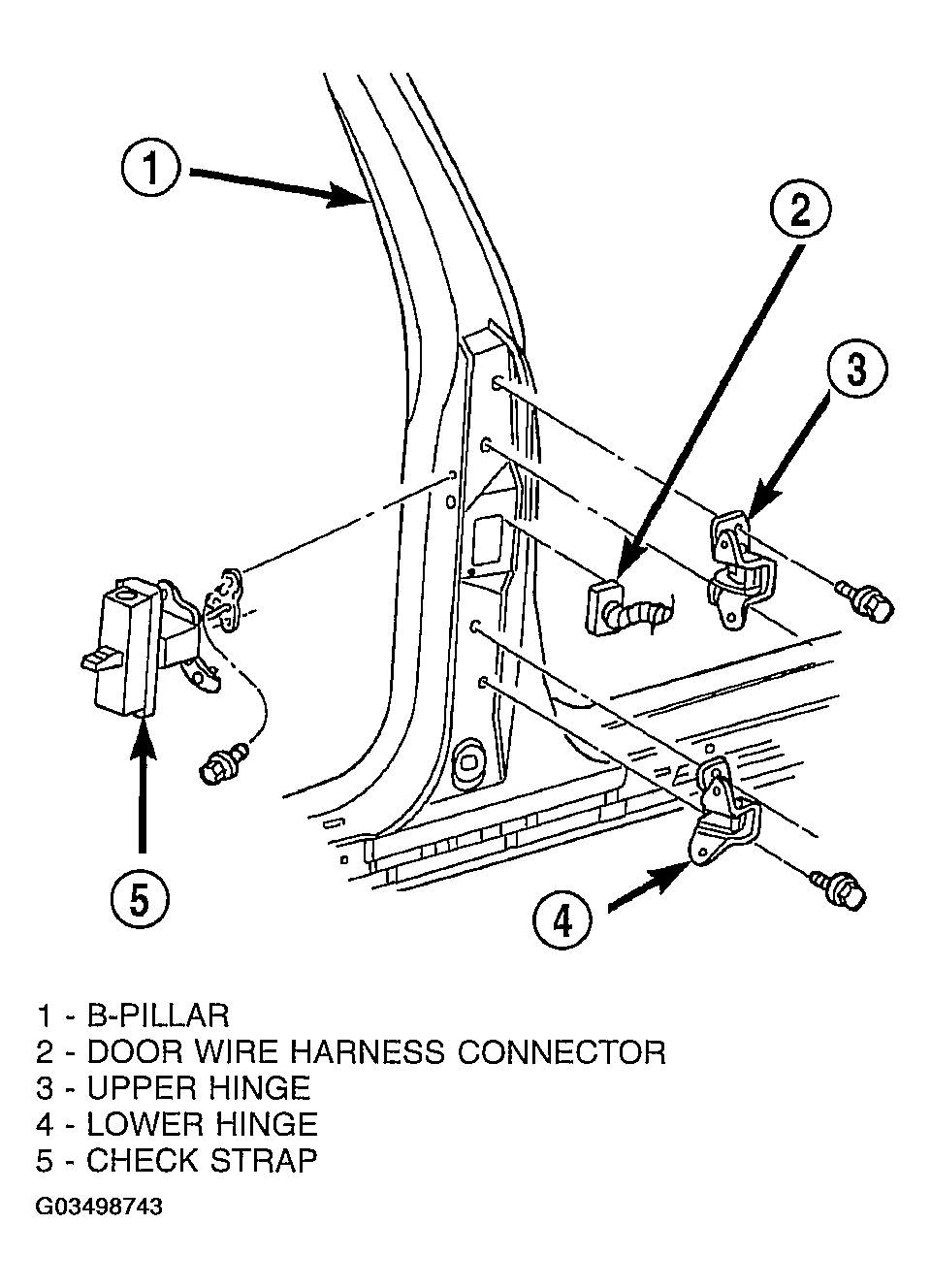

    Fig 1: Rear Door Hinge
    G03498743Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove hinge from door.
