Oil Pump: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
It is necessary to remove the oil pump body to service the oil pump rotors.
The oil pump pressure relief valve can be serviced by removing the oil pan. (Refer to OIL PRESSURE RELIEF VALVE )
- Drain the cooling system. (Refer to STANDARD PROCEDURE )
- Remove the radiator fan. (Refer to RADIATOR )
- Remove the accessory drive belts. (Refer to ACCESSORY DRIVE )
- Remove the timing belt. (Refer to TIMING BELT AND SPROCKETS )
- Remove the crankshaft sprocket. (Refer to TIMING BELT AND SPROCKETS )
- Remove the oil pan. (Refer to OIL PAN )
- Remove the oil pickup tube.

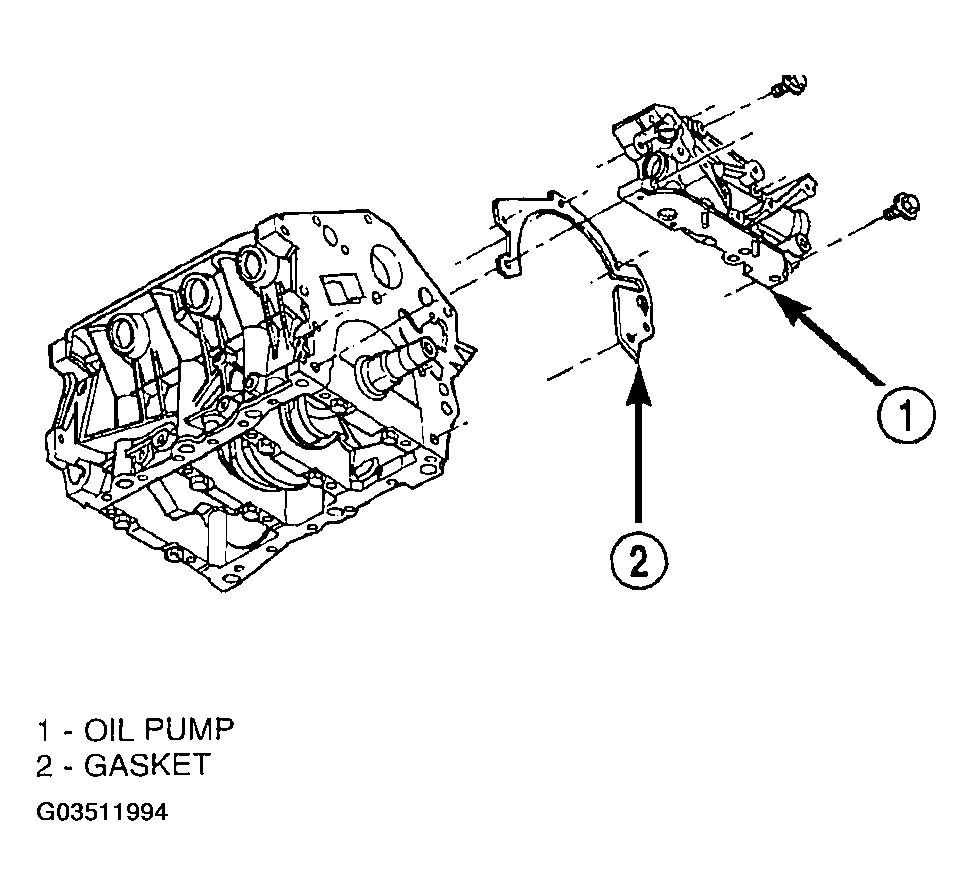

- Remove the oil pump fasteners. Remove pump and gasket from engine (Fig 1 ).
