Ignition Switch: Installation

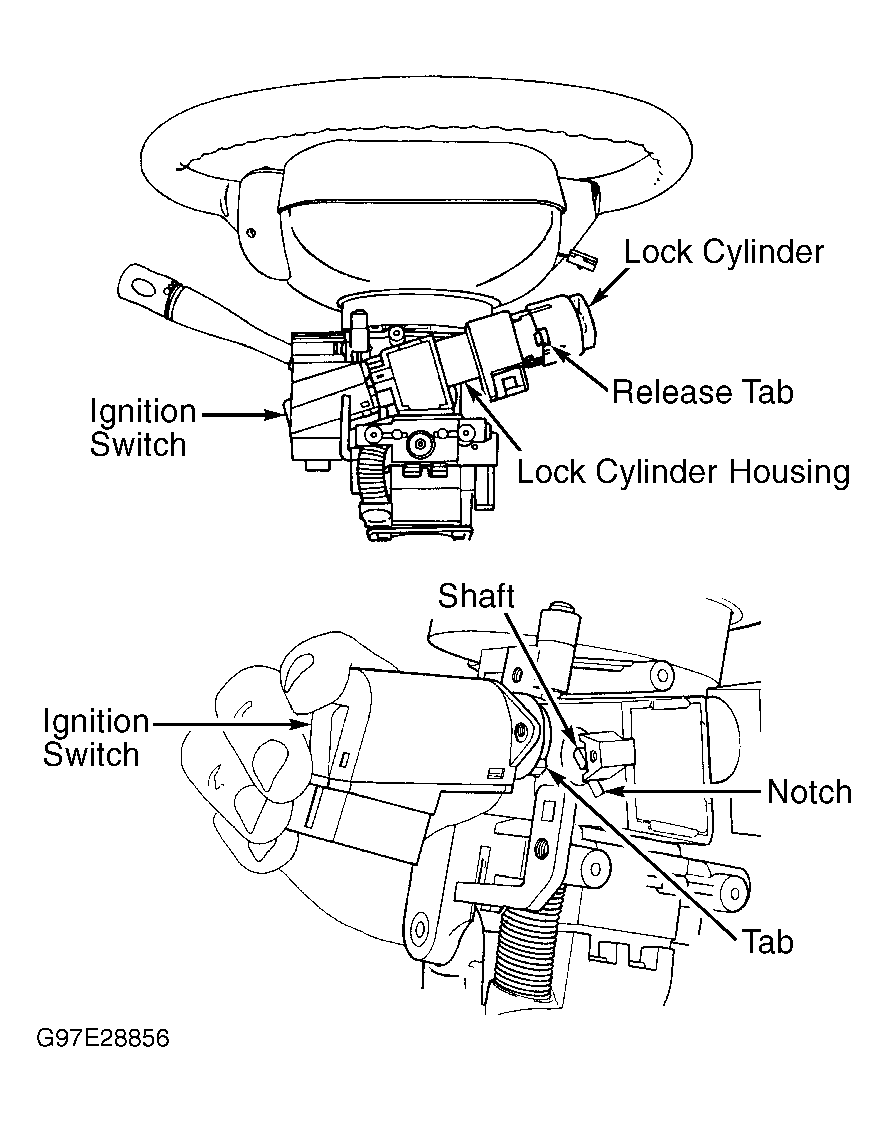

- Note location of tab on ignition switch and notch on lock cylinder housing. See Fig 1
.
- Install ignition switch so slot in end of ignition switch fits over shaft in end of lock cylinder housing. Ensure tab on ignition switch engages with notch on lock cylinder housing. It may be necessary to use ignition key to rotate lock cylinder, to align ignition switch with lock cylinder housing.
- To install remaining components, reverse removal procedure. Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM
.
Courtesy of CHRYSLER CORP.
