Floor Shift

  1. Remove shifter handle. Remove console bezel. Move gear shift lever to Park. Turn ignition switch to LOCK position.
  2. If interlock cable is being replaced, remove pin to allow cable to self adjust. Press locking clip to secure adjustment. If interlock cable is not being replaced, pin will not exist. Loosen locking clip on interlock cable to allow cable to self adjust. Press locking clip to secure adjustment.
  3. Install bezel on shifter console. Install shifter handle.

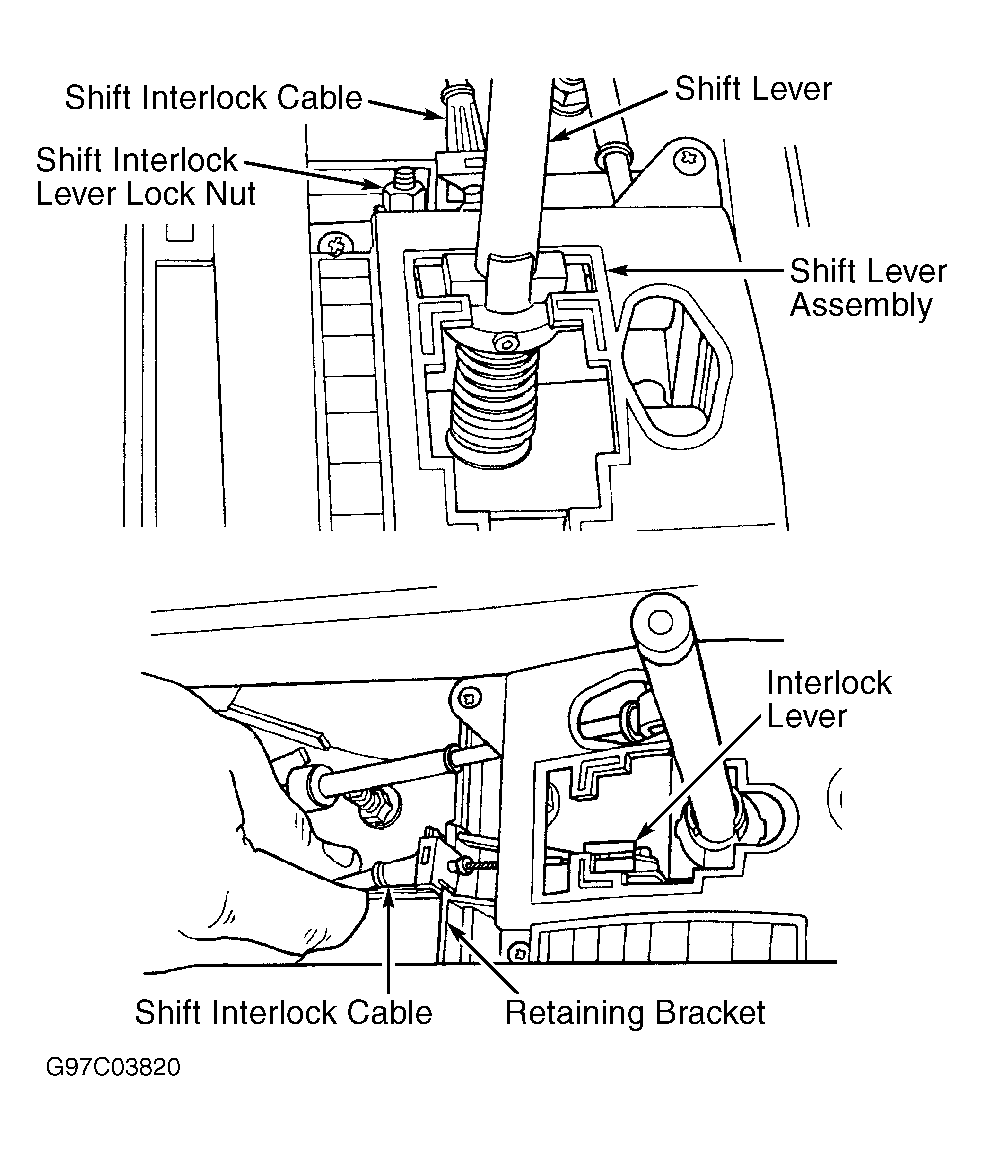

Fig 1: Locating Shift Interlock Cable & Components (Floor Shift Models)
G97C03820Courtesy of CHRYSLER CORP.
