Wiper Blade Element: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wiping element from blade assembly by grasping and pulling stopper of blade element out of end claw together with vertebra (metal rails).
  2. Remove wiping element and vertebra by sliding them out of claws.
  3. Remove vertebra from wiping element (Fig 1 ).

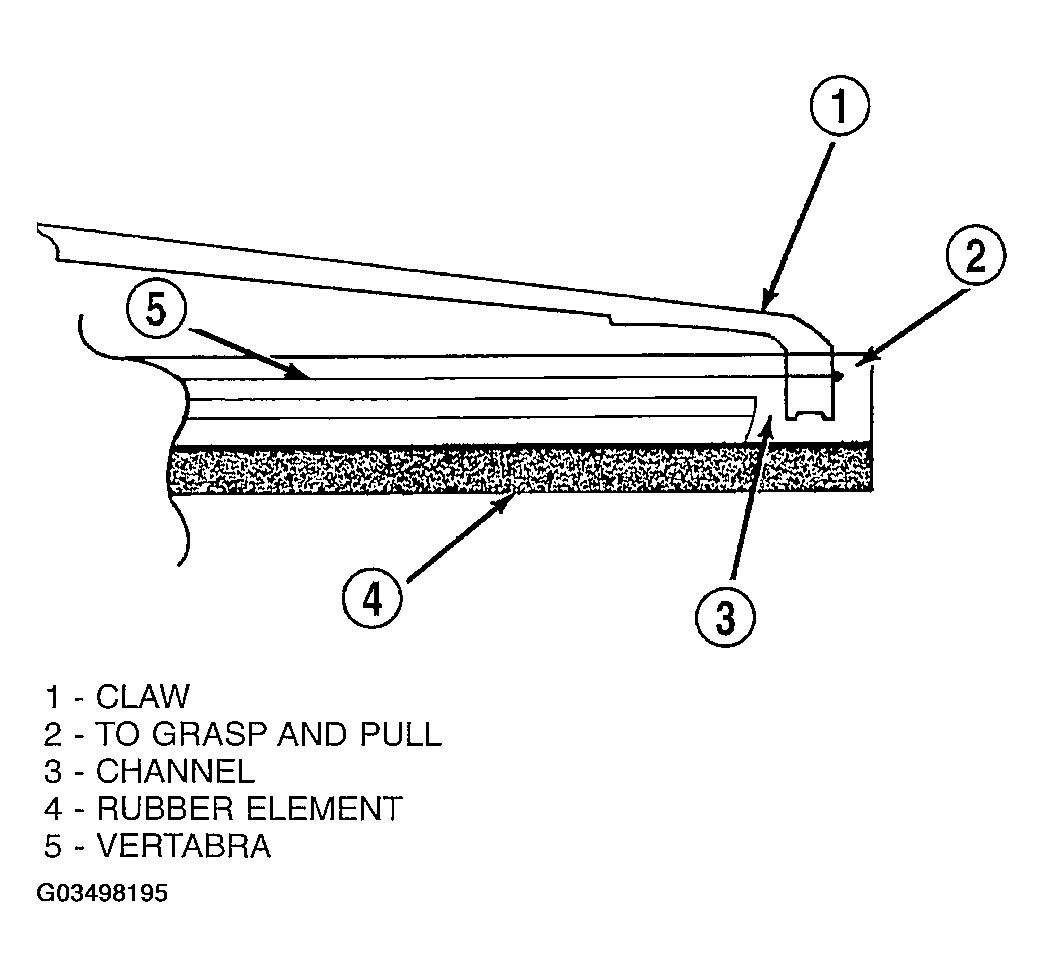

    Fig 1: Wiper Blade And Element
    G03498195Courtesy of DAIMLERCHRYSLER CORP.
