Suction Line: Removal

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant from the system. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Remove one M13 nut holding the suction line to the expansion valve. See Fig 1 and Fig 2 .
Remove the engine air inlet tube and air distribution duct for access to the compressor lines. Remove the bolt holding the line at the compressor using a 6 mm Allen wrench (3.2L and 3.5L), or M10 Hex (2.7L). See Fig 3 and Fig 4 . Remove the line by pulling the rear end of the line up out of the vehicle with the compressor end following through the tie-rod area.

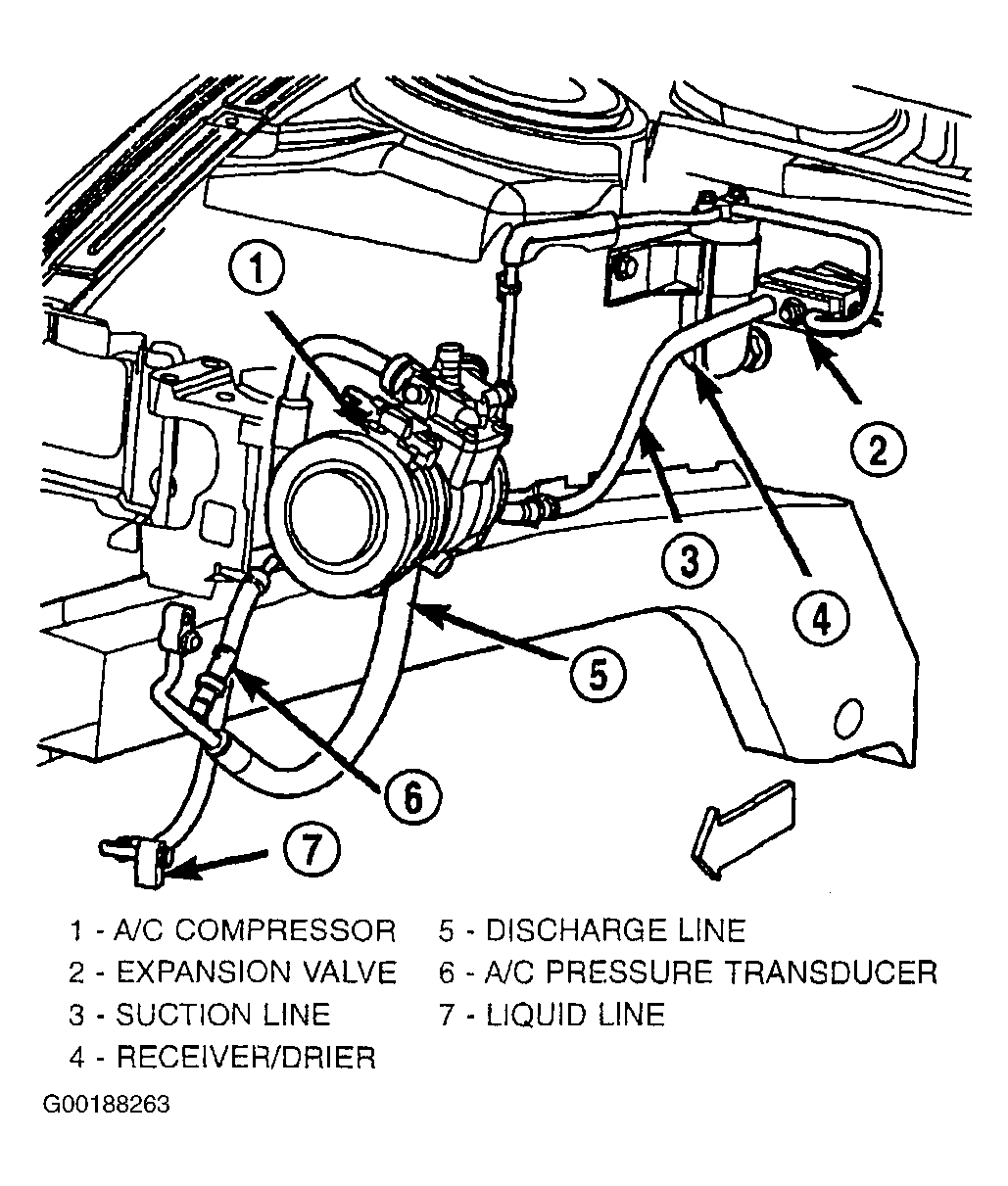

Fig 1: Removing Refrigerant Lines (3.2L & 3.5L Engine)

Courtesy of CHRYSLER CORP.

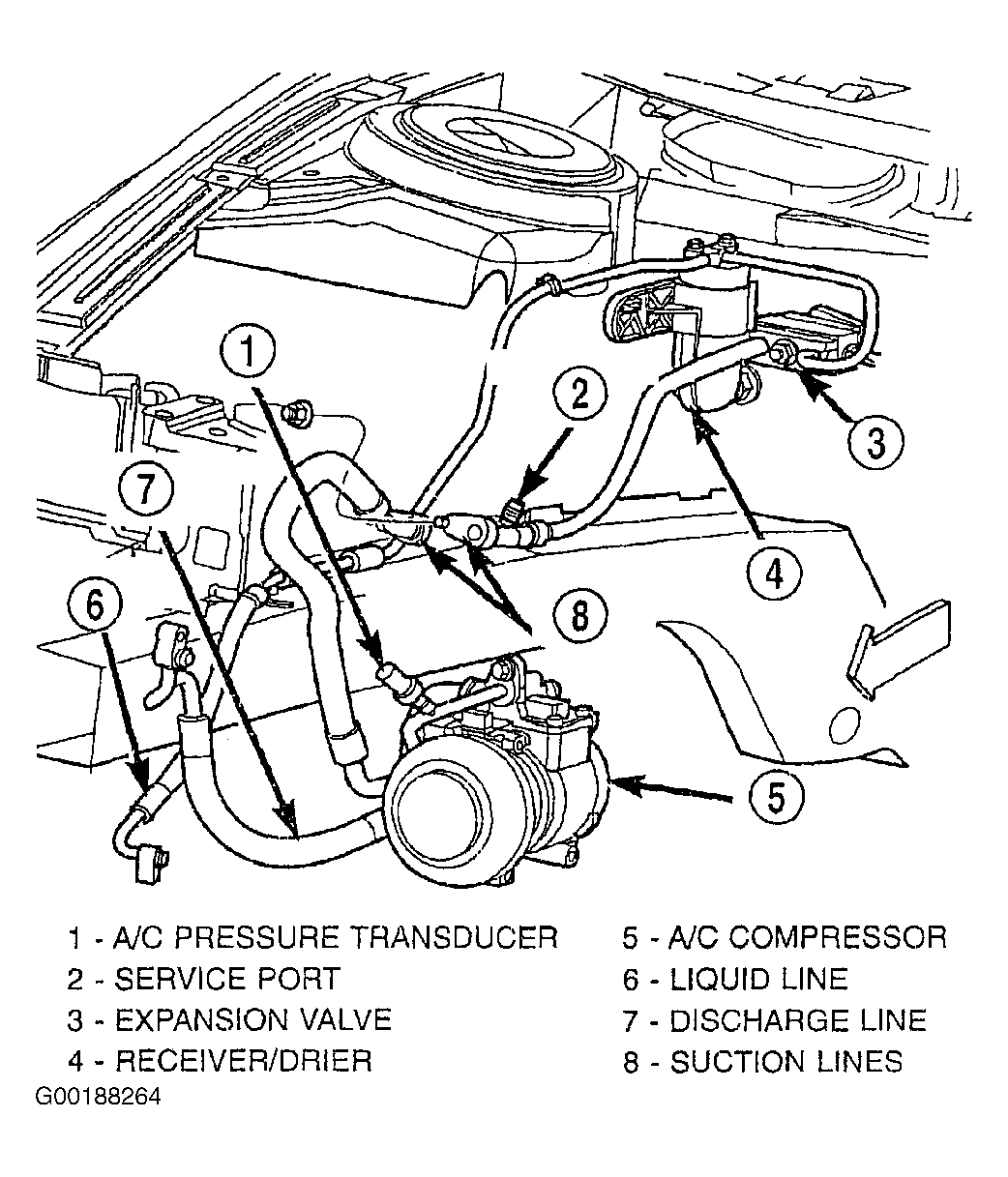

Fig 2: Removing Refrigerant Lines (2.7L Engine)

Courtesy of CHRYSLER CORP.

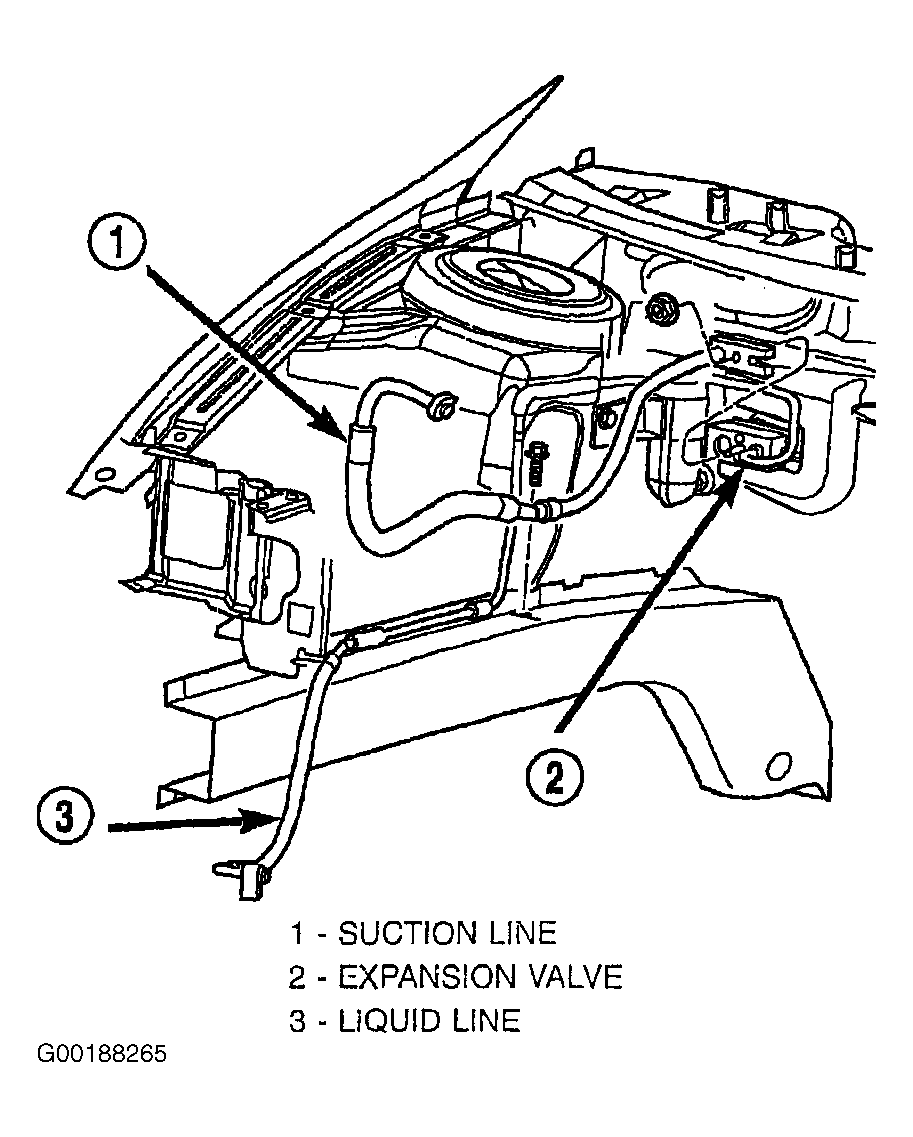

Fig 3: Removing Suction Line (3.2L & 3.5L Engine)

Courtesy of CHRYSLER CORP.

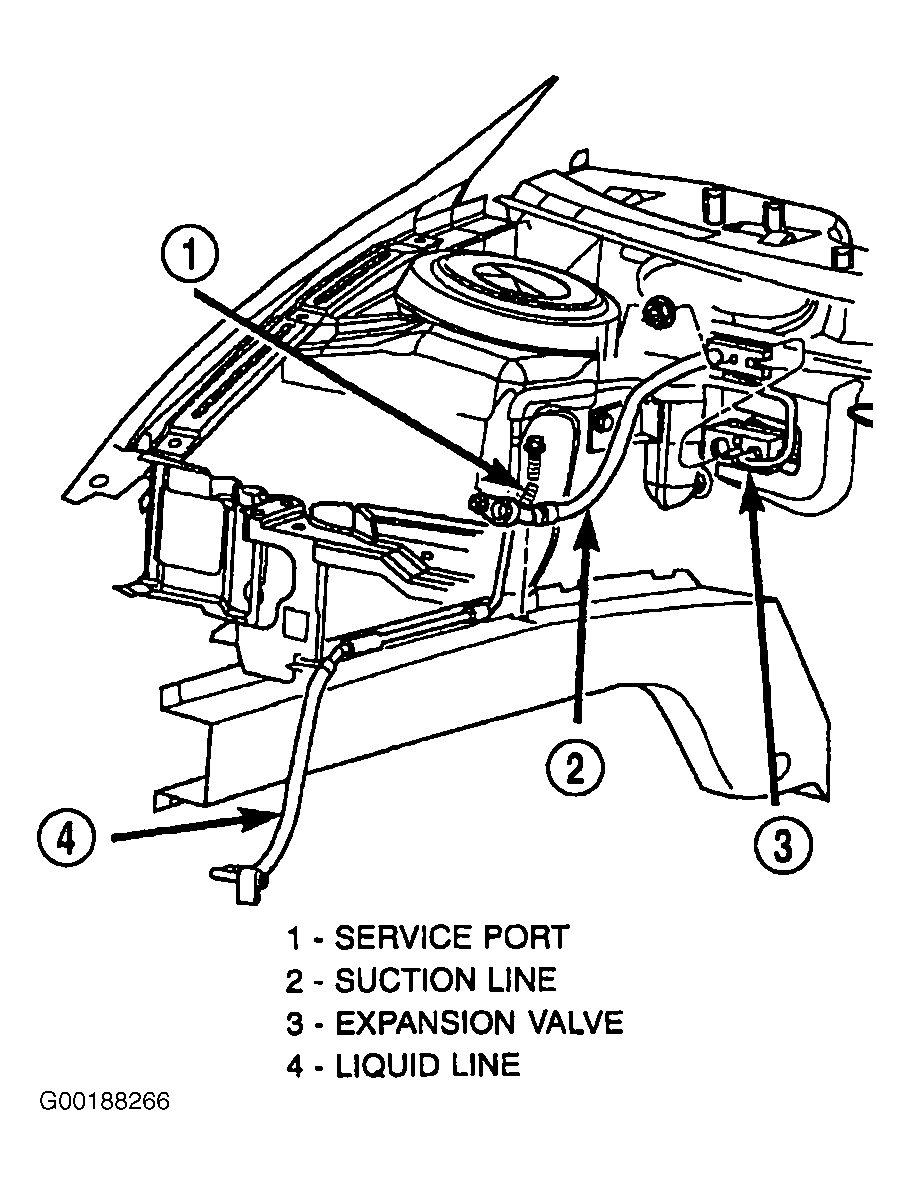

Fig 4: Removing Suction Lines (2.7L Engine)

Courtesy of CHRYSLER CORP.
