Exhaust Manifold - Right: Installation

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

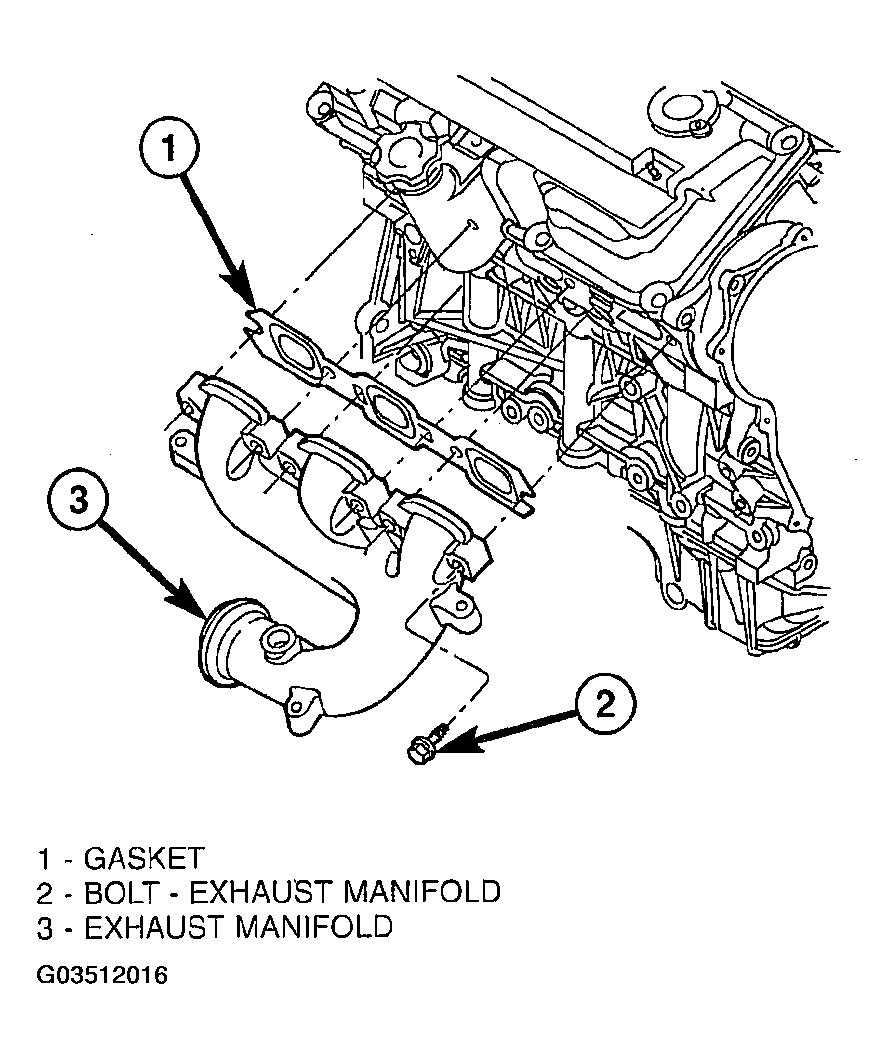

  1. Install exhaust manifold and gasket. Tighten bolts starting at the center working outward to 23 N.m (200 in. lbs.) (Figure ).
  2. Install heat shields and tighten attaching bolts to 12 N.m (105 in. lbs.) (Figure ).
  3. Install oxygen sensor to manifold and connect electrical connector.
  4. Install the A/C compressor mounting bracket.
  5. Install engine oil dipstick tube.
  6. Install the A/C compressor and drive belt. For belt installation procedure, (Refer to ACCESSORY DRIVE ).
  7. Install a new V-Band clamp and tighten to 11 N.m (100 in. lbs.).
  8. Raise vehicle on hoist.
  9. Install the exhaust system. (Refer to EXHAUST SYSTEM )
  10. Install and/or tighten nut attaching converter pipe support to transaxle mount to 47 N.m (35 ft. lbs.).
  11. Lower the vehicle.
  12. Install air cleaner housing and air inlet tube.
  13. Connect negative cable.
