Removal & Installation (Sebring Convertible, Sebring Sedan & Stratus Sedan - 2.7L)

1. For Crankshaft Position (CKP) sensor location, see Fig 1. Disconnect negative battery cable. Remove air cleaner. Disconnect CKP sensor harness connector. Remove bolt and CKP sensor.
2. To install, reverse removal procedure. Tighten CKP sensor bolt to specification. See TORQUE SPECIFICATIONS .

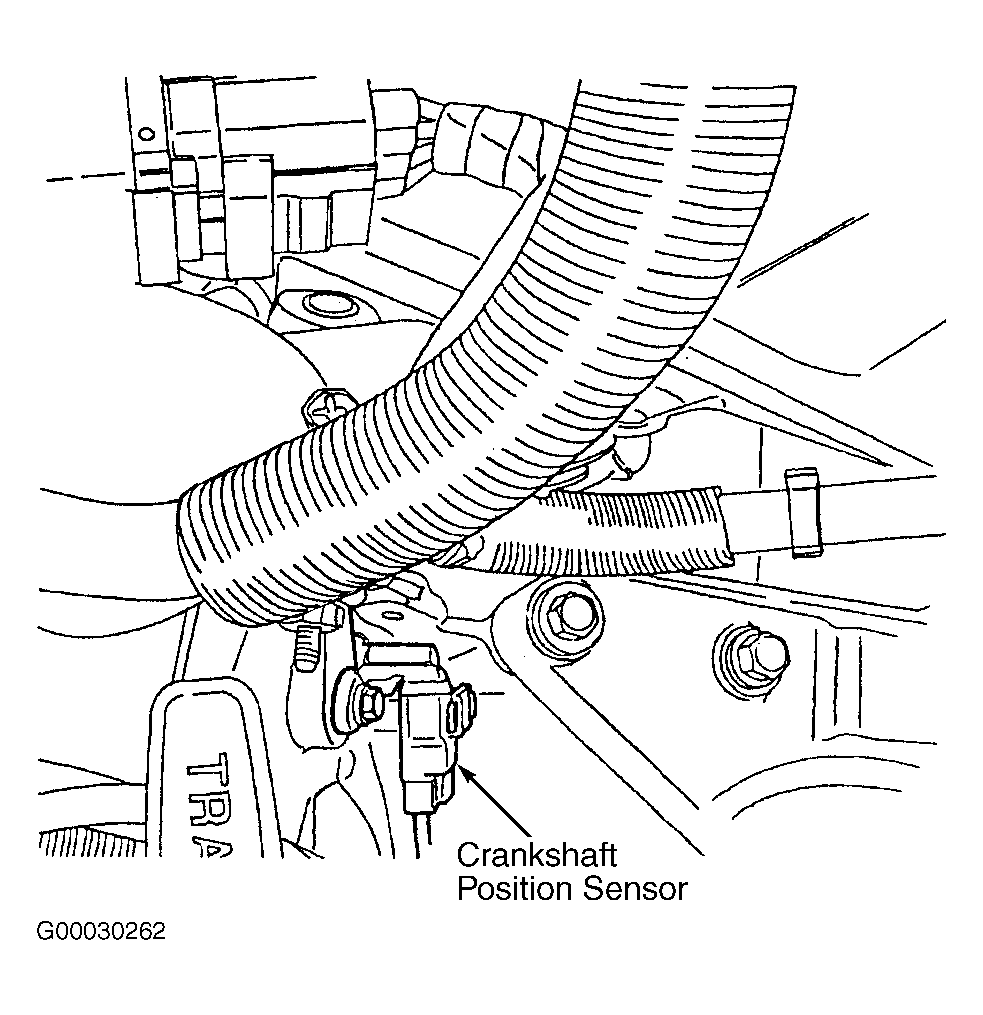

Fig 1: Locating Crankshaft Position Sensor (Sebring Convertible, Sebring Sedan & Stratus Sedan - 2.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION
