Removal & Installation (Sebring Convertible, Sebring Sedan & Stratus Sedan)

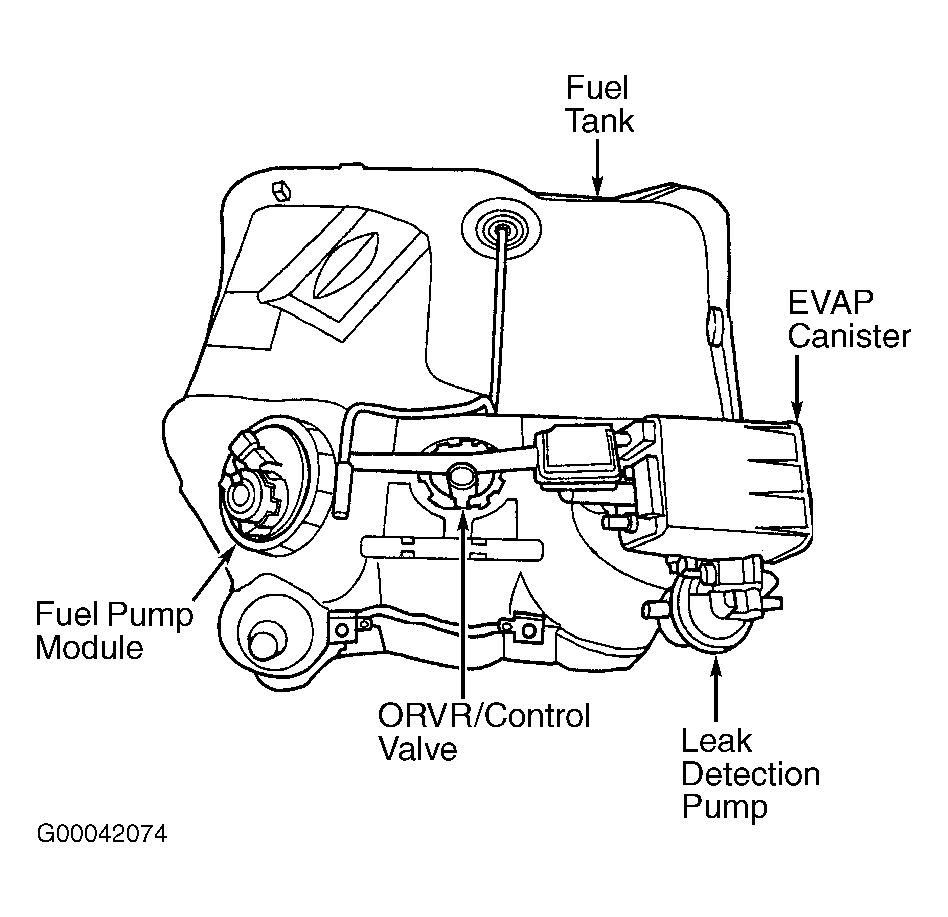

Leak Detection Pump (LDP) is located on fuel tank. See Figure. Remove fuel tank. See FUEL TANK  under FUEL SYSTEMS. Disconnect hoses from EVAP canister. Remove LDP from EVAP canister. To install, reverse removal procedure.
