Component Locations

NOTE: For component location see illustrations. See Fig 1 -Fig 4 .
COMPONENT LOCATIONS

Component Location
Body Control Module (BCM) On Back Of Junction Block
Ignition Switch On Right Side Of Steering Column
Data Link Connector Under Left Side Of Instrument Panel, Above Brake Pedal
Junction Block Behind Left Instrument Panel End Cap
Multifunction Switch On Left Side Of Steering Column
Power Distribution Center Left Front Side Of Engine Compartment
Washer Fluid Level Switch Left Front Corner Of Engine Compartment
Washer Pump Left Front Corner Of Engine Compartment
Washer Reservoir Left Front Corner Of Engine Compartment
Wiper/Washer Switch Part Of Multifunction Switch
Fig 1: Locating Body Control Module & Junction Block
G98E00083Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Locating Data Link Connector
G98I00156Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Locating Power Distribution Center
G00032163Courtesy of DAIMLERCHRYSLER CORP.

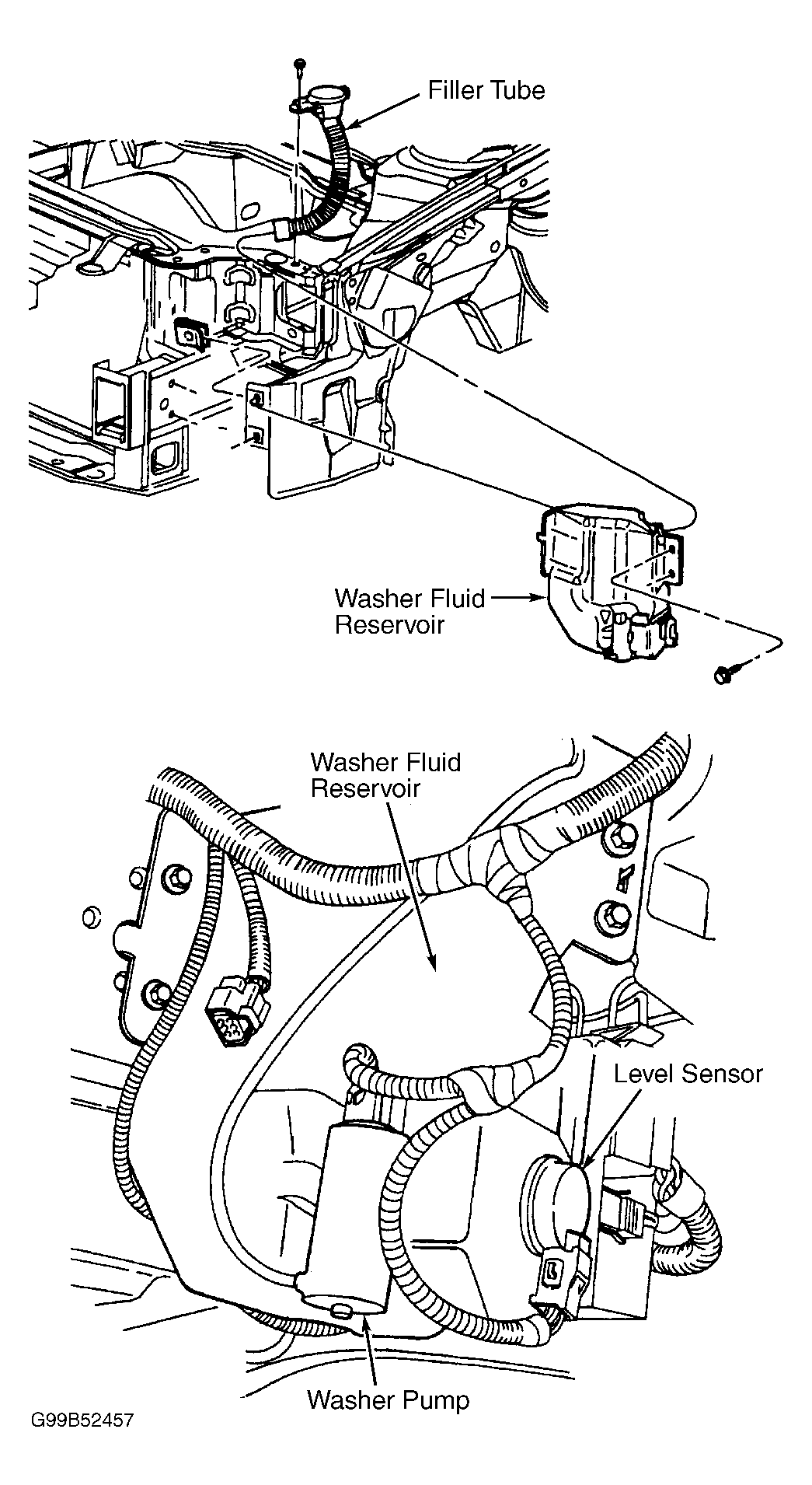

Fig 4: Locating Windshield Washer Reservoir & Components
G99B52457Courtesy of DAIMLERCHRYSLER CORP.
