Front Wiper/Washer Switch
WARNING: This page is about a different car, the 2001 Dodge Grand Caravan, 2001 Dodge Caravan, 2001 Chrysler Voyager, and 2001 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Wiper/washer switch is part of multifunction switch, and is serviced as an assembly.

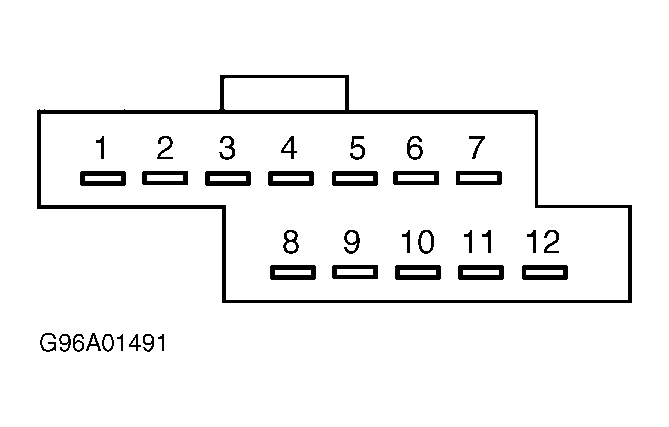

Disconnect wiper/washer switch connector. Measure resistance between appropriate switch terminals with switch in specified position. See WIPER/WASHER SWITCH RESISTANCE table. See Fig 1 . If resistance is not as specified, replace multifunction switch.
WIPER/WASHER SWITCH RESISTANCE
| Switch Position | Between Terminals No. | Ohms | |||||
|---|---|---|---|---|---|---|---|
| Off | 6 & 7 | (1) | |||||
| Delay | |||||||
| 1 | 6 & 7 | 7920-8080 | |||||
| 2 | 6 & 7 | 5940-6060 | |||||
| 3 | 6 & 7 | 4455-4545 | |||||
| 4 | 6 & 7 | 3465-3535 | |||||
| 5 | 6 & 7 | 2475-2525 | |||||
| 6 | 6 & 7 | 1485-1515 | |||||
| Low | 6 & 7 | 990-1010 | |||||
| High | 6 & 7 | 990-1010 | |||||
| Wash | 6 & 11 | (2) | |||||
|
|||||||
