| Air Compressor Bracket-To-Water Pump Bolt |
30 (41) |
| Air Compressor Support Bolt |
30 (41) |
| Air Compressor-To-Bracket Bolt |
50 (68) |
| Camshaft Sprocket Bolt |
40 (54) |
| Connecting Rod Nut |
| Step 1 |
40 (54) |
| Step 2 |
Additional 1/4 Turn |

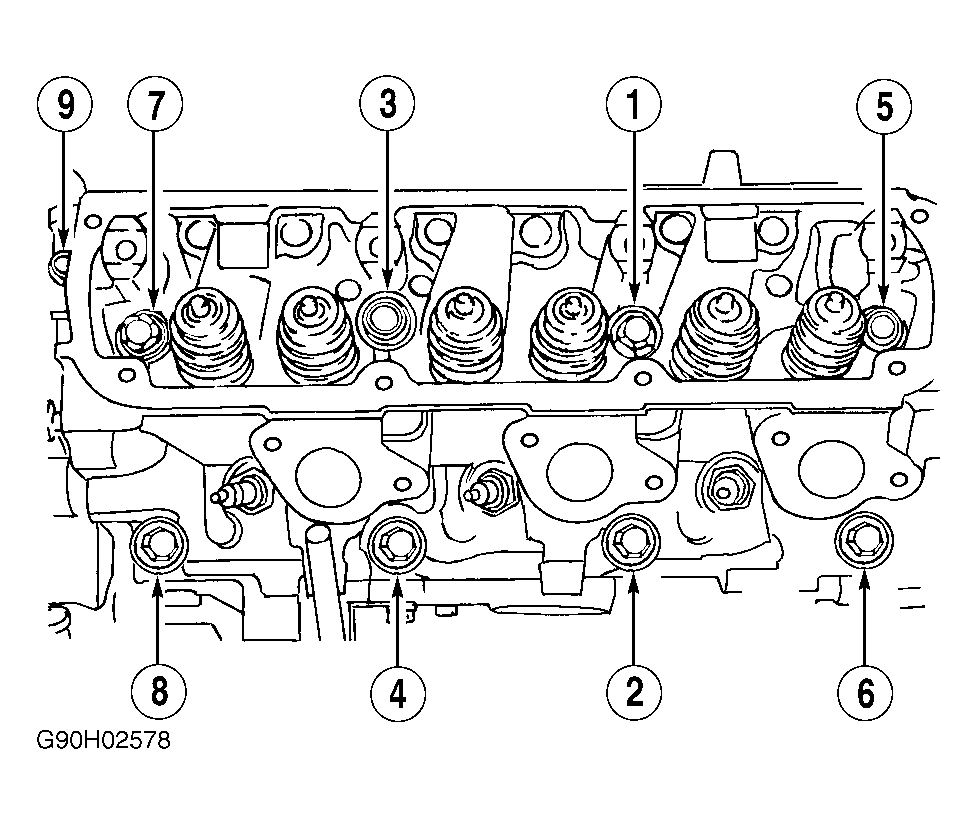

| Cylinder Head Bolt |
| Step 1 |
45 (61) |
| Step 2 |
65 (88) |
| Step 3 |
65 (88) |
| Step 4 |
Additional 1/4 Turn |
| Engine Bracket Bolt |
40 (54) |
| Exhaust Crossover Pipe Bolt |
25 (34) |
| Exhaust Manifold Bolt |
17 (23) |
| Flex Plate-To-Crankshaft Bolts |
70 (95) |
| Front Engine Mount Through-Bolt |
50 (68) |
| Front Engine Mount-To-Cylinder Block Bolt |
40 (54) |
| Front Engine Mount-To-Frame Rail Bolt/Nut |
40 (54) |
| Generator Bracket-To-Manifold Bolt |
40 (54) |

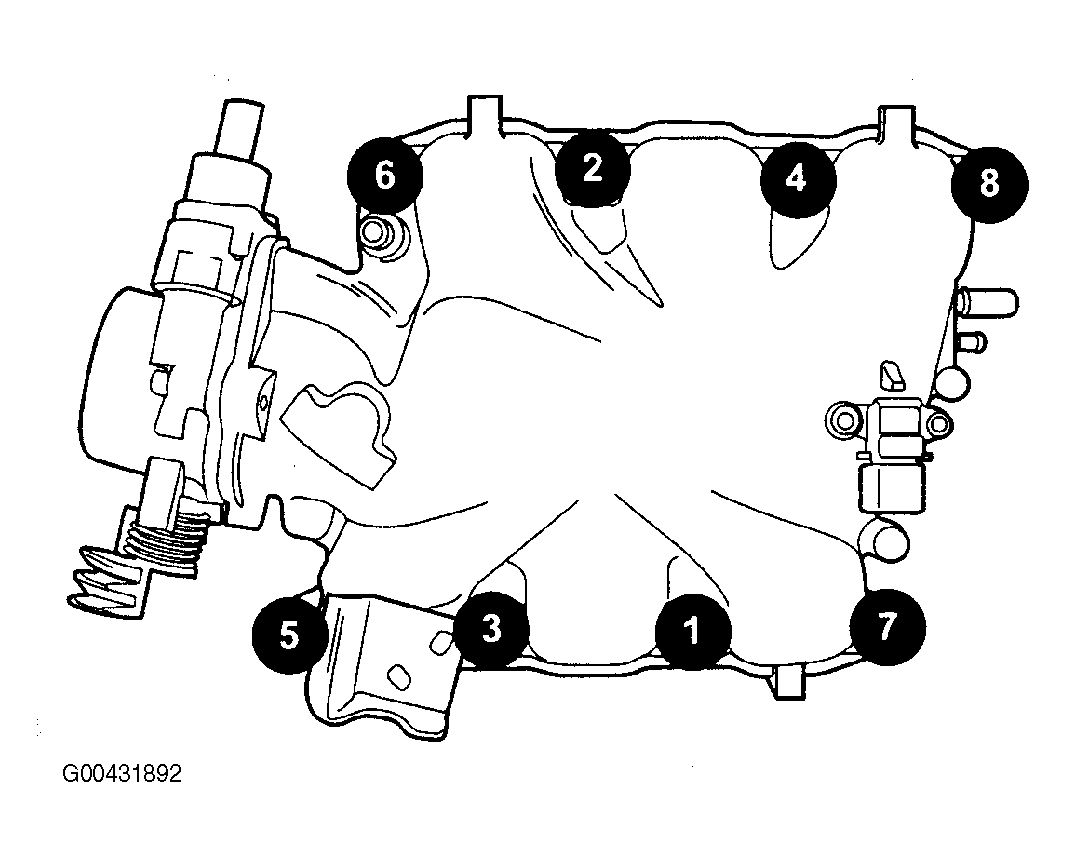

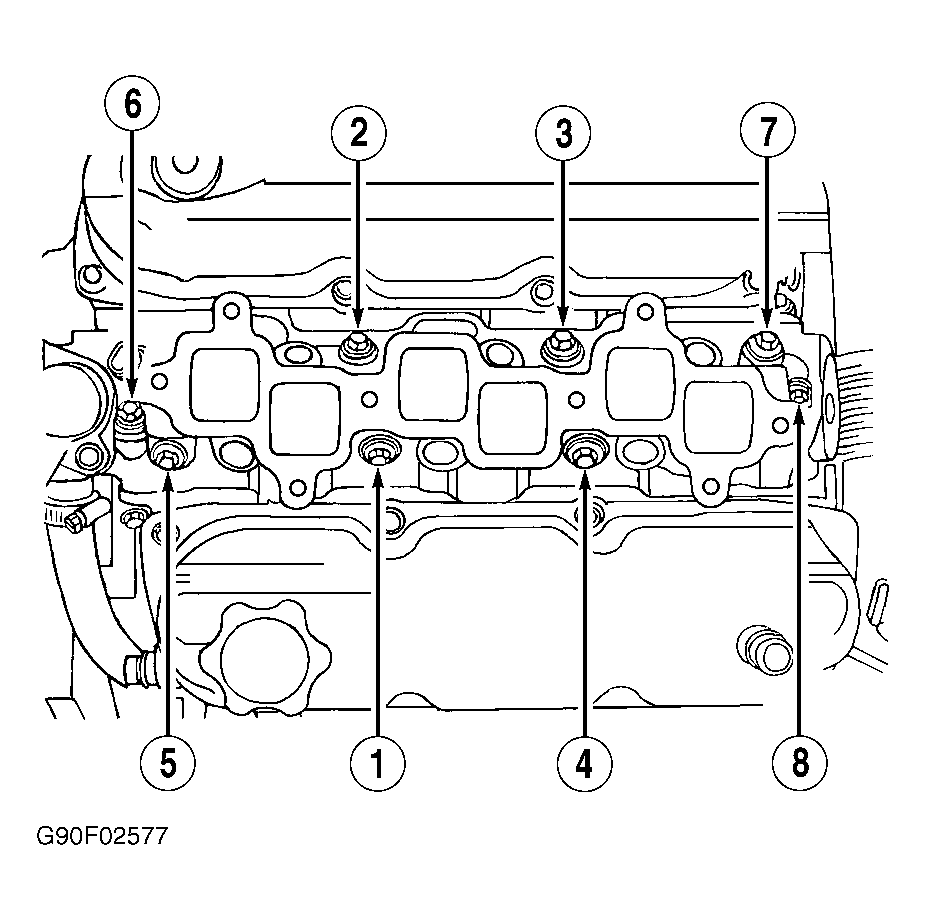

| Intake Manifold Bolt |
| Step 1 |
|
| Step 2 |
16 (22) |
| Step 3 |
16 (22) |
| Intake Manifold Brace-To-Cylinder Head Bolt |
40 (54) |
| Left Engine Mount (Flexplate Side) |
| Through-Bolt |
55 (75) |
| At Frame Rail Bolt |
50 (68) |
| Main Bearing Cap Bolt |
| Step 1 |
30 (41) |
| Step 2 |
Additional 1/4 Turn |
| Main Bearing Cap Cross Bolt |
45 (61) |
| Oil Pan Drain Plug |
20 (27) |
| Oil Pump Pick-Up Tube Bolt |
21 (29) |
| Right Engine Mount (Timing Chain Side) |
| Through-Bolt |
110 (149) |
| To Side Rail Bolt |
50 (68) |
| Vertical Bolt/Nut |
75 (102) |
| Rocker Arm Shaft Bolt |
21 (29) |
| Rod Bearing Nuts |
| Step 1 |
40 (54) |
| Step 2 |
Additional 1/4 Turn |
| Spark Plug |
20 (27) |
| Thermostat Housing Bolt |
21 (28) |
| Timing Chain Cover Bolt |
| 8-mm Bolt |
20 (27) |
| 10-mm Bolt |
40 (54) |
| Torque Converter-To-Flexplate Bolt |
55 (75) |
| Transaxle-To-Cylinder Block Bolt |
75 (102) |
| Vibration Damper Bolt |
40 (54) |
| Water Pump Pulley Bolt |
21 (29) |
| Wheel Lug Nut |
95 (129) |
| INCH Lbs. (N.m) |

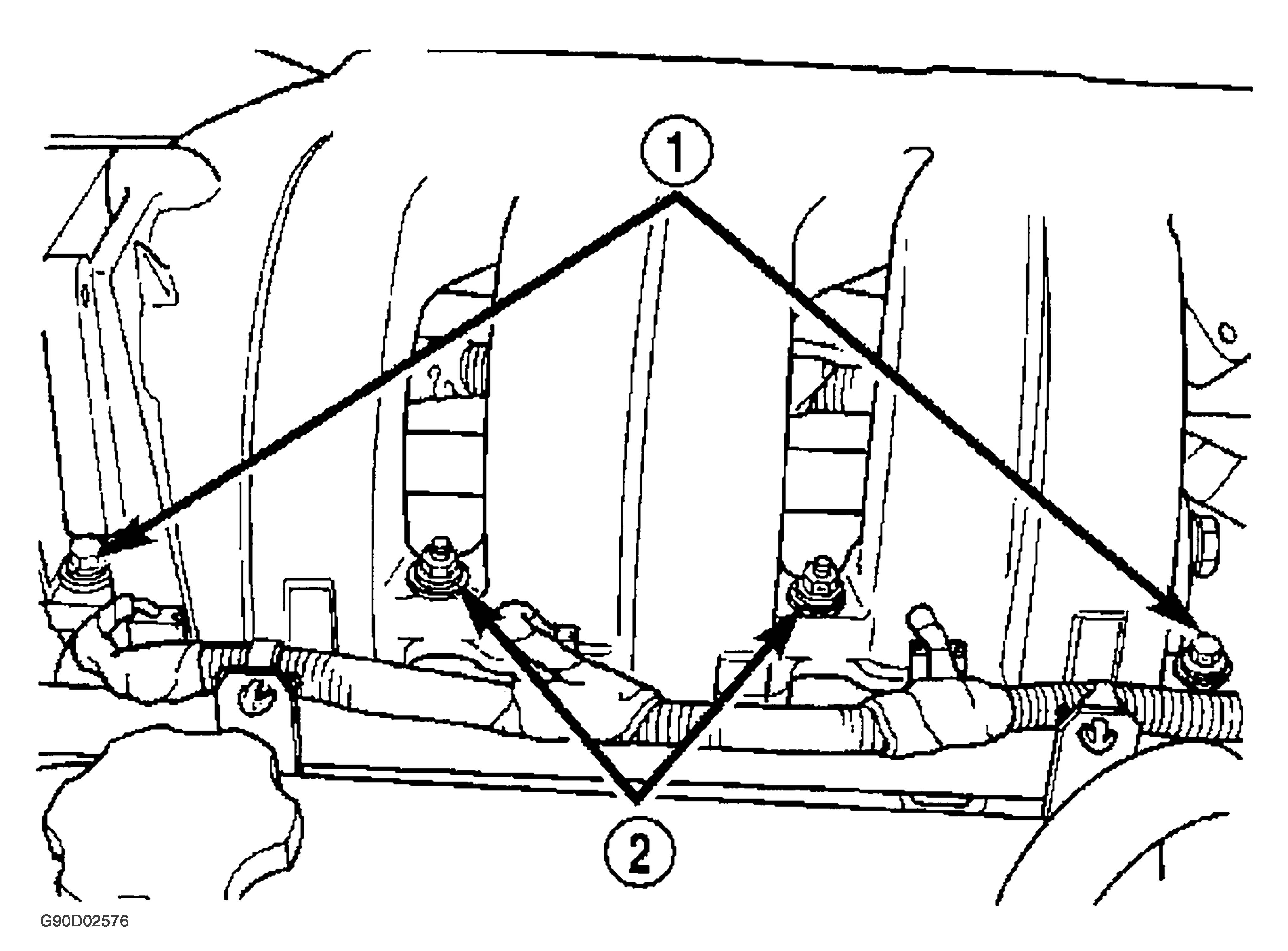

| Air Intake Plenum Bolt |
| 2000 |
250 (28) |
| 2001 |
105 (12) |
| Camshaft Position Sensor Bolt |
105 (12) |
| Camshaft Thrust Plate Bolt |
105 (12) |
| Crankshaft Rear Oil Seal Retainer Bolt |
105 (12) |
| Fuel Rail Bolt |
195 (22) |
| Ignition Coil Mounting Bolt |
105 (12) |
| Intake Manifold Gasket End Seal Bolt |
105 (12) |
| Oil Pan Bolt |
105 (12) |
| Oil Pump Cover Bolt |
105 (12) |
| Valve Cover Bolt |
105 (12) |
| Valve Lifter Yoke Retainer Bolt |
105 (12) |
| Water Pump Bolt |
105 (12) |
