Fuse Block Fuses

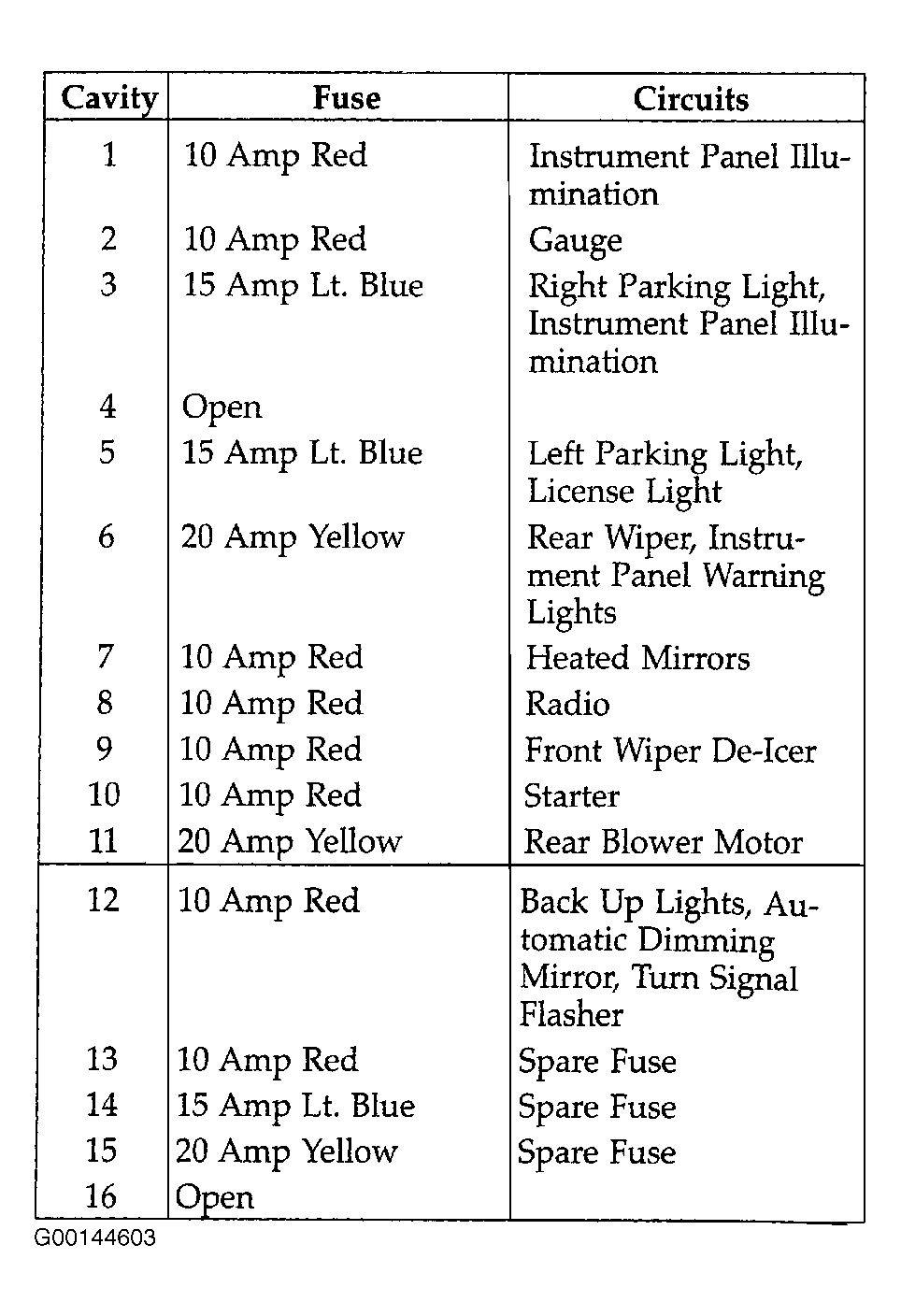

Fig 1: Identifying Interior Fuse Block Fuses

G00144603

Courtesy of CHRYSLER CORP.
