Test N: Remote Controls Inoperative

Possible Causes:

• No Response CCD Bus Failure
• Radio Control Harness DEF Open
• Radio Control MUX Circuit Shorted
• Remote Control Switch Defective
• MUX Control Clockspring Defective
• Radio Control Ground Circuit To BCM Open
• Radio Control MUX Circuit Open
• Radio MUX Control Circuit DEF
• Body Control Module Defective

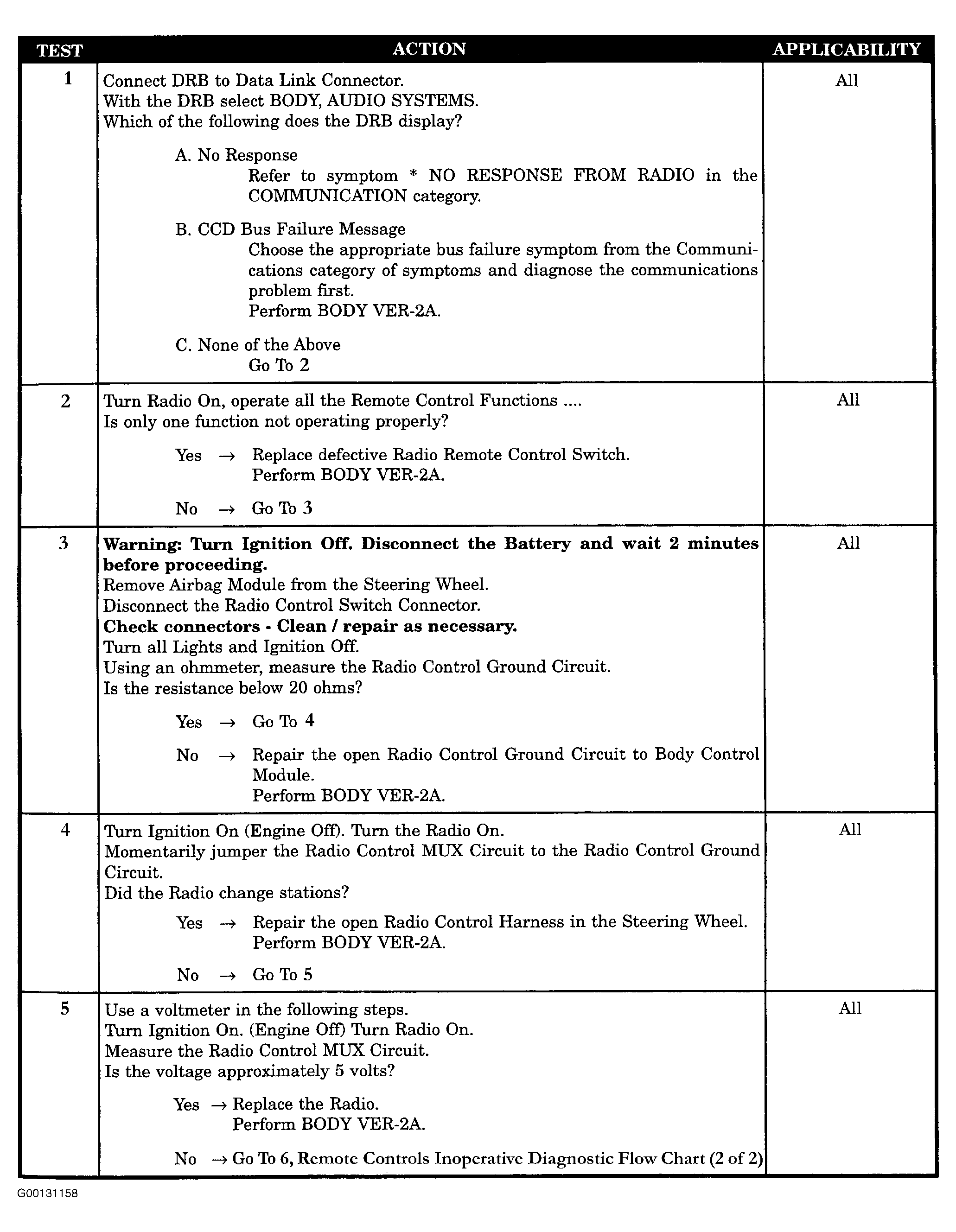

Fig 1: Test N: Remote Controls Inoperative - Steps 1-5

Courtesy of CHRYSLER CORP.

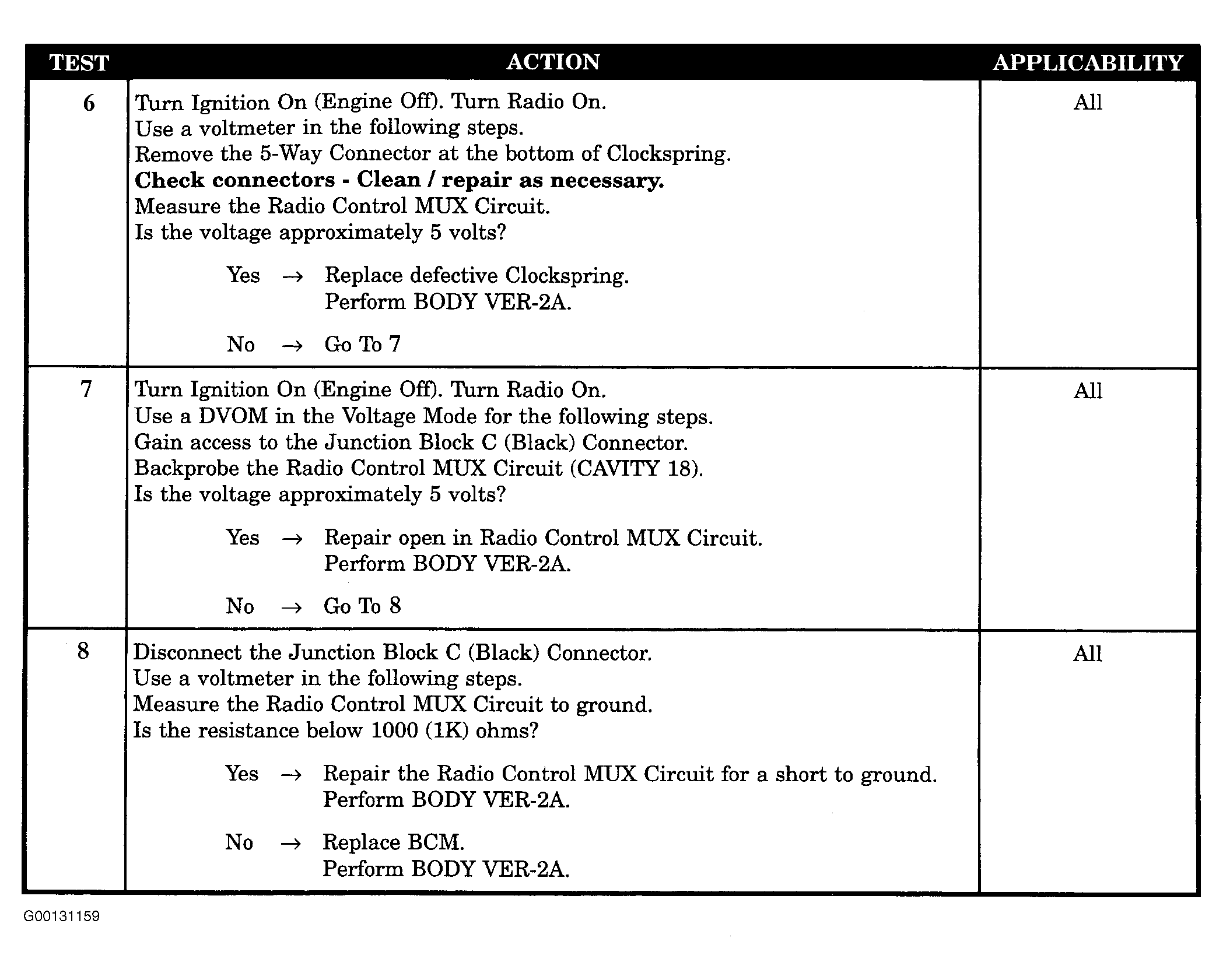

Fig 2: Test N: Remote Controls Inoperative - Steps 6-8

Courtesy of CHRYSLER CORP.
